Guangzhou Skytone Audio Co., Limited >> Prx615m Active Loudspeaker Cabinet Box Powered Speaker

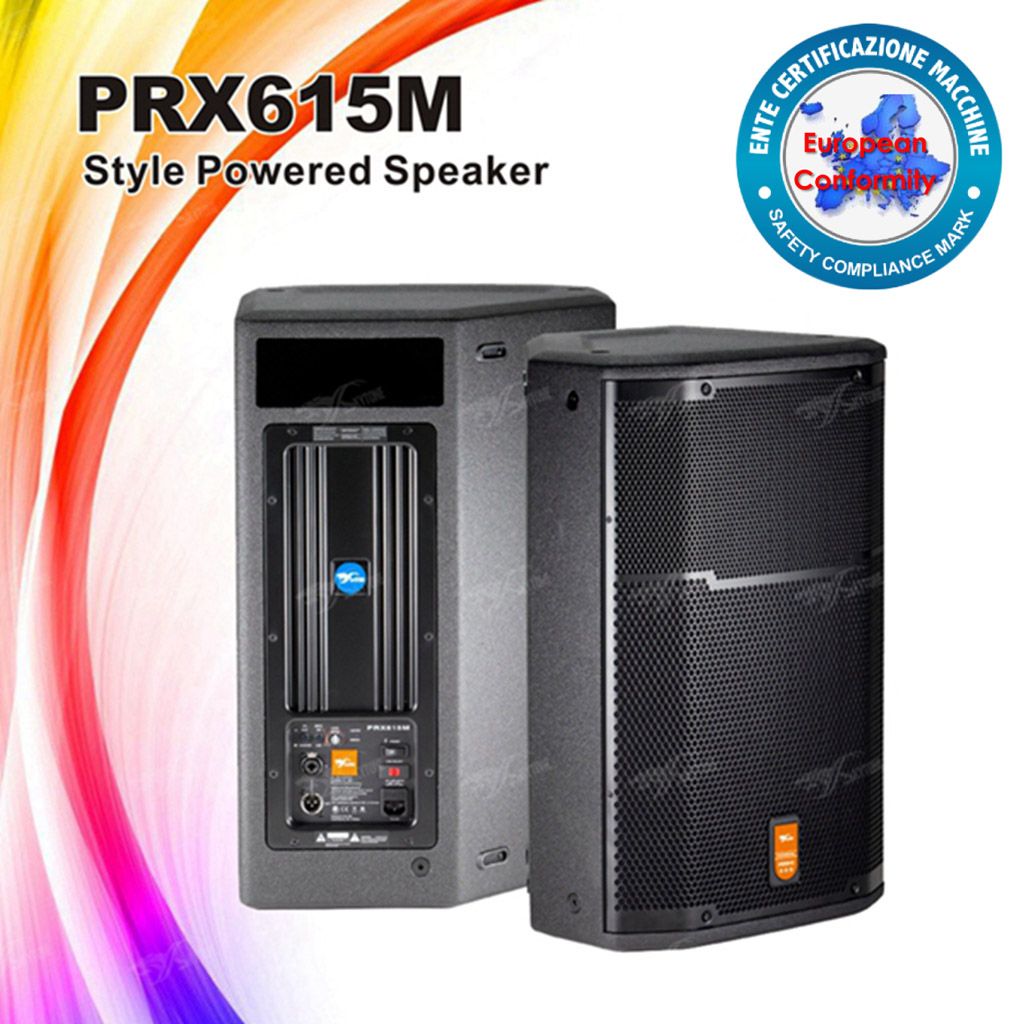

Prx615m Active Loudspeaker Cabinet Box Powered Speaker
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 2/Piece |
| Pay Type: | T/T,Western Union,Money Gram |
Prx615m Active Loudspeaker Cabinet Box Powered Speaker
15" active speaker
self-powered speaker
active speaker
professioanl speaker
pro audio
The 2-way 15" is the most recognizable form of portable PA loudspeakers and offers the perfect balance between size and performance. The PRX615M truly is an exception; It's small, light weight, versatile and powerful.
Features:
Maximum SPL Output 135 dB peak
380 mm (15 in) top quality ferrite magnet aluminum frame woofer
44 mm (1.7 in) ferrite magnet compression driver
650 Watt Class-D digital amplifier
DSP input section with limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
Professional XLR line and ¼ in Mic/Instrument inputs, with loop-through
Integrated 36 mm dual-angle pole mount socket
America imported environmental polyurea coated plywood construction
Large glass-filled nylon handlebar with a fine tuned ergonomic rubber grip for maximum comfort
8 M10 Suspension points and 1 pullback point
Application:
The two-way 15 in is the most recognizable form of portable PA loudspeaker and offers the perfect balance between size and performance. The PRX615M truly is an exception; it is small, light weight, versatile and powerful. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJs when portability is key, or, when hung by the suspension points, an exceptional light-duty installation speaker. All PRX600 Series speakers were designed to excel in the real world of sound reinforcement where challenging audio environments, high ambient noise levels and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, using only a pair of speakers, the PRX615M delivers the optimum balance. For live music, recorded music playback and speech, the user has the option of tailoring the EQ, 'flat' for speech intelligibility, and 'boost' for enhanced bass and crisp highs in recorded music playback. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications. Coupled with a PRX600 sub-woofer the system becomes an incredibly efficient, loud, full-range sound system.
The PRX615M is comprised of a 380 mm (15 in) high quality ferrite magnet aluminum frame woofer, a 44 mm (1.7 in) ferrite magnet compression driver mounted to a 90° by 50° horn, all driven by 650 watt Class-D power amplifier.
The amplifier input panel offers XLR or ¼ in jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.
All PRX600 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, lightweight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by America imported environmental polyurea finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from lightweight, glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
| Specification of PRX615M 15 inch self powered speaker | |
| Model | PRX615M |
| System Type | Self powered 15", two-way, bass-reflex |
| Maximum SPL Output | 135 dB (Full Range) peak; 134 dB (Monitor) peak |
| Frequency Range (-10 dB) | Full Range: 45Hz-19 kHz Monitor (vertical orientation): 55Hz-19 kHz Monitor (monitor orientation):48Hz-20 kHz |
| Frequency Response (±3 dB) | Full Range: 54Hz-18 kHz Monitor (vertical orientation):75Hz-18.5 kHz Monitor (monitor orientation):60Hz-18kHz |
| Input Connectors | Balanced XLR / 1/4" combo jack with XLR loop through |
| Input Impedance | 20K ohms (balanced), 10K ohms (unbalanced) |
| Signal indicators | Limit: Red LED indicates limiter active condition Green LED indicates signal present |
| EQ | Presets for use in Main and Monitor position |
| Crossover Frequency | 1.8 kHz |
| Amplifier | class D |
| Power Rating | 650W |
| LF Driver | 1 x 15 inch top quality ferrite magnet woofer; 550Watts,8ohm |
| HF Driver | 44mm dia diaphragm tweeter |
| Coverage Pattern | 90° x 50° nominal |
| Directivity Index (DI) | 10.0 dB |
| Directivity Factor (Q): | 10 |
| Enclosure | 18 mm plywood |
| Suspension/ Mounting | Dual 36 mm pole socket 8 x M10 Suspension Points 1 x M10 Pull-Back Point |
| Transport | Integrated handle with backing cup |
| Finish | Polyurea Finish |
| Grille | Powder coated, black, 16-gauge perforated steel with acoustically transparent foam |
| Dimensions | 660 mm x 429 mm x 414 mm |
| Net Weight | 35KG |
| Packing size (carton) | 53*55*75cm |
| Gross Weight (carton) | 41KG |
| Prod Model: | PRX615M Powered Speaker |
|---|---|
| Model Name: | Prx615m |
| Type: | Active |
| Hf: | 1 × 1.5" Diaphragm |
| Lf: | 1×15" Woofer |
| Frequency Response: | 54 Hz - 18K Hz |
| Power Rating: | 650 W |
| Impedance: | 8 Ohms |
| Coverage Pattern: | 90o X 50o Nominal |
| Sensitivity: | 96dB |
| Maximum Spl: | 135 dB |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | 2.0 Channel |
| Speaker Material: | Wood |
| Certification: | RoHS |
| Monitor: | LED Screen |
| THD: | <0.005% |
| Application: | Professional Performance |
