Jiangmen Wonder Industrial Co., Ltd. >> Ral9003 White Sand Texture Powder Coating for Iron Bookshelf

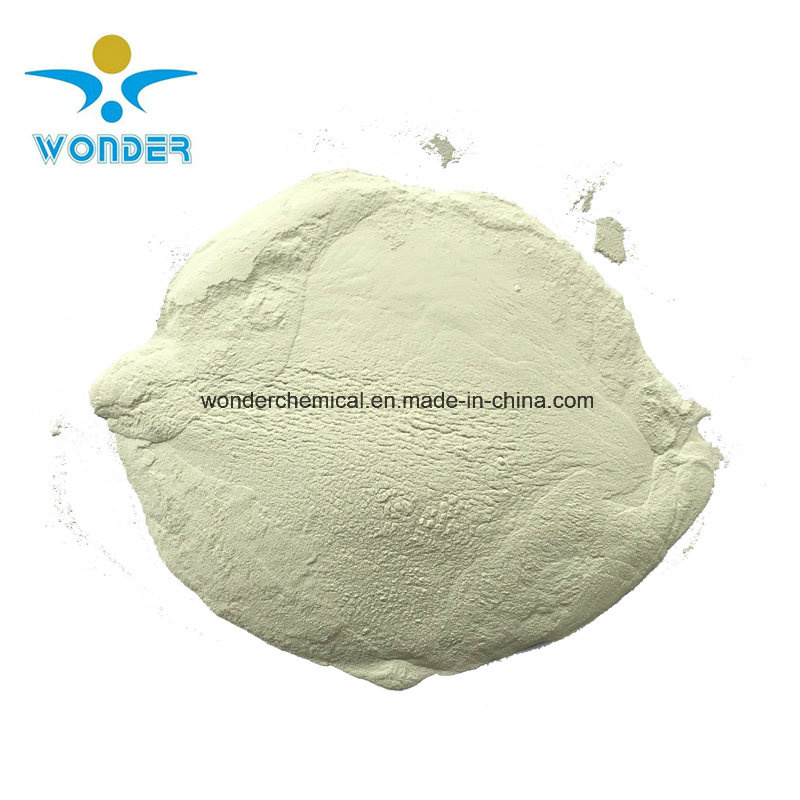

Ral9003 White Sand Texture Powder Coating for Iron Bookshelf
| Price: | US $ 2.35-2.98KG |
|---|---|
| Min Order: | 500KG |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Product Details | |
| Type | RAL9003 White Sand Texture Powder Coating For Iron Bookshelf |
| Color | RAL9003 White |
| Surface Finish | Sand Texture |
| Gloss level | 10%±5% |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 6-8 square meters per Kg at 30-90 μm film thickness |
| Film thickness | 50-70um |
| Application Recommendation | |
| Application Voltage | 40-60 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 200ºC X 10min |
| Powder coated Film Mechanical Properties | |
| Adhesion | Cross-cut(2mm), no loss of adhesion |
| Impact Resistance | Direct impact 50kg/cm |
| Pencil Hardness | 2H |
| Cupping Test | 6mm Mandrel |
| Bending Test | 5mm |
| Powder Coated Film Chemical Resistance | |
| Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
| Acid Resistance | 5% HCl for 48 hours DIP test - No change |
| Alkali Resistance | 5% NaOH for 48 hours DIP test - No change |
| Storage Stability | |
| Store in ventilated, dry, clean room, temperature < 25ºC | |
| Relative humidity 50-65% | |
| Away from direct sunlight, fire, heat | |
| For best performance, use within 6 months | |
The series that we can offer:
| Gloss | 1. High gloss(above 80%), semi gloss(40-79%), matt gloss(5-39%) and no gloss(below 10°) 2. Gloss and texture can be customized as clients require |
| Curing Condition | 1. Standard curing (200ºC×10min) 2. Lower temperature curing (180ºC×15min) |
| Color | 1. RAL & Pantone Colors are available 2. Colors can be customized as clients require |
| Standard | Special standards of product are available according to clients' requirements, e. G. RoHS standard, EN-71, FDA, LFGB, etc. |
| Property | Excellent physical performance in hardness, flexibility and adhesion...Good mechanical properties, outstanding heat resistance, fine corrosion, weather and chemical resistance. |
| Storage | 1. The product can be stably stored for at least half year when kept in closed containers in a dry place at temperature below 25°C. 2. Keep it away from fire, heat and direct sunlight. 3. Avoid rains and exposure to sunshine during shipment. |
Production Process
1. Mixing the raw materials
2. Stiring
3. Extruding
4. Cooling
5. Mincing
6. Grinding
7. Packing
8. Loading
Our Factories
1. Production workshop set up in 1989, leading powder coating supplier with rich experience in China.
2. Four factories in total. Three are Powder Coating Production Base, one is Nano-Dryplating Spraying Base.
3.16 Production Lines. 5 Bonding Lines. 9 Sample Lines.
4. Annual Capacity reaches 10, 000 Tons.
5. Nano-Dryplating Silver Chrome Effect Powder Coating is identified as Guangdong High-Tech Product.
6. Oversea Countries: Sweden, America, Turkey, Russia, Guatemala, Peru, Pakistan, UAE, Vietnam, Sri Lanka, etc,
7. Native Cooperative Clients: MEDIA, GREE, KELON, DAYANG.
Why Choose Us?
1. Quatlity Control. 24 cabins to keep sample powder of each batch production. The quality can be traced within 2 years if any problem occurs.
2. Various Products. Thousands of colors. Nano Dray-Plating Colors. Metallic Silver Gold Effects. Special sand, wrinkle, hammer vein texture.
3. Technical Support. Advice on coating line setup, integrated solution on coating. Professional production tracking, punctual delivery. Quality tracking system. Regular follow-up.
FAQ
Q1. Can I have a sample order for powder coating?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for inspection and customs declaration.
Q3. Do you have any MOQ limit for powder coating?
A: Low MOQ, 1-2kg sample powder checking is available.
Q4. How to proceed an order for powder coating?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer professional after-sale service for every customer.
| Prod Model: | EP-W |
|---|---|
| Gloss: | 10% |
| Thickness: | 50-70um |
| Hardness: | 2h |
| Adhesion: | 0 Grade |
| Impact Resistance: | 50kg/Cm |
| Appearance: | Powder |
| Paint Film Property: | Antiseptic Paint |
| Method: | Spray |
| Level: | Finish Coat |
| Certification: | Reach, FDA, En71 |
| Components: | Film Forming Matter |
| Formation Mechanism: | Conversion Type |
| Substrate: | Metal |
| Main Raw Material: | Epoxy/Polyester |
| Color: | Ral9003 White |
