Anhui Aikefa CNC Technology Co., Ltd. >> Rotary -Flat Multi-Head Spindle Engraver 2018

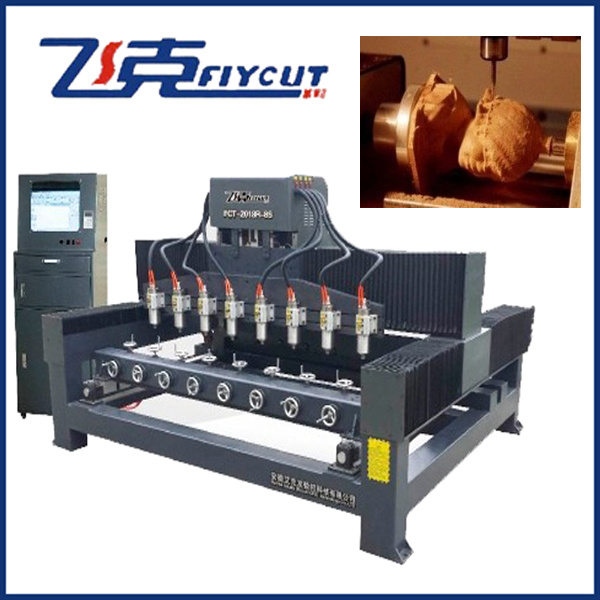

Rotary -Flat Multi-Head Spindle Engraver 2018
| Price: | US $ 7200set/sets |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set/sets |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.
Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.
Technical Parameters:
Model | FCT-7090C&W-4S | FCT-1618C&W-4S | FCT-1625C&W-4S |
| Rotary diameter | 230mm | 230mm | 230mm |
| Rotary length | 800mm | 1300mm | 2000mm |
| Flat working size | 700×900×200mm | 1600×1800×200mm | 1600×2500×200mm |
| Spindle power | Water cooling 1500W×4 | Water cooling 1500W×4 | Water cooling 2200W×4 |
| Spindle rotate | 6000--2400rpm | ||
| Motor driver | Chinese servo motor and Japan servo motor is optional | ||
| Tool diameter | 3.175,4,6mm | ||
| Machine structure | Industry square tube structure | ||
| Transmission | XY ball screw, Yhigh accuracy gear rack | ||
| XYZ rails | PMI square rails | ||
| Dust-proof system | XYZ high quality dust cover | ||
| Mechanical accuracy | less than 0.03/300mm | ||
| Engraveing speed | 8000mm/min | ||
| Data transmission | PC-connection directly | ||
| Support format | G code or HPGL | ||
| Working voltage | AC220V/50Hz or 380V/50Hz | ||
| Net weight | 600kg | 100kg | 1200kg |
The reason that you choose us :
1. One year warranty for the whole machineand maintenace for lifetime.
2. Free installation,testing,training before shipping .
3. Advice for the best solutions for your requirements.
4.Meet CE, ISO9001 standards.
5. High precision with reasonable price.
Any question,please contact us with no hesitation:
Alice (overseas department )
Cell phone:+86 13966703473
| Prod Model: | FCT-2018C&W-6S |
|---|---|
| Markets: | North America,Southeast Asia,Mid East |
| Type: | Engraving Router |
| Spindle Layout: | Horizontal |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Customized: | Customized |
| Condition: | New |
| Spindle Number: | Six Spindles |
