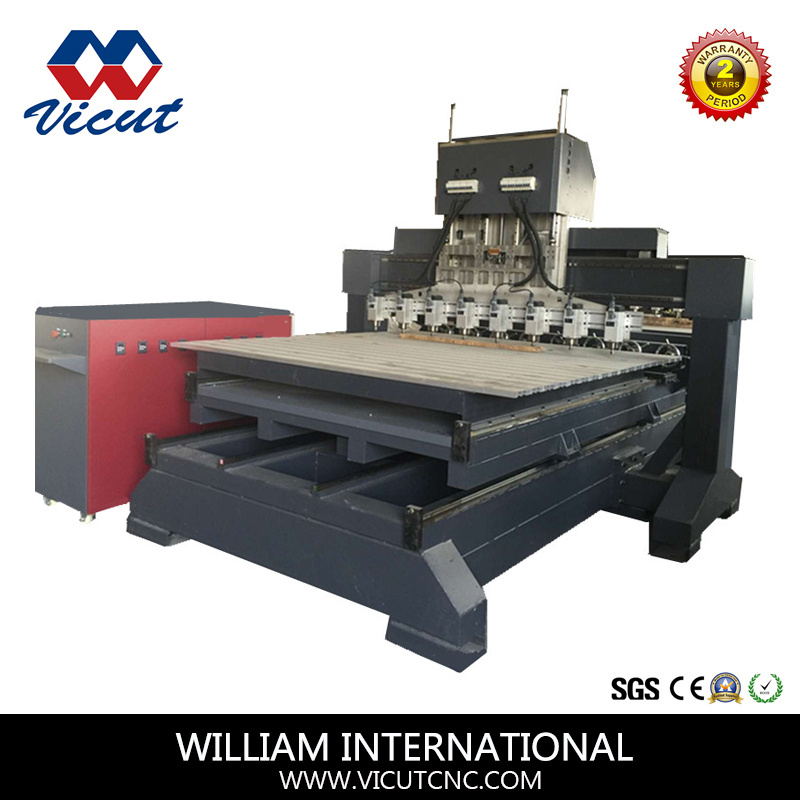

Rotary Wood Engraver, CNC Router Machine for Wood Engraving Vct-TM2515fr-8h
| Price: | US $ 11000-29000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Table Move Flat & Rotary CNC Carving machine
Features:
1. Using fixed-frame gantry column, with cement inside the steel tube, table move working mode instead of gantry move, ensure more stable and less vibration.
2. Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
3. Configuring multi-adjustable machine feet touch the ground, easy to adjust the balance of the machine.
4. This machine has two general functions: 2D engraving & cutting on panel material and 3D rotary engraving column material.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:

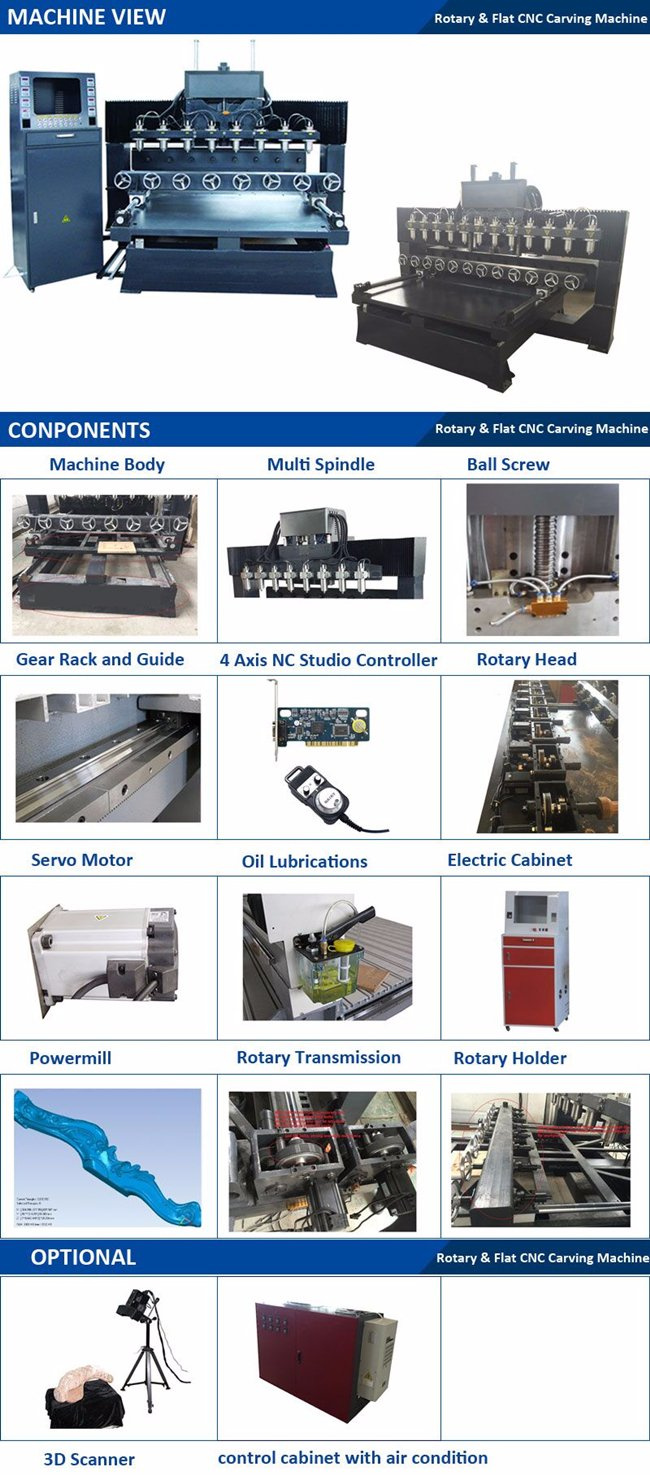

Details:
1. Base Frame: Table move machine structure, with cements inside of gantry holder, increases the total weight. The heavier base frame is made of heavy-duty tubular steel that is welded, fixed with precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true steady over the operational life of the machine.
2. Multiple spindle and holder: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc; we offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Tools diameter are 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3. Ball screw transmission: We use precision TBI ball screw 4010 for XYZ AXIS, ensures high accuracy.
4. NC Studio 4 AXIS Controller: 85A model. PC based NC Studio Controller with friendlier Human& machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control.
5. Square rails: Original Taiwan PMI linear guide square rails for XYZ axis, carefully installed and regulated by experienced worker with special purpose instrument, and this assures smooth motion and long term reliability.
6. Rotary holder: Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters; we can put different number of rotary axis according to specified requirement.
7. Motor and Driver: we use 5 sets Panasonic /Schneider servo motors and drivers, including 2 sets support 8 rotary,3 motors for XYZ axis.
8. Central oil Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
9. Control Cabinet: All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
10. 4 AXIS Software: You can use power-mill software to make processing of 3D files, which was scanned with 3D scanner. We can make 4 axis movements(AXYZ axis moves at the same time).
Optional:
1. 3D Scanner: with the 3D scanner you can scan any objects which you want to make by machine, input the scan file generated by scanner to computer, and process it with postprocessor software, saved it as G code which can be recognized by CNC router.
2. Control cabinet with air conditioner: the air conditional installed on the control cabinet, ensure the machine can be used in tropical area countries to reduce the temperature inside of the cabinet, avoid damage of the electric components
Features:
1. Using fixed-frame gantry column, with cement inside the steel tube, table move working mode instead of gantry move, ensure more stable and less vibration.
2. Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
3. Configuring multi-adjustable machine feet touch the ground, easy to adjust the balance of the machine.
4. This machine has two general functions: 2D engraving & cutting on panel material and 3D rotary engraving column material.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:
| Model | VCT-TM2515FR-8H | VCT-TM2523FR-10H |
| Dimension | 3000×1900mm(9.8'x6.3') | 3000×2700mm(9.8'x8.9') |
| 2D Working Size | 2500×1500×250mm(8.2'x4.9'x0.8') | 2500×2300×250mm(8.2'x7.5'x0.8') |
| Spindle Power | Water cooling 2200W×8PCS | Water cooling 2200W×10PCS |
| No. Of Rotary | 8 PCS | 10 PCS |
| Motors & Drivers | XYZ axes use Panasonic/Schneider servo motor, A axis use Leadshine hybrid servo | |
| Rotary Transmission | One hybrid servo motor drive one rotary with Belt box transmission ( Gear box transmission is optional) | |
| 3D Rotary Working Size | 1100mm(length)*250mm(rotary diameter) | 2000mm(length)*250mm(rotary diameter) |
| Air Cylinder Support | Yes (300MM long air cylinder) | |
| Oil Lubrication system | Yes | |
| Tool Diameter | 4/6/8/12mm | |
| Body Structure | Thick steel tube welding | |
| XYZ Transmission | XYZ TBI 4010 ball screw | |
| Guiding Rails | XYZ Taiwan PMI Linear Square Rails | |
| Reposition Accuracy | <0.03/300mm | |
| Max Engraving Speed | 15000mm/m | |
| Spindle Speed | 6000~240000rpm | |
| Controller | 4 axis NC Studio Controller with handle wheel ( Use computer to control the machine) | |
| Format of Instruction | G code or HPGL | |
| Voltage | 380V/60Hz or 220V/50HZ | |
| Weight | 3000KGS | 3500KGS |
| Packing Size | 3000×2200×2200mm(15CBM) | 3000×2200×2200mm(15CBM) |
Details:
1. Base Frame: Table move machine structure, with cements inside of gantry holder, increases the total weight. The heavier base frame is made of heavy-duty tubular steel that is welded, fixed with precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true steady over the operational life of the machine.
2. Multiple spindle and holder: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc; we offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Tools diameter are 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3. Ball screw transmission: We use precision TBI ball screw 4010 for XYZ AXIS, ensures high accuracy.
4. NC Studio 4 AXIS Controller: 85A model. PC based NC Studio Controller with friendlier Human& machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control.
5. Square rails: Original Taiwan PMI linear guide square rails for XYZ axis, carefully installed and regulated by experienced worker with special purpose instrument, and this assures smooth motion and long term reliability.
6. Rotary holder: Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters; we can put different number of rotary axis according to specified requirement.
7. Motor and Driver: we use 5 sets Panasonic /Schneider servo motors and drivers, including 2 sets support 8 rotary,3 motors for XYZ axis.
8. Central oil Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
9. Control Cabinet: All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
10. 4 AXIS Software: You can use power-mill software to make processing of 3D files, which was scanned with 3D scanner. We can make 4 axis movements(AXYZ axis moves at the same time).
Optional:
1. 3D Scanner: with the 3D scanner you can scan any objects which you want to make by machine, input the scan file generated by scanner to computer, and process it with postprocessor software, saved it as G code which can be recognized by CNC router.
2. Control cabinet with air conditioner: the air conditional installed on the control cabinet, ensure the machine can be used in tropical area countries to reduce the temperature inside of the cabinet, avoid damage of the electric components
| Prod Model: | VCT-TM2515FR-8H |
|---|---|
| Working Size: | 2500*1500*250mm(8.2'*4.9'*0.8') |
| Net Weight: | 3000kgs |
| Max Speed: | 15000mm/Min |
| Resolution: | <0.03/300mm |
| Spindle Power: | Water Cooling 2.2kw*8PCS |
| Spindle Rotation: | 6000~24000rpm |
| Xyz Transmission: | Xyz Tbi 4010 Ball Screw |
| Controller: | 4 Axis Nc Studio Controller with Handle Wheel( Use |
| Drive System: | Panasonic/Schneider Servo Motors |
| File Format: | G Code or Hpgl |
