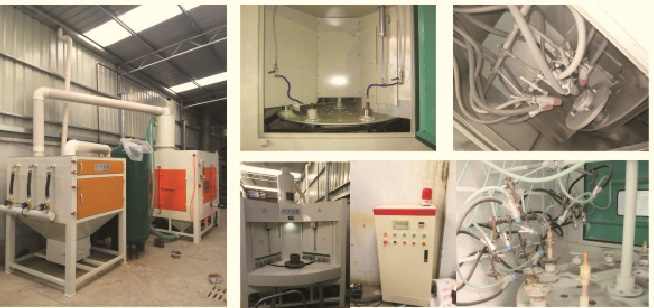

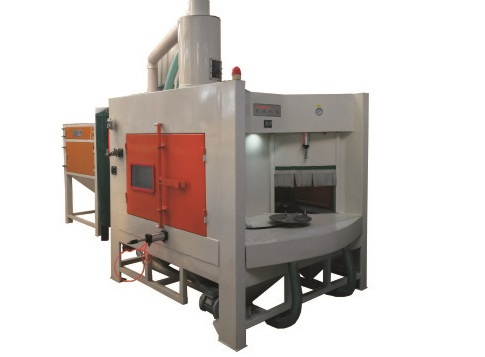

Rotating Disc Sand Blasting Machine
| Price: | US $ 1700-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |
rotating disc sand blasting equipment
Product Name: colo-1719-12A intermittent blasting machine
Features
1, large turntable intermittent rotation, small turntable rotation;
2, according to the work of the shape, adjust the position of each sandblasting gun;
3, blasting gun can swing can be fixed-point sandblasting, gun swing speed and small turntable rotation can be frequency control;
4, in addition to the following products, the other can be customized according to customer demand for various types of automated sandblasting equipment and sandblasting production lines.
Adaptation:
It is suitable for mass production of inner and outer surfaces of disc, cylinder and polygon workpiece, such as handicrafts, glass lampshades, non-stick pan, flashlight, baking pan, stainless steel hand basin and communication equipment.
Model (1719-12A): Intermittent automatic sandblasting machine
The main dimensions (mm): 1700 × 1900 × 2350
Dust box size (mm): 1400 × 1400 × 1700
Large turntable size (mm): Φ1400
Number of small turntables: 8
Number of spray guns: 12
Power supply: 380V 50Hz
Separator motor: 380V 50Hz 5500W
Separator air flow: 10 m3 / min
Compressed air source: 2-8bar (kg / cm2
Features
1, large turntable intermittent rotation, small turntable rotation;
2, according to the work of the shape, adjust the position of each sandblasting gun;
3, blasting gun can swing can be fixed-point sandblasting, gun swing speed and small turntable rotation can be frequency control;
4, in addition to the following products, the other can be customized according to customer demand for various types of automated sandblasting equipment and sandblasting production lines.
Adaptation:
It is suitable for mass production of inner and outer surfaces of disc, cylinder and polygon workpiece, such as handicrafts, glass lampshades, non-stick pan, flashlight, baking pan, stainless steel hand basin and communication equipment.
Model (1719-12A): Intermittent automatic sandblasting machine
The main dimensions (mm): 1700 × 1900 × 2350
Dust box size (mm): 1400 × 1400 × 1700
Large turntable size (mm): Φ1400
Number of small turntables: 8
Number of spray guns: 12
Power supply: 380V 50Hz
Separator motor: 380V 50Hz 5500W
Separator air flow: 10 m3 / min
Compressed air source: 2-8bar (kg / cm2
| Delivery Detail: | 7 Working Days |
|---|---|
| Packaging Details: | Plywooden |
| Usage: | Small Hardware Parts |
| Warranty: | 12 Months |
We Specialized in automatic sandblasting machine, manual sandblasting machine, wet sandblasting machine, open mobile type sand blasting machine, shot blasting machine and other surface treatment equipment, our company with advanced production equipment, and testing equipment, and has a group of experienced professional technical personnel, our production process in the procurement of raw materials, finished products, storage and logistics management in strict accordance with the standards of quality management. Company team focused on a variety of surface treatment equipment R & D, we can customize according to customer special requirements of various sandblasting equipment.
Our sandblast product have a wide kinds of variety, complete models, in addition to blasting equipment we wholesale sales of various sandblasting materials and blasting abrasive; , blasting spare parts: Sand blasting guns, spray nozzles, gloves, sandblasting pipe, sandblasting machine and other special fan blasting accessories, sandblasting abrasive: White corundum, brown corundum, glass beads, silicon carbide, silicon carbide, ceramic sand, sand, sand, walnut, stainless steel shot, steel shot, steel cut wire shot etc...
At present we have exported into more than 100 countries, COLO-leader in the sandblast equipment and powder coating equipment in China, we are your worldwide partner in the pre-treatment solution.
We have warehouse USA, we can supply fast delivery and after-sales services in USA, Canada and Mexico also we have sales team that can speak different languages, such as German, Spanish, English, can serve the global user, welcome to visist us or contact with us!
Our sandblast product have a wide kinds of variety, complete models, in addition to blasting equipment we wholesale sales of various sandblasting materials and blasting abrasive; , blasting spare parts: Sand blasting guns, spray nozzles, gloves, sandblasting pipe, sandblasting machine and other special fan blasting accessories, sandblasting abrasive: White corundum, brown corundum, glass beads, silicon carbide, silicon carbide, ceramic sand, sand, sand, walnut, stainless steel shot, steel shot, steel cut wire shot etc...
At present we have exported into more than 100 countries, COLO-leader in the sandblast equipment and powder coating equipment in China, we are your worldwide partner in the pre-treatment solution.
We have warehouse USA, we can supply fast delivery and after-sales services in USA, Canada and Mexico also we have sales team that can speak different languages, such as German, Spanish, English, can serve the global user, welcome to visist us or contact with us!
