Scissor Lifting Platform Table Scissor Lift Table
| Price: | US $ 1500sets |
|---|---|
| Min Order: | 1sets |
| Pay Type: | L/C,T/T,Western Union |
SCISSOR LIFTING TABLE
Hydraulic driven by electric motor and 2 ea piston & cylinder.Good stability, covers a wide range of applications, mainly used where exists some height difference.
Folded inside pit, doesn't occupy any ground space.
Sustain passing of trucks up to 5 tons over it.
Safety Guard Rails (U shape), portable, made of steel square tubes.
Safety locks to avoid sudden fall of platform -under any circumstances - from the adjusted height.
PARAMETERS
| Model NO | LFS20/5720 |
| Lifting Capacity | 2000kg |
| Total Lifting Height | 5720mm |
| Net lifting Height | 5000mm |
| Platform Size | 3000 x2000mm |
| Pit Dimension(Depth x Width x Length) | 720 x 2200 x 3050mm |
| Power Supply | 380V/ 50HZ/ 3 PH |
| Motor Capacity | 4KW |
| Lifting speed | 4-6 m/min |

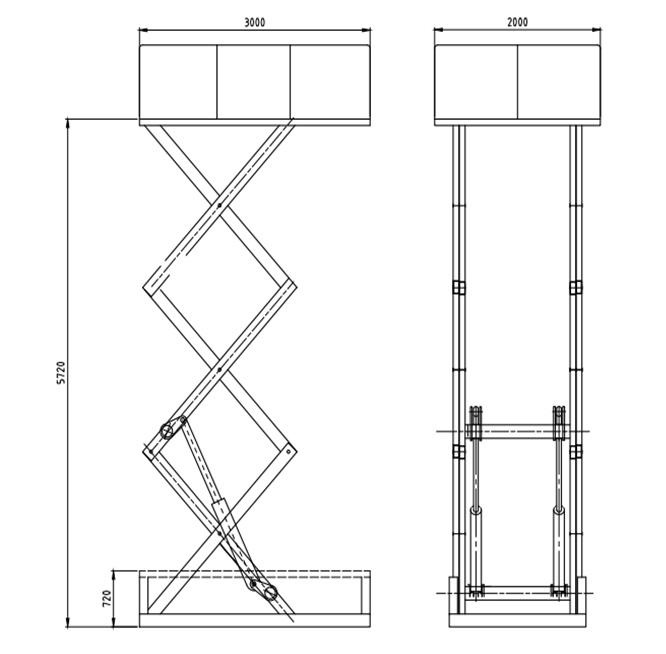

DRAWING
Photos
| Prod Model: | LFS20/5720 |
|---|---|
| Lifting Speed: | 4-6 M/Min |
| Warranty: | 2 Years for Electric Parts, 5years for Steel Frame |
| Safety Lock: | Manual Unlock |
| Power Supply/Motor Capacity: | 380V/ 50Hz/ 3 pH or Customerized |
| Total Lifting Height: | 5720mm |
| Net Lifting Height: | 5000mm |
| Platform Size: | 3000 X2000mm |
| Pit Dimension(Depth X Width X Length): | 720 X 2200 X 3050mm |
| Motor Capacity: | 4kw |
| Type: | Double Cylinder Hydraulic Lift |
| Lifting Capacity: | 2T |
| Certification: | ISO |
| Brand: | GG Lifters |
Qingdao GG Lifters Co., Ltd, an established Factory in Qingdao, China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking and car service lifts offered to our customers worldwide.
Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.
GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.
GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
