Semi Automatic Glass Cutting Table 2515
| Price: | US $ 10000-15000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal |
Introduction
Thanks to advanced foreign technology and imported components, the machine can be used for precise and fast cutting of different shapes of glasses and mirrors in accordance with programmed Auto CAD drawings. Due to good strong steel plates, the machine is featured with rigid structure, which guarantees high cutting precision and fast cutting speed. It can be used to cut different glasses and mirrors used for building, furniture, mirror, round shape, clock and artwork glass etc. It's a good choice for you to use our cutting machine due to its good function, advanced technology and sound cutting performance.
Characteristics
- Mn bridge steel (Q345A ), perfect surface treatment
- Optimized table structure makes sure the stable table, dynamic balance and mechanics intensity perfectly matched
- Cutting pressure automatic adjusted according to glass thickness
- Cutter head 360 degree rotating
- Climbing wheels on the cutter head for protecting the cutter assembly and the glass
- Water proof surface panel, stainless steel side covered, water and deformation resisting
- High quality felt, perfect level, anti-static
- pneumatic mechanical and photoelectric joint locating
| Model | Max. glass size | Thickness | Max. speed | Cutting Precision | Air pressure |
| CNC-2515 | 2500*1500mm | 3~19mm | 140m/min | ≤0.3mm | 0.6~0.8MPa |
,,XY,.CNC,.

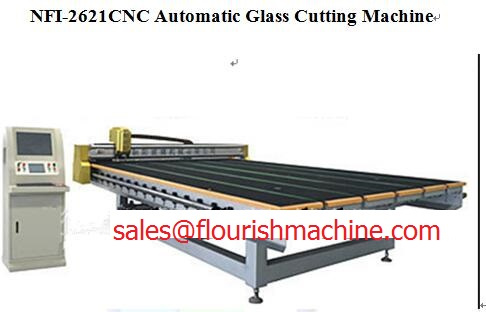

Put glasses onto the cutting table and move glass to the cutting position. The cutting head will move in X and Y axis to imitate cutting, after imitating success, the real cutting will be performed. Its CNC controlled and is driven by advance servo motor.
Machine weight: 1300kg
:≤±0.10mm/m
Parallel: ≤±0.10mm/m
PVC:1.5-3MPa
Table PVB harness: 1.5-3MPa
:15
Cutting precision: 0.15mm
:60/()
Cutting speed: 60m/min
:
Rail: imported rails
:
Electric components: Schneider
:B0HLE
Cutting tool: Germany BOHLE
:
Control system: Xionghong
:CAD,
Software: CAD software, servo motorContact Us
Paul
Sales Manager
Tel.: 0086 2552233485
| Max Cutting Speed (M/Min): | 0-200 (Adjustable) |
|---|---|
| Cutting Accuracy (mm/M): | ± 0.20 |
| Glass Cutting Thickness(mm): | 2-25mm |
| Voltage (V): | 220V/380V (Three Phases) |
| Min. Glass Size: | 20*20mm |
| Overall Dimension: | 4500*2900*1500mm |
| Weight: | 4600kg |
| Type: | Glass Cutting Machine |
| Control System: | PLC |
