Semi Automatic Paper Board Folder Gluer/Corrugated Board Glue Machine
| Price: | US $ 15000-25000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

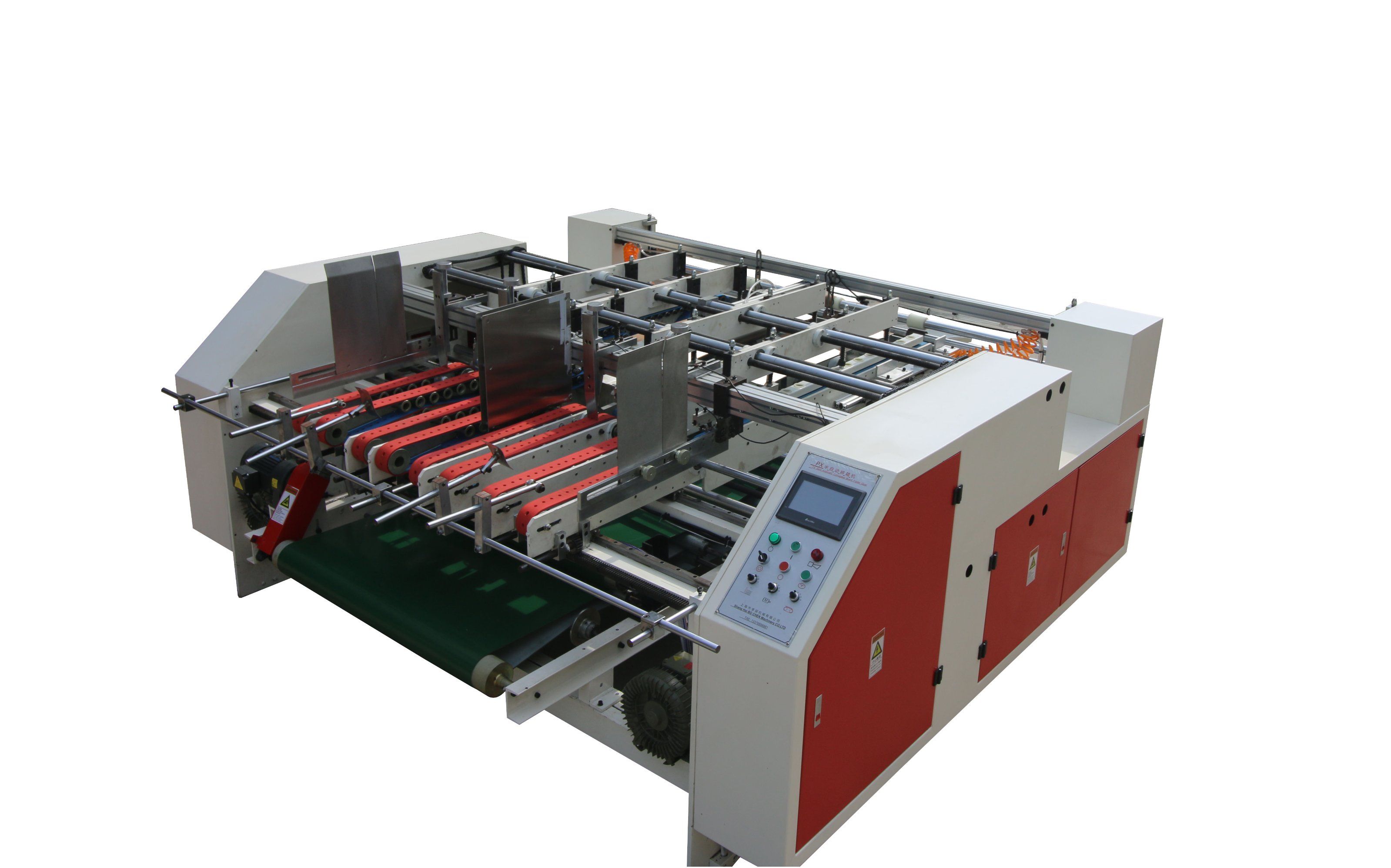

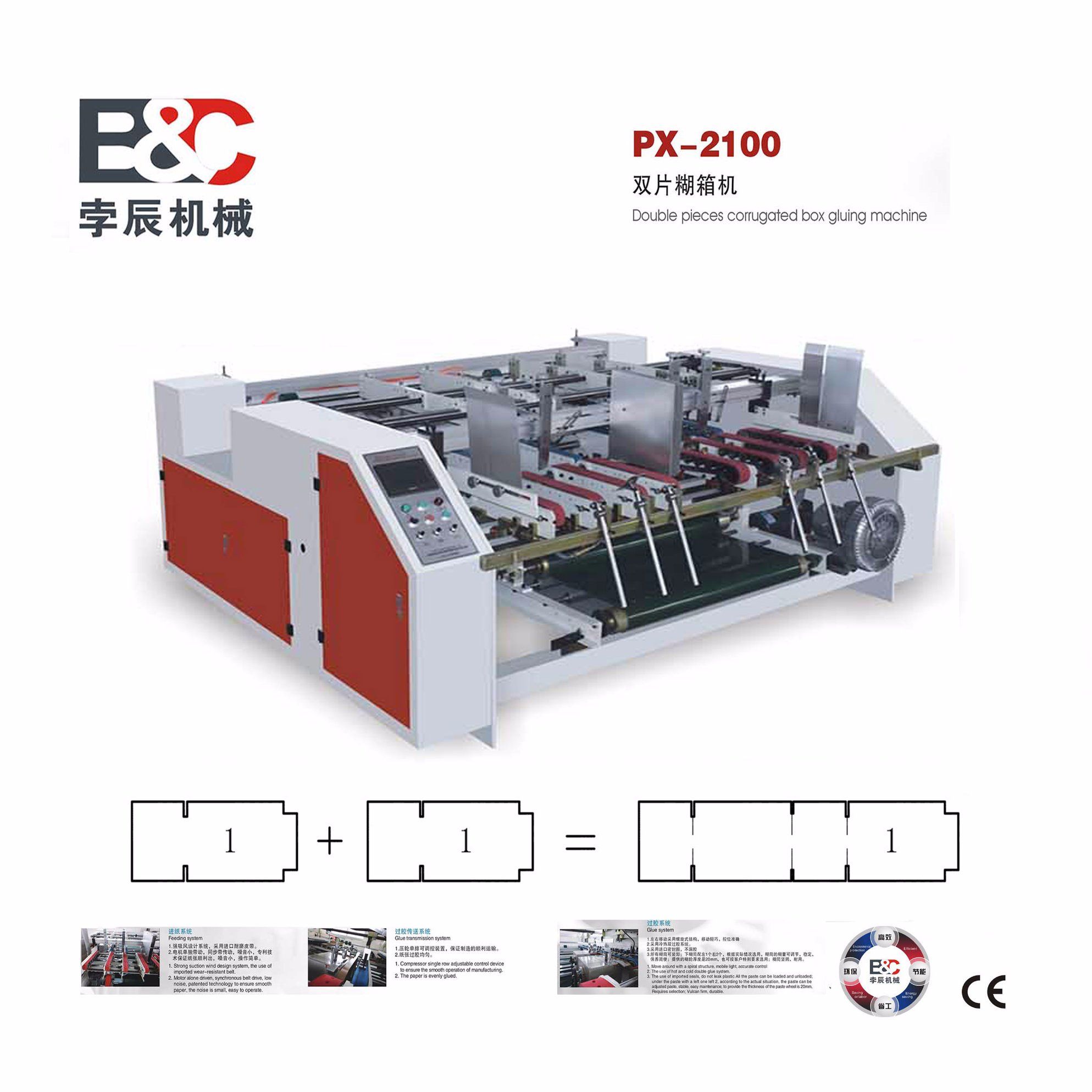

PX-2100 Semi automatic corrugated board folder gluer
Description
The feeding unit of the machine has two paper board stack to hold AB two pieces of papers, which helps to improve the production efficiency. Below adopt the air sucking structure, which is conducive to improve transport efficiency and accuracy.
Connecting unit adopts hot melt adhesive, four side gauge positioning, ensuring accurate register and high precision.
Folding unit adopts manual fold, which resolve the problem of hard to confirm fold place. The overlap margin can be controlled effectively.
The machine can be operated by two person. One stacks papers and collect finished job. The other fold the papers and feed them into compressing belt. The whole machine is of easy operation even for freshman
Specification
The machine is specially used to fold and glue AB papers (2 pcs of corrugated paper) into cartons Present AB carton produce methods: 1. Traditionally manual glue and stick together. 2. Old style folder and gluer glue and then manual stick. With the above 2 methods, labor intensity is high and efficiency is low and the stick precision and quality is hard to control. PUYUAN AB paper folder and gluer resolved the above problems with advanced working method.
Parameter
| Max. finished size(expand) | 2100*1100mm |
| Min. finished size(expand) | 100*100mm |
| Total power | 6kw |
| speed | 0-1200pcs/h |
| Overall dimension | 3100*2900*1500mm |
| N.W. | 1500KG |
Packaging & Shipping
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our Services
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
Company Information
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
*Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
Welcome to visit our factory!
FAQ
1.What is Innovo company machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 7-30 days
4.What is the delivery time?----Within 7-30 days after get the payment.
5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.
7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.
9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.
10Do you have stock product to sell?----Maybe, It depends on which machine you like.
11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before shipping.
12.What's the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via West Union too. You can choose as you like.
We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
Innovo China
| Prod Model: | PX-2100 |
|---|---|
| Warranty: | One Year |
| Delivery Time: | 25 Days |
| Max. Finished Size(Expand): | 2100*1100mm |
| Min. Finished Size(Expand): | 100*100mm |
| Total Power: | 6kw |
| Speed: | 0-1200PCS/H |
| Type: | Ditch Folder Gluer |
| Automatic Grade: | Semi-Automatic Folder Gluer |
