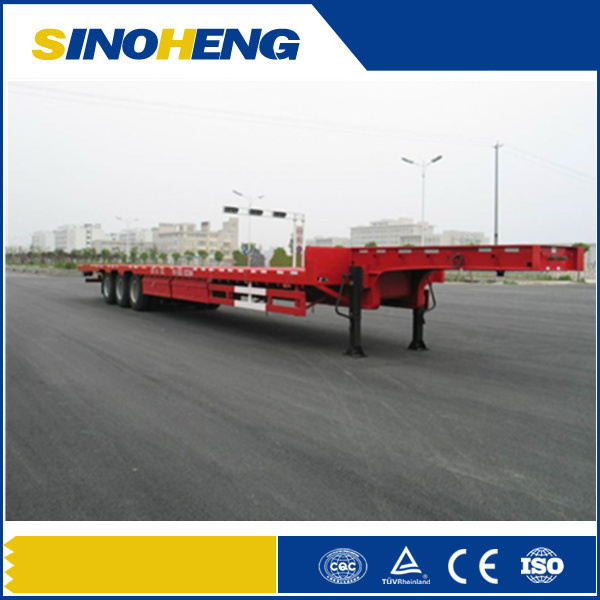

Semi Trailer Manufacturer in Liangshan City

Semi Trailer Manufacturer in Liangshan City
Price: US $ 15000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: flatbed semi trailer
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 30~60tons
Floor: 3-5mm Diamond Plate
Axle Brand: BPW/Fuwa(Optional)
Tire: 10.00r20/ 11.00r20/ 12r22.5
Suspension: Mechanical Suspension
King Pin: 2.0 " or 3.5 " Jost Brand
Support Leg: Jost D200 or Other Size
Painting: White/Red/Blue/Yellow(Optional)
Steel Spring: 10 Pieces
Electrical System: Voltage:24V
Type: Suspension
Towing Pin Material: Carbon Steel
Impeller Type: Rear Semi-open Type
Hook Type: Single
Universal Joint Type: Rigid Universal Joint
Brake Pad Material: Less Metal
Towing Pin Type: Cross Type
Towing Pin Diameter: 50mm
Differential Gear Type: Gear Type
Independent Suspension Type: Cross Arm Type
Axle Number: 3
Tire Number: 12

Product Description

Product Description:
1, We have well experienced in reseaching and developing different trailers: Container trailer, low bed trailer, side wall semi trailer, stake semi trailer, tank trailer and heavy duty trailer etc.
2, High tensile strength steel Q345B for I-beam
3, Axle: German or American style from 12 tons to 20 tons
4, Suspension: Mechanical suspension, air suspension or bogiesuspension.
5, Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
6, King pin: Optional for 2" or 3.5" Kingpin
7, Landing gear: "Jost" landing gear
Side Wall Semi Trailer
AssemblyCompositionSpecification
Optional
DimensionsSize(LxWxH)12450x2500x2180mm
Curb weight7500kg
Loading weight60000kg
ChassisMain beamQ345 Steel; The height of the beam is 500mm; Upper plate is 14mm; Middle plate is 8mm; Downplate is 16mm.
Cross beam16# channel steel
Side beam25# channel steel
King pin2'' or 3.5'' traction pinOptional JOST
Floor3mm diamond steel plate
Fence1.5m steel plate 600mm height, fence 500mm+200mm
Support legChina brand 28Tons (Double speed)
SuspensionTypeCommon mechanicalOptional Air suspension
Steel spring90(W)mm*13(Thick)mm*10 Layer
AxleBrandFuwa(13000kgx3)Optional BPW
Wheel rim9.0-22.5 steel wheel rim
Tire12.00R22.5(12 pcs)Optional 12.00-20
Brake systemBrake chamberWEBCO, 6 big chamber
Brake valveKTL/WEBCO
Brake systeDual line brake systemOptional ABS
OtherLightTail lamp with tum signal, brake light & reflector, side lamp etc.
Landing gear28 Ton manual operating, heavy duty landing gear.Optional JOST
Tool box1 set standard tool box
Spare tire carrier2 pcs
Painting1 coat of anticorrosive prime, 2 coats of final paint.

SINOHENG is an exporter of famous truck and construction machinery, owns the professional technology development team and factory, have done deep studying and analysis for South America, Africa, Asia, Europea, North America and Oceania etc. Various country's markets, offer most suitable design programme to users according to different country's climate and working condition, to achieve best effect of working. We supply you all-around and excellent services, be able to meet your different requirements.

Our products as follows:

1. SINOTRUK Truck and DONGFENG Truck: Tractor truck, dump truck, cargo truck, concrete mixer truck, garbage truck, road sweeper, water truck, oil tank truck, Aerial work platform truck, food van truck, refuel truck etc.

2. SINOHENG Semi trailers: Low bed trailer, container trailer, bulk cement trailer, oil tank semi trailer, tipper trailer, cargo trailer etc.

3. SINOHENG construction machinery: Large and medium wheel loaders, mini wheel loaders, skid steer loaders, road roller, excavator, backhoe loader, forklift truck, rough terrain crane, truck crane, bulldozers, crawler crane, tower crane, road roller, motor grader etc.

4. Original Spare parts: We have most complete parts system, including truck parts, semi trailer parts, construciton machinery spare parts and various customized parts.

In China, you choose SINOHENG to customize and design products for you, it will be your best choices.
