Series D2 Aluminum Electrical Cabinets
| Price: | Negotiable |
|---|---|
| Trade Terms: | From Shanghai |
| Min Order: | 1Set |
| Pay Type: | L/C,T/T |
Introduction

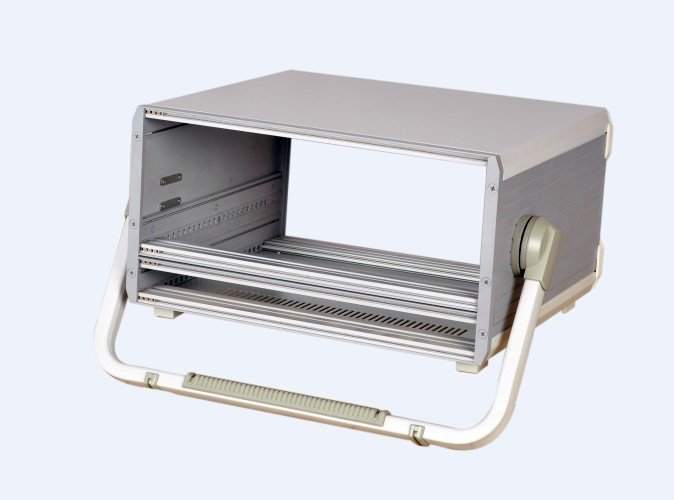

Series D outdoor electrical cabinets are composed of top&base cover, beam, sections of extruded aluminum and plastic unit. Height of case including 2U, 100, 110, 120, 3U, 3.5U, 4U. Width and depth can be freely customized as required. Holes spacing 5.08mm are punched on the front and rear beams to fix plastics guide rails of standard board. Sliding nuts are inserted in the front&rear beams. Model D2 is available if handle is required. (The handle style is as same as model C2, please refer to C2/C3).
List description
1. Material: Extruded aluminum; 2. Size: Can be customized; 3. Surface: Colors sprayed; 4. OEM service is available; 5. ISO9001~2000; 6. For desktop Electronic Enclosures application.
Detailed description
1. Side plate: (1) Side plate is casted by extruded aluminum alloy, plastic sprayed on surface. (2) M4 thread holes are at the end of side plate, used to fix flange.
2. Flange(pressing plate)
3. The connection of bottom cover and side plate: (1) Thickness of 1.5 or 2mm aluminum board. (2) Two setting methods can be selected. (3) Plate board fixed on the front&rear beam. (4) U shape board fixed on the left and right side plate.
Special Instructions
1. The panel is made of 2.5mm aluminum board or sections; Different dimension can be selected; Multi-choice conformed to shield standard.
2. The fastest customized production and supply.
3. Optional accessories: Plug-in panel, handle, screw and moudle box.
4. Total depth(D) and Total Width can be freely customized.
5. Color schemes: Green, medium Grey, Sapphire Blue, light Grey( metal color ).
6. Min. Order: 1 sets
7. Shipping Port: Shanghai
Series D outdoor electrical cabinets are composed of top&base cover, beam, sections of extruded aluminum and plastic unit. Height of case including 2U, 100, 110, 120, 3U, 3.5U, 4U. Width and depth can be freely customized as required. Holes spacing 5.08mm are punched on the front and rear beams to fix plastics guide rails of standard board. Sliding nuts are inserted in the front&rear beams. Model D2 is available if handle is required. (The handle style is as same as model C2, please refer to C2/C3).
List description
1. Material: Extruded aluminum; 2. Size: Can be customized; 3. Surface: Colors sprayed; 4. OEM service is available; 5. ISO9001~2000; 6. For desktop Electronic Enclosures application.
Detailed description
1. Side plate: (1) Side plate is casted by extruded aluminum alloy, plastic sprayed on surface. (2) M4 thread holes are at the end of side plate, used to fix flange.
2. Flange(pressing plate)
3. The connection of bottom cover and side plate: (1) Thickness of 1.5 or 2mm aluminum board. (2) Two setting methods can be selected. (3) Plate board fixed on the front&rear beam. (4) U shape board fixed on the left and right side plate.
Special Instructions
1. The panel is made of 2.5mm aluminum board or sections; Different dimension can be selected; Multi-choice conformed to shield standard.
2. The fastest customized production and supply.
3. Optional accessories: Plug-in panel, handle, screw and moudle box.
4. Total depth(D) and Total Width can be freely customized.
5. Color schemes: Green, medium Grey, Sapphire Blue, light Grey( metal color ).
6. Min. Order: 1 sets
7. Shipping Port: Shanghai
| Some Standard Order Information of Series D unit: mm | |||||||||
|
Total Height (U) |
Holes (N) |
Net Width (E) |
Net Height (A) |
Total Width (W) |
Total Depth (D) |
Panel Height (h) |
Panel Width (B) |
Space of mounting hole | |
| 2 | 42 | 213.4 | 68 | 235.8 | 240 | 84.5 | 213 | 78 | |
| 2 | 63 | 320 | 68 | 342.5 | 300 | 84.5 | 320 | 78 | |
| 2 | 84 | 426 | 68 | 449.2 | 360 | 84.5 | 426.5 | 78 | |
| 3 | 42 | 213.4 | 113.4 | 235.8 | 280 | 129 | 213 | 122.5 | |
| 3 | 63 | 320 | 113.4 | 342.5 | 340 | 129 | 320 | 122.5 | |
| 3 | 84 | 426 | 113.4 | 449.2 | 360 | 129 | 426.5 | 122.5 | |
| 3.5 | 42 | 213.4 | 135 | 235.8 | 280 | 151.5 | 213 | 145 | |
| 3.5 | 63 | 320 | 135 | 342.5 | 340 | 151.5 | 320 | 145 | |
| 3.5 | 84 | 426 | 135 | 449.2 | 360 | 151.5 | 426.5 | 145 | |
| 4 | 42 | 213.4 | 157 | 235.8 | 280 | 173.5 | 213 | 167 | |
| 4 | 63 | 320 | 157 | 342.5 | 340 | 173.5 | 320 | 167 | |
| 4 | 84 | 426 | 157 | 449.2 | 360 | 173.5 | 426.5 | 167 | |
| 5 | 42 | 213.4 | 202 | 235.8 | 280 | 218 | 213 | 211.5 | |
| 5 | 63 | 320 | 202 | 342.5 | 340 | 218 | 320 | 211.5 | |
| 5 | 84 | 426 | 202 | 449.2 | 360 | 218 | 426.5 | 211.5 | |
| 6 | 42 | 213.4 | 246 | 235.8 | 280 | 262.4 | 213 | 256 | |
| 6 | 63 | 320 | 246 | 342.5 | 340 | 262.4 | 320 | 256 | |
| 6 | 84 | 426 | 246 | 449.2 | 360 | 262.4 | 426.5 | 256 | |
| 100 | 42 | 213.4 | 80 | 235.8 | 240 | 96.5 | 213 | 90 | |
| 100 | 63 | 320 | 80 | 342.5 | 300 | 96.5 | 320 | 90 | |
| 100 | 84 | 426 | 80 | 449.2 | 360 | 96.5 | 426.5 | 90 | |
| 110 | 42 | 213.4 | 90 | 235.8 | 280 | 106.5 | 213 | 100 | |
| 110 | 63 | 320 | 90 | 342.5 | 340 | 106.5 | 320 | 100 | |
| 110 | 84 | 426 | 90 | 449.2 | 360 | 106.5 | 426.5 | 100 | |
| 120 | 42 | 213.4 | 100 | 235.8 | 280 | 116.5 | 213 | 110 | |
| 120 | 63 | 320 | 100 | 342.5 | 340 | 116.5 | 320 | 110 | |
| 120 | 84 | 426 | 100 | 449.2 | 360 | 116.5 | 426.5 | 110 | |
| Prod Model: | D2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
