Sheet Metal Deburring and Edge Rounding Machine Vacuum Table
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

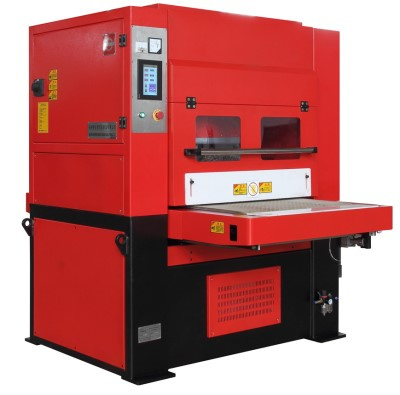

SP800 is a flexiable deburring machine which is mainly applied in fabrication industry for flat plate and milling parts.
Machine is equipped two abrasive barrels on the head, each spins itself while the whole head rotates in the meantime. It can do deburring on all edges and deeply in holes on plate by the effects of abrasive media in high speed centrifugal grinding, scraping, cutting and filing.
Burrs on interior and exterior contours can be all removed, but the precise dimensions on plate will be kept.

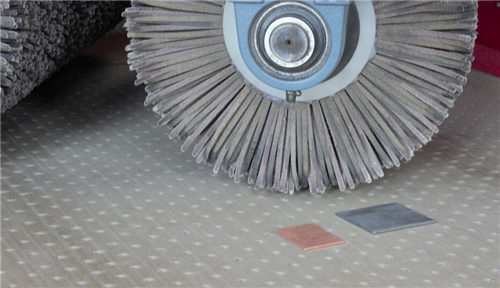

This machine is equipped with unique soft abrasive filaments by our design to against the features of the bur. Therefore, this is a machine that affects very less on the surface of parts and performs excellent on the non-flat plates as well.
The two abrasive cylinders rotation directions is opposite for even deburring also.
The speed of abrasive cylinder, whole deburring assembly, assembly oscillation, conveyer is variable for even deburring, controlled by inverters.
B. Technical datasheet
1. Max.working width:800mm
2. Working thickness: 0.3-100mm
3. Min. working size:50x50mm
4. Feed speed: 2-5mmin variable speed
5. Speed of whole head rotation: 0-10r/min variable speed
6. Speed of brush spindle:0-1575r/min variable speed
7. Number of abrasive cylinders:2
8.Size of abrasive cylinder: Φ600mmx290mm
9.Dust extraction: 3000m3/h
10.Total power:15 KW
11.Weight:2000KGS
12. Machine size:1900X1650X2000mm
Machine is equipped two abrasive barrels on the head, each spins itself while the whole head rotates in the meantime. It can do deburring on all edges and deeply in holes on plate by the effects of abrasive media in high speed centrifugal grinding, scraping, cutting and filing.
Burrs on interior and exterior contours can be all removed, but the precise dimensions on plate will be kept.
This machine is equipped with unique soft abrasive filaments by our design to against the features of the bur. Therefore, this is a machine that affects very less on the surface of parts and performs excellent on the non-flat plates as well.
The two abrasive cylinders rotation directions is opposite for even deburring also.
The speed of abrasive cylinder, whole deburring assembly, assembly oscillation, conveyer is variable for even deburring, controlled by inverters.
B. Technical datasheet
1. Max.working width:800mm
2. Working thickness: 0.3-100mm
3. Min. working size:50x50mm
4. Feed speed: 2-5mmin variable speed
5. Speed of whole head rotation: 0-10r/min variable speed
6. Speed of brush spindle:0-1575r/min variable speed
7. Number of abrasive cylinders:2
8.Size of abrasive cylinder: Φ600mmx290mm
9.Dust extraction: 3000m3/h
10.Total power:15 KW
11.Weight:2000KGS
12. Machine size:1900X1650X2000mm
| Prod Model: | SP800 |
|---|---|
| Sheet Metal Deburring Grinding Machine: | Denibing Machine |
