Small Scale Gravity Machine Shaking Table for Gold (6S)
| Price: | US $ 900-1000/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Product Description

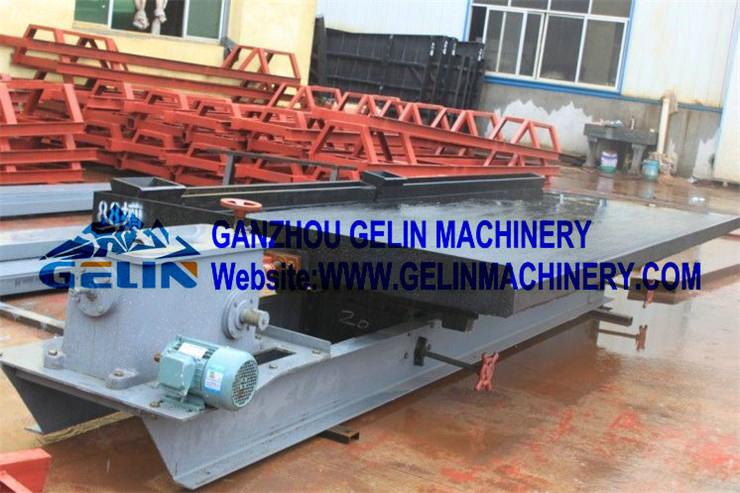

Small Scale Gravity Machine Shaking Table for Gold (6S)
Description
GELIN Shaker Table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.
Gold Shaker Table, Table Concentrator
The Shaker Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.

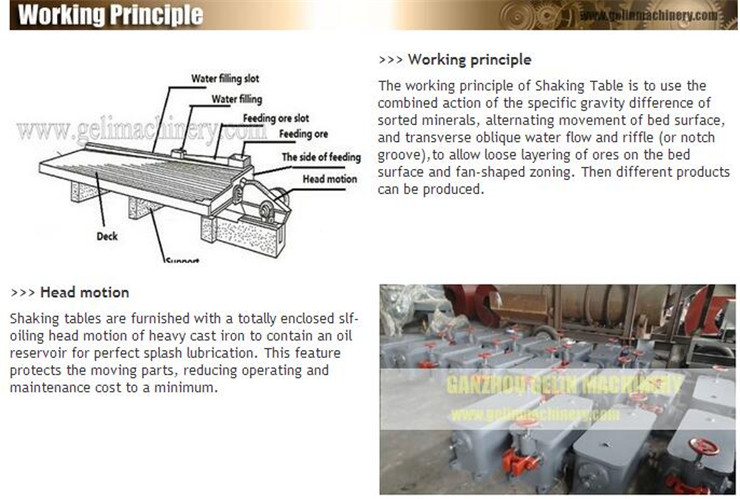

Working Principle
Product Application & Features
Features:
1.High recovery ratio;
2.High concentration ratio;
3.Easy installation;
4.Simple operation;
5.Deck constructed of fiber glass;
6.Seven different decks to choose;
7.Long working life;
8.Adjustable stroke length and speed.
Technical Data
Technical Data:
Producing Machine Products of Our Factory:
Including gravity mineral table concentrator, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment, full sets processing equipments for gold, zircon, tin, chrome, copper, tungsten, ilmenite, iron sand etc.
| del | 6s-7.6 | 4.08 | 1.95 | 0.5 | ||||
| Deck type | Coarse ore deck | Fine sand deck | Slime deck | |||||
| Benefication Area(m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | ||
| Deck size | Length(mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 | |
| Transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | ||
| Concentrate end width (mm) | 1546 | 1546 | 1546 | 1100 | 850 | 430 | ||
| Maximum feeding size(mm) | 2 | 0.5 | 0.15 | Sand -2 Slime-0.1 | Sand -2 Slime-0.074 | Sand -2 Slime-0.074 | ||
| Feeding amount | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.4-1.5t/h | 0.3-0.8t/h | 0.05-0.2t/h | ||
| Feeding density(%) | 25-30 | 20-25 | 15-25 | 10-30 | ||||
| Stroke(mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | ||
| Frequency(F) | 45-220 | 53-250 | 60-280 | 210-320 | 250-450 | 280-460 | ||
| Water added | 1-3t/h | 1-3t/h | 1-3t/h | 0.4-2t/h | 0.2-1t/h | 0.1-0.5t/h | ||
| Transverse slope of deck | 2°30-4°30 | 1°30-3°30 | 1°-2° | 0-10° | 0-8° | 0-10° | ||
| Longitudinal slope of deck | 1.4 | 0.92 | --- | --- | --- | --- | ||
| Cross-section shape of deck | rectangular | saw-tooth | triangle | --- | --- | --- | ||
| Motor power(kw) | 1.1 | 0.55 | ||||||
| Transmission mechanism | Eccentric linkage | |||||||

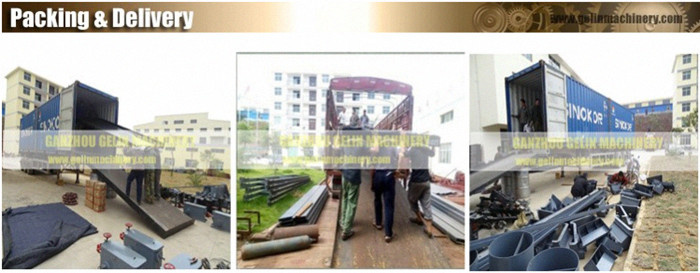

Packing & Loading
- Container
40HQ/40GP/20GP
- Load Port
Xiamen ,Guangzhou, Shenzhen,Shanghai or at customers' request
Our company & Customers Visiting
Ganzhou Gelin Mining Machinery Co., Ltd is an expert manufacturer of mining machines in China. Our company is located in Guzhang Industrial Zone, Shicheng county, Jiangxi province, covering an area of over 30000 square meters, having more than 30 sets of heavy processing equipment and with an annual outpurt of more than 2000 sets of mining machinery.
--- PRE-SALE SERVICE ---
1.Based on clients' request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;
2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;
3. Design and provide the complete processing flowchart;
4. Design & manufacturer products according to clients' demands.
--- AFTER-SALE SERVICE ---
1.Pre-check and test the products before delivery;
2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;
3.Trace the status of the shipping until the products received;
4.Prepare required documents to let clients pass custom clearance;
5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel
3) Carry out any other service clients may need
6. Provide technical exchanging & spare parts for life-long term
--- ONE STOP SOLUTION ---
1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;
2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.
FAQ
Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: If i need the complete mineral processing line. is Gelin able to help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
Welcome to visit our factory in your free time!
| Prod Model: | 6S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: | Gelin |
| Usage: | Mining Concentration |
| Feeding Size: | 0.074-2mm |
| Feeding Density: | 30%~50% |
| Mineral Apllication: | Gold, Tin, Copper, Chrome Ore etc. |
| Guarantee: | 1year |
| After Service: | Supply |
| Delivery Date: | 2 Days as in Stock Now |
| Place Of Origin: | China |
| Type: | Beneficiation Machinery |
