Smart Archives Mobile Shelving/Metal Movable Compact Mobile Filing Cabinet /Shelf
Price: |
Negotiable/Ton |
Min Order: |
17/Ton |
Pay Type: |
L/C,T/T |
Prod Model: |
17-S023 |
Usage: |
Office, School, Home, Hotel, Hospital, Company |
Certificate: |
ISO9001, ISO 14001 and GB/T28001 |
Layer: |
6 Layers |
Product Description
Smart Archives Mobile Shelving/Metal Movable Compact Mobile Filing Cabinet /Shelf Product Name | Smart Archives Mobile Shelving/Metal Movable Compact Mobile Filing Cabinet |
Size | H2400*W900*D560mm |
Usage | Offioffice,school,home,hotel,hospital,company,factory, and other commercial area. |
Thickness | 0.6mm as regular, 0.5-1.2mm available |
Color | light grey ,Customized |
Certificate | ISO9001, ISO 14001 and GB/T28001 |
Port | Nanchang,shanghai,Shenzhen, Guangzhou, Qindao |

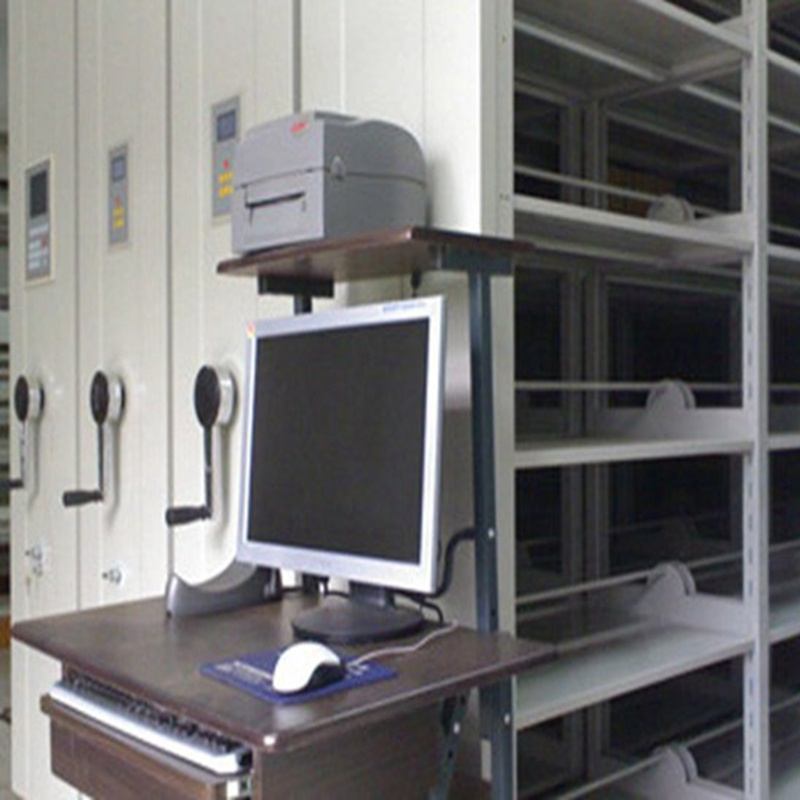

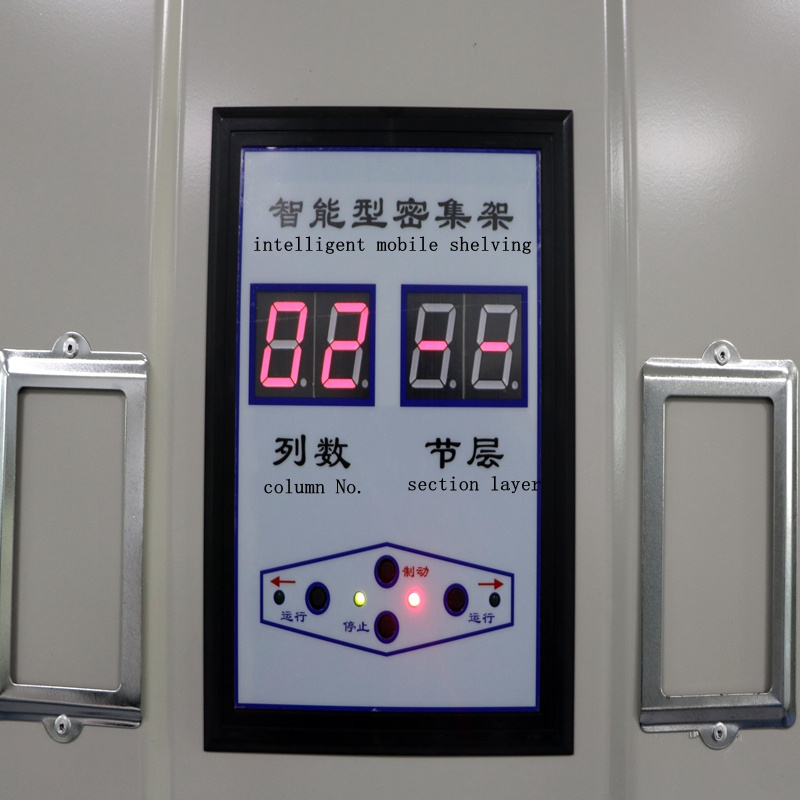

1. The intelligent mobile shelving is a kind of intelligent network compact shelving integrated manual operation, power operation and computer control, to achieve long-distance operation, macro automation frame control. Three transmission methods are independent, do not affect each other. The double-sided operation panel makes the operation of the product arbitrary. You can do the electric switch every column body. A motor start button is mounted on the panels of each column. When the manager needs to open any column, as long as press the button to open, the body can be automatically opened. If the power outage, you can also shake the hand wheel, manually open the shelves. The most convenient is the smart shelving installed my company independent research and development of intelligent software. The software program can be installed in the file management computer. File storage in the computer to create a file management database. In the future management process, as long as the computer management interface to enter the need to query the file, the file where the shelf frame can automatically open.2. Triple security protection system:(1) Light protection: there is a professional lighting between the two columns. When the body is open, the lights automatically light, both the role of lighting, but also a protective effect. When the light is turned on, the frame automatically starts the protection mechanism, and any other column of shelves can not be opened to prevent the staff from being caught between the columns. When the frame is closed, the lights are automatically turned off.(2) Infrared sensor protection: infrared sensor systems are installed in the intelligent mobile shelving. When the frame is opened, the infrared sensor starts automatically. When the staff work in the frame, the shelves, whether the computer or the motor button can not start the frame, so as to prevent other staff who do not know which people are free to open and close the body and clip the staff, play a protective role.(3) Electromagnetic protection: also installed with electromagnetic induction system, such as infrared induction. When someone between the columns, can not open and close other column, to protect the safety of staff.3. Automatic positioning function: In order to facilitate the staff management and access to files, equipped with LED light positioning system. When the staff need to query a file, as long as the computer to enter the file number or name, the file where the shelf automatically open. The column light flashes, informs the column, the layer indicator flashes, informs the layer, the indicator light flashes below the file box, and determines the file location. Managers only need to follow the direct access to the instructions can greatly reduce the workload, which makes the file management more secure, fast and convenient.3. File protection function:- Automatic thermometer:
In order to ensure a dry storage environment, intelligent compact rack with temperature and humidity display. The staff can determine the safety of the archives according to the temperature and humidity.- Intelligent ventilation management:
Intelligent Shelves provide multiple sets of ventilation interfaces. Staff can be based on the smart thermometer display, click the "ventilation" button, the ventilation interface that is automatically working to maintain the overall storage environment.(4) Remote control system:In the computer interface can be turned on or off the power supply, do not need the staff back and forth bustling.,The management computer can be set anywhere, through password permissions to operate.Process: the use of emulsifiers and alkaline to help degrease, phosphoric acid rust, zinc film phosphating, passivation, electrostatic spray powder coating.Smart mobile shelving structure:With a set of manual, electric running structure. mainly by the column, shelves, hanging plate, side panels, chassis, motor and other components. It is the Light, machine, electrical integration products.Functions:- Frame lock function;
- Infrared security detection function;
- Design of Safe Voltage for Low Voltage Direct Current 24 V;
- Intelligent automatic return function;

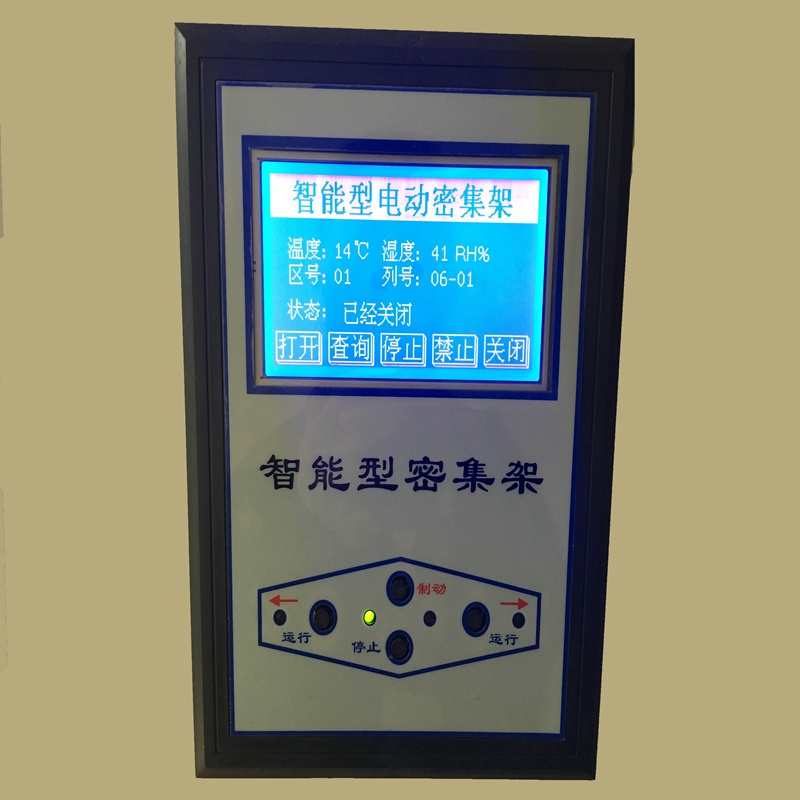

- Real-time display of temperature and humidity and automatic ventilation function;
- Equipped with high-performance LCD;
- Using ODBC programming, can be connected to a variety of large databases.
Material:Shanghai Bao Steel quality SPCC cold-rolled steel Size:can be customized Specifications Technical Parameters:Regular size: H2400mm,W900mm/bay, D500mm, 6 storage levels, distance between levels 330mm, load 80 kg/level, rail 20mm×20mm square steel, chassis 3.0mm, double-sided upright 1.5mm, shelf plate1.0mm, side panel 1.2mm, door 1.0mm, rotating mechanism, shockproof device, anti-fall device, brake device, dustproof, anti-rat device, intelligent control system, etc.1.Packing method: Totally knock-down ,Standard export carton (packing with pearl foam and foam board );
2.Can Put logo on the cartons, the name of the model and details of the model such as pieces, dimension etc;
3.Can have a product sketch printed outside of the package;
4.Can provide test report;
5.Protection packing inside, foam materials, Anti-Moisture plastic etc;
6.Shipping:EXW & FOB & CNF & CIF can be accept, competitive ocean freight with professional container loading team.
Yuanjin Science & Technology Group Co., Ltd. Which is located in Zhangshu, Jiangxi, China. Companies registered capital of 61.88 million Yuan, with a total investment of 180 million Yuan, covers an area of over 30, 000 square meters.
It is known as the State High-tech Enterprise possessed strong technical force and well-equipped workshop. Moreover, it converges a number of talented staff who are expert at the field of machine, CNC machinery (Computerized Numerical Control machinery), product research, software development and so on. And has a number of advanced CNC mechanized assembly line and automatic picking, phosphating, electrostatic spray lines introduced from Germany. The main products are: File equipment, books equipment, storage equipment, medical equipment, insurance equipment, office furniture, six series and over 512 varieties. Various products has been selling throughout the country and exported to Russia, Brazil, South America, Southeast Asia and other countries and regions.
Our main products as below:
1. Library equipment series:
1) Mobile shelving for archive storage (including manual shelves and power shelves);
2) Bookshelf (material: Steel or steel/wood);
3) Steel cabinets;
4) Carrels and chairs;
2. Office equipment series:
1) Office tables and chairs;
2) File cabinest;
3) Various steel lockers;
3. Insurance equipment series:
1) Iron cash box;
2) Explosive storage;
3) Vault door
4. Industry storage
1) Pallet racks;
2) Pallets and wire containers;
Yuanjin Products have their own core technology and intellectual property. 81 items' technologies obtained national patent certificates. "Yuanjin" trademark is identified as "Chinese Well-known Trademarks" by the State Administration of Industry and Commerce. "Yuanjin" brand compact shelving and bookshelf products are named "Jiangxi Province Famous Brand Products" which has passed through the ISO9001 quality management system certification, ISO14001 environmental management system certification, China Environmental labeling products certification, and OHSMS18001 occupational health and safety management system certification.
Adhering to the spirit of "quality is source, credit is gold'', Yuanjin insists on leading the way for high quality products and superior service, providing you with perfect solutions on the filing storage and industry storage.
