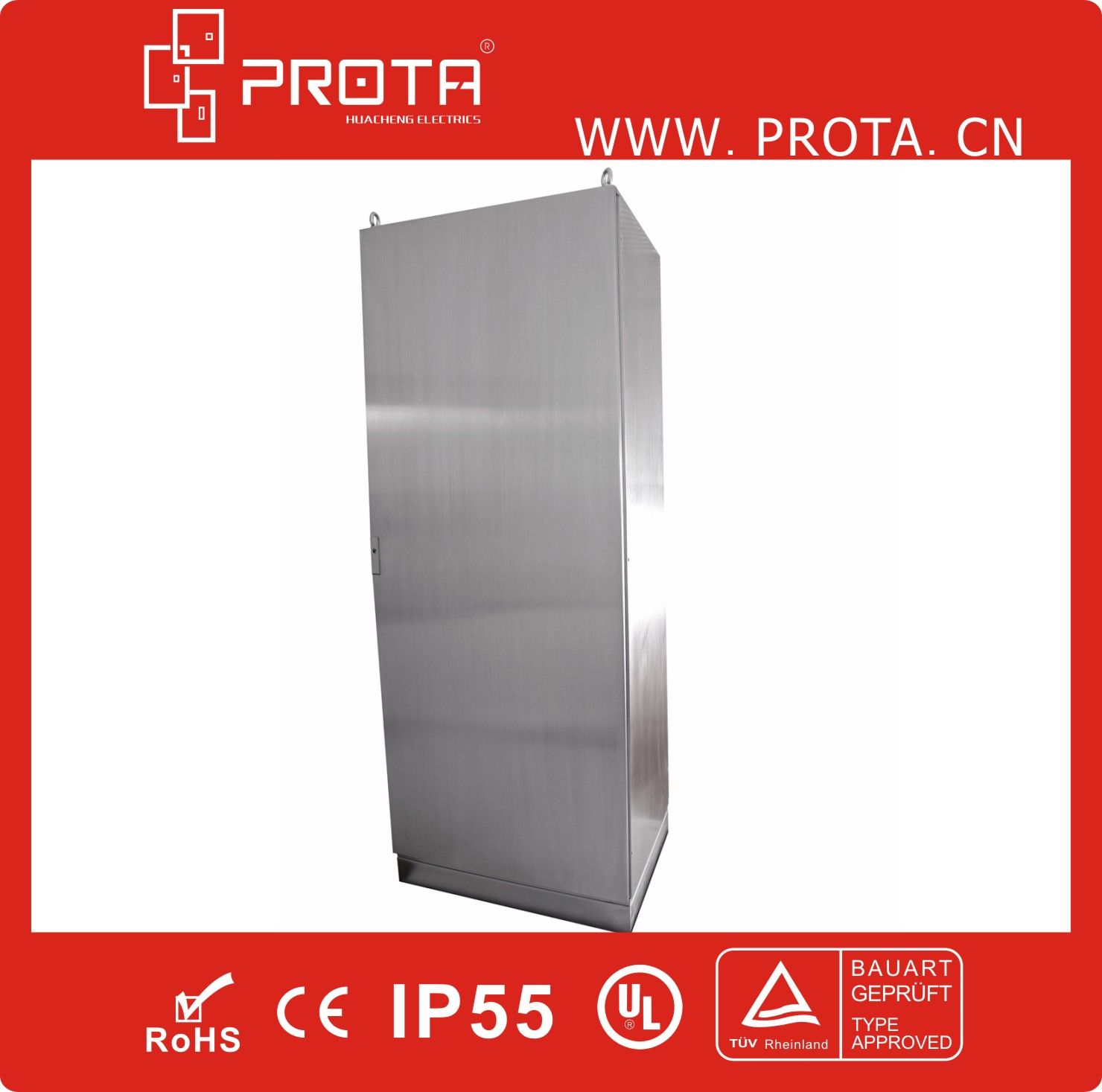

Stainless Steel Floor Standing Power Control Electric Cabinets
| Price: | US $ 200-600/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
Stainless Steel Floor Standing Power Control Electric Cabinets
Craftsmanship feature
1. By means of the module size of 25mm, we carry out flexible system design
2. The door plane is 25MM from the floor, ensuring the good performance of the door opening.
3. The specific tube of the door strengthens system and brings higher durability for the door.

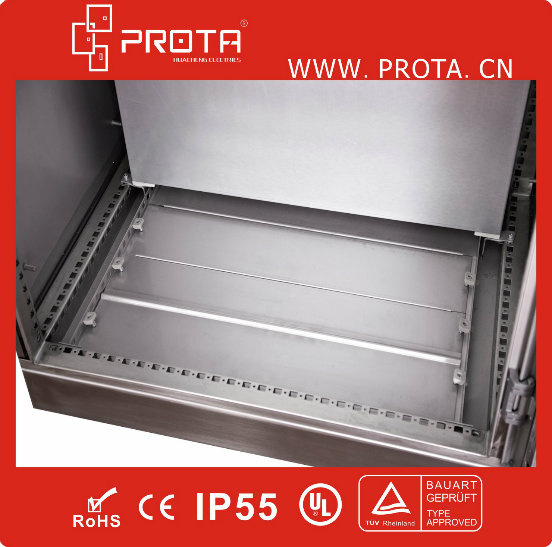

4. At the bottom of the chest, there's a cable plane which leads to the cover plate, and helps the cables to be guided into the line pores.
5. The back plate is easily removable and it can be switched with the front door

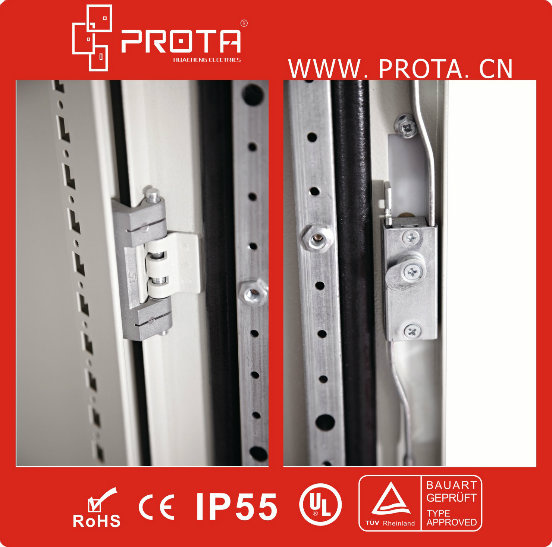

6. The four point typed lock won't get loose even under intense vibrations, realizes higher performance.
The standard configuration of the cabinet
1. Surface processing: Hairline Finish.
2. Color: Natural
3. Material and thicknes: 304SUS & 316L Stainless Steel
Body: 1.5mm
Galvanized mounting plate: 2.5mm
Back panel and side panels: 1.5 mm
Front Door: 2.0 mm
4. Protection degree: IP55
Selection Table
Cut-outs and drilled holes to your specifications. Should you have any questions or problems, ple4se contact with us.
Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our custome
Craftsmanship feature
1. By means of the module size of 25mm, we carry out flexible system design
2. The door plane is 25MM from the floor, ensuring the good performance of the door opening.
3. The specific tube of the door strengthens system and brings higher durability for the door.
4. At the bottom of the chest, there's a cable plane which leads to the cover plate, and helps the cables to be guided into the line pores.
5. The back plate is easily removable and it can be switched with the front door
6. The four point typed lock won't get loose even under intense vibrations, realizes higher performance.
The standard configuration of the cabinet
1. Surface processing: Hairline Finish.
2. Color: Natural
3. Material and thicknes: 304SUS & 316L Stainless Steel
Body: 1.5mm
Galvanized mounting plate: 2.5mm
Back panel and side panels: 1.5 mm
Front Door: 2.0 mm
4. Protection degree: IP55
Selection Table
| Model No. | H | W | D |
| (mm) | (mm) | (mm) | |
| PRX9/PRX9K 126/4 | 1200 | 600 | 400 |
| PRX9/PRX9K 126/8 | 1200 | 600 | 800 |
| PRX9/PRX9K 128/4 | 1200 | 800 | 400 |
| PRX9/PRX9K 128/8 | 1200 | 800 | 800 |
| PRX9/PRX9K 146/4 | 1400 | 600 | 400 |
| PRX9/PRX9K 146/8 | 1400 | 600 | 800 |
| PRX9/PRX9K 148/4 | 1400 | 800 | 400 |
| PRX9/PRX9K 148/8 | 1400 | 800 | 800 |
| PRX9/PRX9K 166/4 | 1600 | 600 | 400 |
| PRX9/PRX9K 166/8 | 1600 | 600 | 800 |
| PRX9/PRX9K 168/4 | 1600 | 800 | 400 |
| PRX9/PRX9K 168/5 | 1600 | 800 | 500 |
| PRX9/PRX9K 168/6 | 1600 | 1000 | 600 |
| PRX9/PRX9K 168/8 | 1600 | 800 | 800 |
| PRX9/PRX9K 186/4 | 1800 | 600 | 400 |
| PRX9/PRX9K 186/5 | 1800 | 600 | 500 |
| PRX9/PRX9K 186/6 | 1800 | 600 | 600 |
| PRX9/PRX9K 186/8 | 1800 | 600 | 800 |
| PRX9/PRX9K 188/4 | 1800 | 800 | 400 |
| PRX9/PRX9K 188/5 | 1800 | 800 | 500 |
| PRX9/PRX9K 188/6 | 1800 | 800 | 600 |
| PRX9/PRX9K 188/8 | 1800 | 800 | 800 |
| PRX9/PRX9K 203/4 | 2000 | 300 | 400 |
| PRX9/PRX9K 203/5 | 2000 | 300 | 500 |
| PRX9/PRX9K 203/6 | 2000 | 300 | 600 |
| PRX9/PRX9K 203/8 | 2000 | 300 | 800 |
| PRX9/PRX9K 204/4 | 2000 | 400 | 400 |
| PRX9/PRX9K 204/5 | 2000 | 400 | 500 |
| PRX9/PRX9K 204/6 | 2000 | 400 | 600 |
| PRX9/PRX9K 206/4 | 2000 | 600 | 400 |
| PRX9/PRX9K 206/5 | 2000 | 600 | 500 |
| PRX9/PRX9K 206/6 | 2000 | 600 | 600 |
| PRX9/PRX9K 206/8 | 2000 | 600 | 800 |
| PRX9/PRX9K 208/4 | 2000 | 800 | 400 |
| PRX9/PRX9K 208/5 | 2000 | 800 | 500 |
| PRX9/PRX9K 208/6 | 2000 | 800 | 600 |
| PRX9/PRX9K 208/8 | 2000 | 800 | 800 |
| PRX9/PRX9K 226/4 | 2200 | 600 | 400 |
| PRX9/PRX9K 226/5 | 2200 | 600 | 500 |
| PRX9/PRX9K 226/6 | 2200 | 600 | 600 |
| PRX9/PRX9K 226/8 | 2200 | 600 | 800 |
| PRX9/PRX9K 228/4 | 2200 | 800 | 400 |
| PRX9/PRX9K 228/5 | 2200 | 800 | 500 |
| PRX9/PRX9K 228/6 | 2200 | 800 | 600 |
| PRX9/PRX9K 228/8 | 2200 | 800 | 800 |
Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our custome
| Prod Model: | PRX9 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | SUS304/SUS316 Stainless Steel |
| Color: | Ral 7032/Ral 7035/Customize |
| Surface Finish: | Powder Coating, Textured Finish |
| Thickness: | 1.2mm&1.5mm |
| Lock: | Plastic Lock/ Metal Lock |
| Type: | Distribution Metering Box |
| Structure: | Protection |
| Brand: | Prota |
