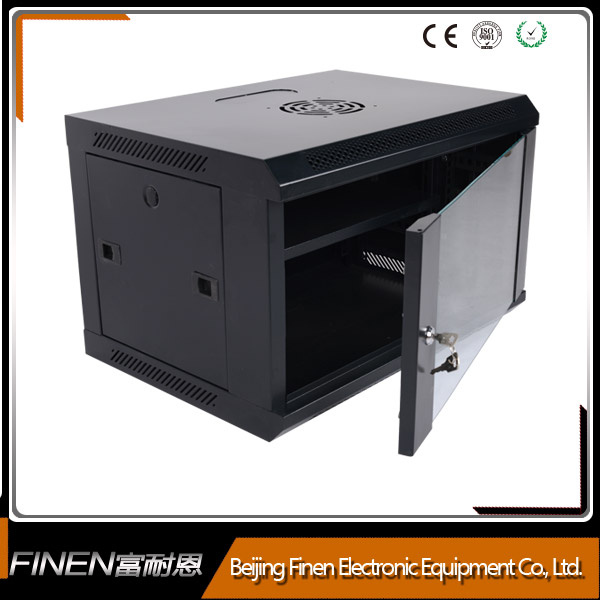

Standard 19 Inch Wall Mountable Rack Cabinet

60kg(132lbs) 19'' wall mount rack cabinet

1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-14 days)
4). OEM service

Product information:

1). Industry Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
2). Capacity/Rack Units: 4U, 6U, 9U, 12U
3). Loading Capacity: 60kgs(132lbs)
4). Materials: SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting angles: 1.2mm;
Other enclosures: 1.0mm
6). Cooling Fan: Two/Four optional 120mm AC cooling fans
7). Side panels: Removable with Easy Handy Latches or locks
8). Doors: Toughened glass front and solid rear doors with round lock
9). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
10). Surface Finish: Degreasing, Pickling, Phosphating, powder coating

Features:

1). Zinc Plated mounting profile
2). Meet IP20 Protection Grade
3). Secure, firm and reliable
4). Excellent Air Ventilation Design with AC 120mm Cooling Fans
5). Three Ways, Top, Bottom, and Rear Cabling Tunnels
6). Easy to install and maintain
6). Certification: ISO 9001: 2000
7). OEM service availale

Applications:

Rack cabinets for Information Technology and telecommunication appliances use:
Small, Medium and Large Servers
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment

Recommend Products
FINEN-A2 Series Toughened glass front door and solid rear door with round locks
FINEN-AS Series Toughend glass front door with air holes on door stripe, vented mesh rear door, handle locks
FINEN-A3 Series Vented mesh front and rear doors with hanle lock
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
We are always developing the new design according to customer demands.

Who are we?

1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 800 workers
3.35000 square meters workshop
4. Customizing services, OEM services, etc.

All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors

Cabinet Package Contents
No.	Component name		Quantity	Unit		Material		Remark
1	Top Cover		1	pc		SPCC cold rolled steel T1.0
2	Fan		1	pc		---		With 1 fan or without
3	Mounting Profile		4	pc		Zinc plated  T2.0
4	Mounting angle		6	pc		SPCC  T1.2		2pcs
5	Frame		2	pc		SPCC  T1.0
6	Lock		2	pcs		---		Round lock
7	Front Door		1	pc		SPCC  T1.0		Tempered glass door
9	Side Panel		2	pcs		SPCC  T1.0		Removable
10	Bottom Panel		1	pc		SPCC  T1.0
11	Screw		20	pcs		---		20pcs
12	Cage nut		20	pcs		---		20pcs
13	Keys		1	set
14	Shelf		1	psc		SPCC  T1.0
15	Other components are available according to request
Specification of FINEN WL Series
Model No.		Capacity(U)			Width(mm)		Depth(mm)
WL-45545		4			550		450
					550		600
WL-65545		6			550		450
					550		600
WL-95545		9			550		450
					550		600
WL-125545		12			550		450
					550		600
WL-155545		15			550		450
WL-185545		18			550		600
