Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LED Power: |
8W Per LED |
LED Color: |
RGBW 4in1 |
Control System: |
DMX512 Built-in |
IP Rating: |
IP65 |
Diffuser: |
Tempered Glass |
Beam Angle: |
60?? |
Lifespan: |
50000 hours |
Warranty: |
3 Years |
Certification: |
SAA |
Electric Current Type: |
AC |
Emitting Color: |
RGBW |
Power: |
240W |
Input Voltage: |
100-240VAC 50/60Hz |
Product Description
Our Wall Washers come with a basic color controller built into them. With it, you can select color, brightness, and mode (Strobe, Fade, Crossfade etc...). The Wall Washers also come with DMX cables that can be attached to a DMX color system like our Sunlite computer lighting controler if you wish to have even more choices.
Application:
Stage lighting, Disco hall, Large literature performance, Gymnasium lighting, Temporary stage performance, City lighting system, TV station, Conference center, professional showplace, Topic park, Bar lighting and so on.
Specification:
Color changing RGB or white, yellow, green, blue, red, amber
Stand-alone or programmable
Mount on any flat surface
Suggested accessories:
Wireless receiver/transimission DMX controler
Sunlite Computer lighting controler
CE, RoHS, FCC, SAA approved
Colors: R/G/B, RGB, cool white, pure white, warm white
Light beam angle: 25, 30, 45, 60, 80, 120degrees
Numbers of LED quantity: 30PCS (100cm/39inch model)/36PCS(120cm/47inch model)
Rotary Angle of Base: 180degrees
Cables: (1) power, (2)DMX
Length of DMX cable: 30cm (12inch)
Power Cord length: 120cm /47.5inch
Input voltage: 120-240VAC, 50/60Hz
Working Voltage: 24V DC
Power Consumption: 90W max. (39 inch model) / 144W max. (47 inch model)
IP Rating: IP65 (water resistant)
UV/IR: None
Lifespan: 50, 000 hours
Setting Menu Screen
Adr = DMX 512 ADDRESS (1-512)
A-1 = Colors Fading
A-2= Colors Jumping
A-r = Static RED
A-G = Static GREEN
A-b = Satic BLUE
A-S = Colors Flashing
A-D = Whole Brightness DIMMER LEVEL
Product DMX Feature:
1. Product model: 2.4G DMX512 wireless receiver/transmitter
2.126 channels jumping frequency self-moving, self-moving to option non-interfere frequency section, ensuring communication is reliable.
3. Communication distance: 400M(visible distance)
4. Working frequency: 2.4G ISM, 126 channels
5. Max transmitting power rate: 20dBm
Receive sensitive: -94dBm
6. Stand-alone

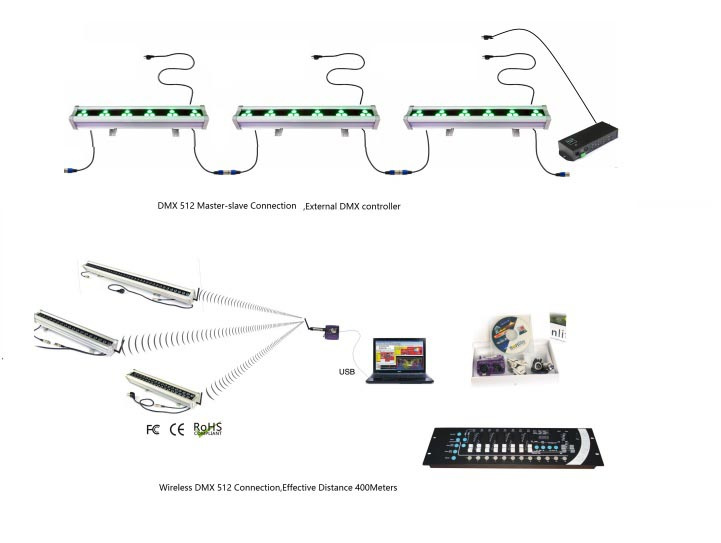

- After setting Master, set the address of the Master to 001, and all the salvers washers to ADR to ychronize them.
7. Sunlite PC lighting controler
- Connect the primary wall washer to a wireless DMX controler using one of the fixture's XLR-3 cable.
-Daisy-chaine multiple wall washers by connecting to the primary wall washer in the series.
- To individual address each wall washer a different address.
- One addressed, each wall washer will respond to the Sunlite PC lighting controler,
According to the channel selected on the DMX controler.
Warnings And Installation Tips
RGB LED DMX wall washers include a built-in DMX programmable dimming and colors control capacity via the light side digital window.
The linear LED wall washer must be mounted on a surface in an upright position for upward projection.
Or rorate into a tilted angle for a certain suface projection.
These fixtures are rated for use in an environment whre the idea ambient operating temperature is between -20° C~+45° C.
All XLR-3 plugs DMX wall washers can be daisy-chained together, no fixture quantity limit.
