| Price: | US $ 2000-600000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | ETM503B |
|---|---|
| Test Speed: | 0.001 ~ 500mm/Min |
| Position Accuracy: | 0.5% of Reading |
| Position Resolution: | 0.027μm |
| Crosshead Travel (Without Grip): | 1000mm |
| Force Resolution: | 1/500000fs |
| Test Standard: | ISO527 ISO178 ASTM D636 D790 D412 D882 |
| Test Sample: | Plastic, Rubber, Steel Wire, Textile, etc |
| Crosshead Travel: | 1000mm |
| Test Width: | 420mm |
| Type: | Universal Testing Machine |
| Weight: | 0-100Kg |
| Power Source: | AC220V |
| Accuracy Grade: | 1 or 0.5 |
| Display: | Computer Display |
| Oil Cylinder Position: | Servo Control |

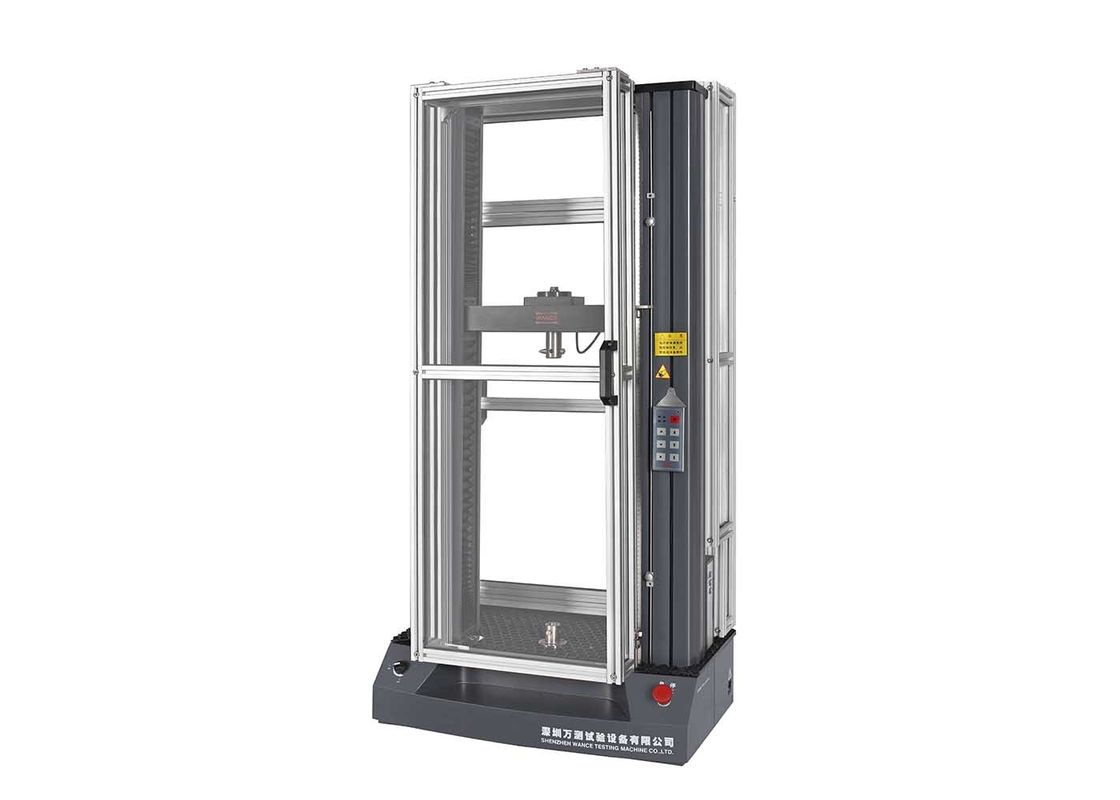

Electromechanical universal testing machine 5kN class 0.5 table-top for plastics test ETM503B
ETM series B desktop computer control electronic universal testing machine possesses the characteristics of compact structure, simple and easy to use and can be applied to tensile, compression, bending, shear, peel, tear load test, etc.
Sensors can be equipped with different range of load for small to micron grade fibre, big to the loaded structures such as sample to provide accurate measurement data.In addition, abundant fixture tools, accessories such as deformation measurement, almost all can meet customer demand.
Form a complete set of flexible and easy to use TestPilot software, the user test process easier.Test solution to cover medical equipment, biological materials, textiles, elastomer, food, small parts, wire, paper, plastic, film, etc.
Plastis testing standards include ISO527, ASTM D638, ISO 178, ASTM D790, etc.
1.1 This part of ISO 527 specifies the general principles for determining the tensile properties of
plastics and plastic composites under defined conditions. Several different types of test specimen are defined to suit different types of material which are detailed
in subsequent parts of ISO 527.
1.2 The methods are used to investigate the tensile behaviour of the test specimens and for determining
the tensile strength, tensile modulus and other aspects of the tensile stress/strain relationship under the conditions defined.
1.3 The methods are selectively suitable for use with the following range of materials:
- rigid and semirigid thermoplastics moulding
and extrusion materials, including filled and reinforced compounds in addition to unfilled types; rigid and semirigid thermoplastics sheets and films; - rigid and semirigid thermosetting moulding
materials, including filled and reinforced compounds; rigid and semirigid thermosetting sheets, including laminates;
- fibre-reinforced thermoset and thermoplastics composites incorporating unidirectional or non-unidirectional reinforcements such as mat, woven fabrics, woven rovings, chopped strands,
combination and hybrid reinforcements, rovings and milled fibres; sheets made from pre-impregnated materials (prepregs);
- thermotropic liquid crystal polymers.
Machine dimension:
| Frame type | Width x Depth x Height A x B x C (mm) | Crosshead travel H (mm) | Test width W (mm) | Adapter (mm) | Pin (mm) |
| Standard | 728×470×1520 | 1000 | 420 | Ф20 | Ф10 |
Specifications:
| Model | ETM503 |
| Type | Type B, dual column, table-top |
| Capacity | 5kN |
| Calibration standard | ISO 7500, Class 1 / Class 0.5 |
| Force range | 0.2% ~ 100%FS / 0.4 ~ 100%FS |
| Force accuracy | ±1.0% / ±0.5% of reading |
| Force resolution | 1/500000FS |
| Position accuracy | ±0.50% of reading |
| Position resolution | 0.027μm |
| Crosshead speed | 0.001 ~ 500mm/min |
| Crosshead speed accuracy | within ±1.0% / ±0.5% of set speed |
| Crosshead travel | 1000mm |
| Test width | 420mm |
Dimension (WidthxDepthxHeight) | 728 x 470 x 1520 (mm) |
| Power requirement | Single phase, 220±10% VAC, 50/60Hz, 400W |
| Weight | 150kg |
Shipping information:
| Package | Particleboard pallets and plywood case, Or fumigated wood case |
| Crated dimension (Width x Depth x Height) | 940*820*1740mm |
| Crated weight | 250kg |
