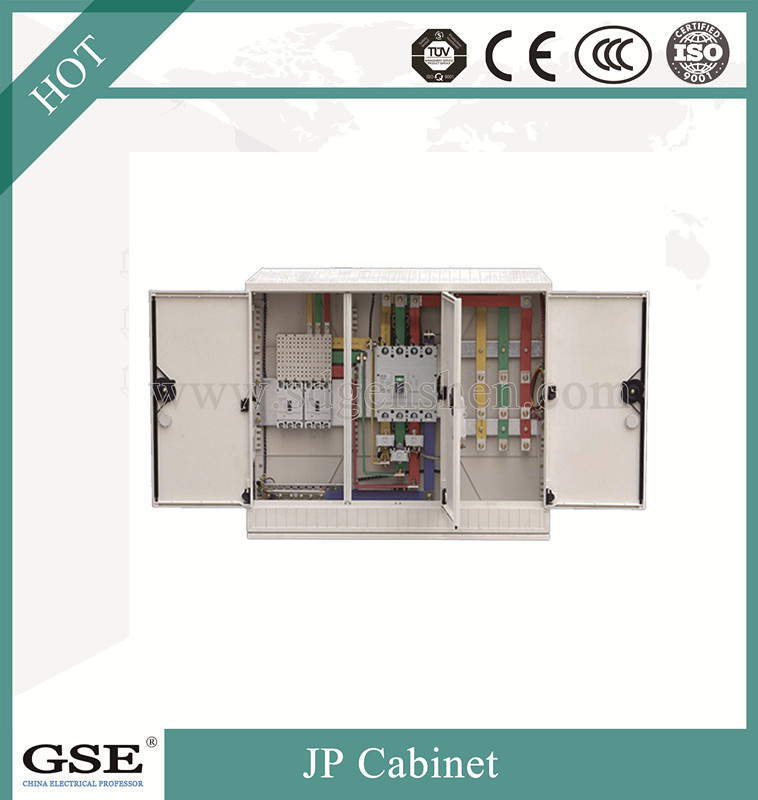

Telecommunication Outdoor Fiber Optic Power Distribution Cabinet
| Price: | US $ 200/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Telecommunication Outdoor Fiber Optic Power Distribution Cabinet
The partner of State Grid Corporation
The partner of National Railway Administration of China
ISO9001, TUV, and CE standard
1.Overview:
Outdoors integrated distribution cabinet series is suitable for AC 50 Hz, rated voltage up to 0.4 kV power transmission and distribution system. This series of product is a combination of automatic compensation and power distribution. And it is a innovative indoors and outdoors pressure distribution cabinet of electrical leakage protection, energy metering, over-current, over-pressure open phase protection. It has benefits of small volume, easy installation, low cost, electricity-stolen prevention, strong adaptability, resistance to aging, accurate rotor, no compensation error, etc. Therefore it is the ideal and preferred product for electric grid reformation.
2.Product Shell:
The product is made of bending and welding of high quality stainless steel. Compared with other distribution boxes made of cold steel, its tensile ability, oxidation resistance, corrosion resistance has been greatly strengthened, and it extends the service life of the equipment. Novel design shows scientific innovation and achievements. On the other hand, V-type box is equipped with sealing rubber strip, which can prevent the dust, and it is fitted with floor at the same time. It can be installed electrical equipment. The open angle is greater than 90 degrees. It is adopted the new design: waterproof, anti-theft, anti-dust. And organic glass has been adopted to increase safety, easily installation and operation. Specifications, sizes can be customized according to customers' requests.
3.Product Function:
Outdoors integrated distribution box - JP series is designed according to reformation requirements and operational experience of gird construction, based on the principle of security, economic, reasonable and reliable. It is a new type outdoors integrated distribution box with functions of power distribution, controlling, protection, reactive power compensation, power metering. At the same time the electric leakage protection can be added according to users' requirements. The product has several benefits: novel structure, reasonable, high protection grade, convenient installation, debugging, maintenance and repair, etc. The product conforms to standard GB7251.1-1997, and passed 3C certification. It is the ideal low-voltage apparatus in reformation of power grids. Outdoors integrated distribution box - JP series is suitable for 0.4 kV voltage grade of power distribution, metering , protection and automatic reactive power compensation.
4.Main Performance:
4.1. Response rapidly, compensation effect is good, reliable work, leakage protector can be added according to customers' requests;
4.2. Protection functions: over-pressure, overload, under-pressure, under-current, short circuit, lack of phase, zero sequence overrun, etc;
4.3. automatic functions: power outages after launch, 10s automatic recovery after sending;
4.4. Improves the power factor of gird above 0.95.
5.Operating Conditions:
Outdoors integrated distribution cabinet series is suitable for AC 50 Hz, rated voltage up to 0.4 kV power transmission and distribution system. This series of product is a combination of automatic compensation and power distribution. And it is a innovative indoors and outdoors pressure distribution cabinet of electrical leakage protection, energy metering, over-current, over-pressure open phase protection. It has benefits of small volume, easy installation, low cost, electricity-stolen prevention, strong adaptability, resistance to aging, accurate rotor, no compensation error, etc. Therefore it is the ideal and preferred product for electric grid reformation.
2.Product Shell:
The product is made of bending and welding of high quality stainless steel. Compared with other distribution boxes made of cold steel, its tensile ability, oxidation resistance, corrosion resistance has been greatly strengthened, and it extends the service life of the equipment. Novel design shows scientific innovation and achievements. On the other hand, V-type box is equipped with sealing rubber strip, which can prevent the dust, and it is fitted with floor at the same time. It can be installed electrical equipment. The open angle is greater than 90 degrees. It is adopted the new design: waterproof, anti-theft, anti-dust. And organic glass has been adopted to increase safety, easily installation and operation. Specifications, sizes can be customized according to customers' requests.
3.Product Function:
Outdoors integrated distribution box - JP series is designed according to reformation requirements and operational experience of gird construction, based on the principle of security, economic, reasonable and reliable. It is a new type outdoors integrated distribution box with functions of power distribution, controlling, protection, reactive power compensation, power metering. At the same time the electric leakage protection can be added according to users' requirements. The product has several benefits: novel structure, reasonable, high protection grade, convenient installation, debugging, maintenance and repair, etc. The product conforms to standard GB7251.1-1997, and passed 3C certification. It is the ideal low-voltage apparatus in reformation of power grids. Outdoors integrated distribution box - JP series is suitable for 0.4 kV voltage grade of power distribution, metering , protection and automatic reactive power compensation.
4.Main Performance:
4.1. Response rapidly, compensation effect is good, reliable work, leakage protector can be added according to customers' requests;
4.2. Protection functions: over-pressure, overload, under-pressure, under-current, short circuit, lack of phase, zero sequence overrun, etc;
4.3. automatic functions: power outages after launch, 10s automatic recovery after sending;
4.4. Improves the power factor of gird above 0.95.
5.Operating Conditions:
| Environmental temperature | -40ºC~+55ºC |
| Relative air humidity | ≤90% (relative environmental temperature is 20ºC~25ºC) |
| Altitude | no more than 2000 m |
| Environmental conditions | suitable for the casing installation, not suitable for places with fire and explosion danger, serious foul, chemical corrosion and strong vibration |
| Installation location | the inclination to the vertical of the ground is no more than 5 degrees |
6.Technical parameters:
| Rated voltage | 400 V |
| Rated frequency | 50 Hz |
| Transformer capacity | 30, 50, 63, 80, 100, 125, 160, 200, 250, 315 (kVA) |
| Capacitor grouping | (in general) 2, 3, 4, 5; Can be adjusted according to customer's special requirements |
| Feeder circuit | 3 roads generally, for each road, distribute according to its transformer's 40-60% of total capacity; Can be adjusted according to customers' special requirements |
| Compensation mode | circulation cutting, coding cutting, fuzzy control automatic cutting |
| Control parameters | reactive power or reactive current |
| Fastest response time | 20 ms or less |
7.Package

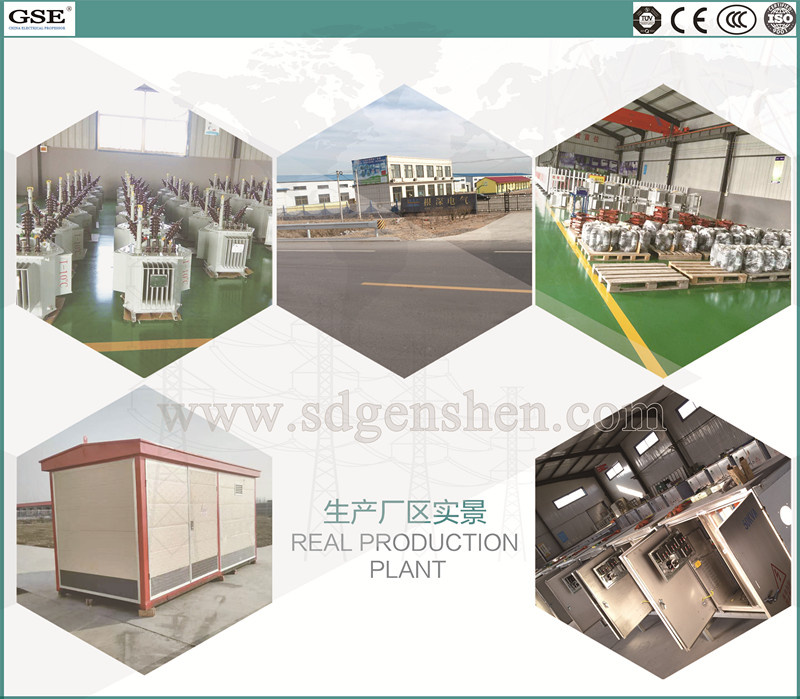

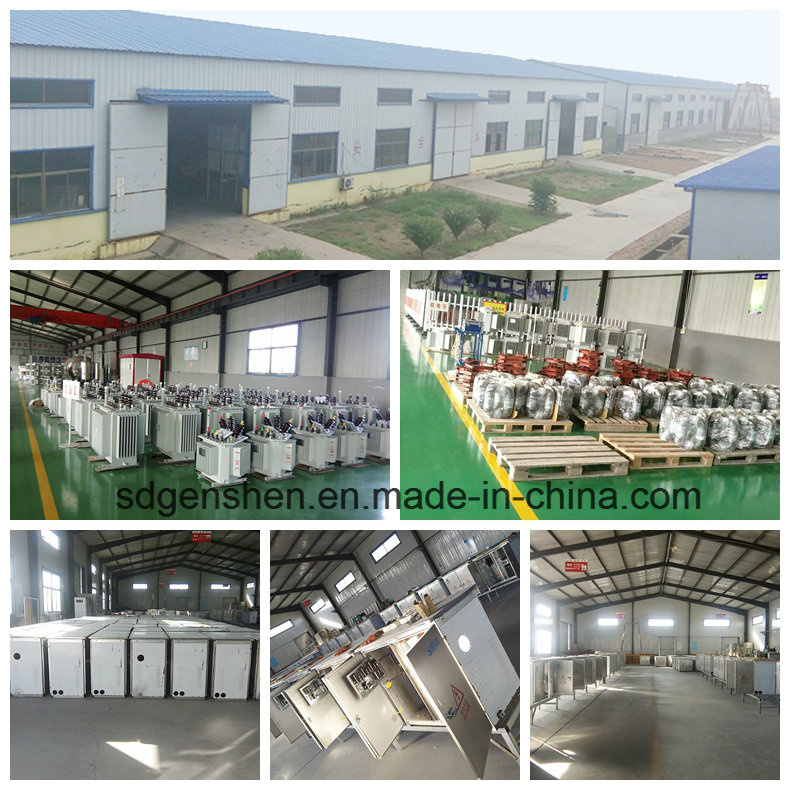

8.Our Company
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary,Qingdao Yaoutongxing International Trading Co.Ltd, is founded in Qingdao.We are specialized in JP Cabinet, Power Distribution, Electric Energy Metering box, High Voltage Switch Cabinet, Box Type Substation, Transformer, Protection Devices, Low voltage switchgear and other electrical equipment and accessories with ISO9001, TUV, and CE standard in China, which is the partner of State Grid Corporation and National Railway Administration of China.We have always cooperated with China's government.We guarantee the highest quality of our products and services with every order.Taking exceptional care with every request is not only our policy, it's our promise.We will at all times be known as professional and honorable operators who are as good as our word.
9.Certificate
10.RFQ
10.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong Province.
10.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
10.3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
10.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
10.5.Q: How can I pay you?
A: T/T, L/C is very well used.
10.6.Q: What about the production?
A: Produce time is 4~6weeks.
10.7.Q: Could you offer some spare parts?
A: Yes, no problem.
10.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
10.Contact
Should you have any problem,please contact with us,we will reply to you in 24 hour.
Manager:Alvin
Mobile:+86 177 6202 7849
8.Our Company
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary,Qingdao Yaoutongxing International Trading Co.Ltd, is founded in Qingdao.We are specialized in JP Cabinet, Power Distribution, Electric Energy Metering box, High Voltage Switch Cabinet, Box Type Substation, Transformer, Protection Devices, Low voltage switchgear and other electrical equipment and accessories with ISO9001, TUV, and CE standard in China, which is the partner of State Grid Corporation and National Railway Administration of China.We have always cooperated with China's government.We guarantee the highest quality of our products and services with every order.Taking exceptional care with every request is not only our policy, it's our promise.We will at all times be known as professional and honorable operators who are as good as our word.
9.Certificate
10.RFQ
10.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong Province.
10.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
10.3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
10.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
10.5.Q: How can I pay you?
A: T/T, L/C is very well used.
10.6.Q: What about the production?
A: Produce time is 4~6weeks.
10.7.Q: Could you offer some spare parts?
A: Yes, no problem.
10.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
10.Contact
Should you have any problem,please contact with us,we will reply to you in 24 hour.
Manager:Alvin
Mobile:+86 177 6202 7849
