Yancheng C&J Machinery Co., Ltd. >> Tsa Series Horizontal Rotary Table (Ts160A, Ts200A, Ts250A, Ts320A, Ts400A, Ts500A, Ts630A, Ts800A, Ts1000A)
Tsa Series Horizontal Rotary Table (Ts160A, Ts200A, Ts250A, Ts320A, Ts400A, Ts500A, Ts630A, Ts800A, Ts1000A)
| Price: | US $ 100-6000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |

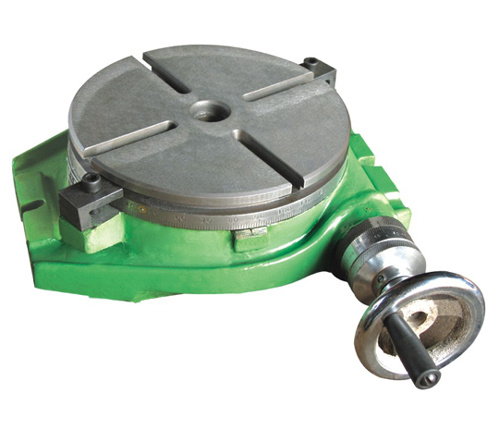

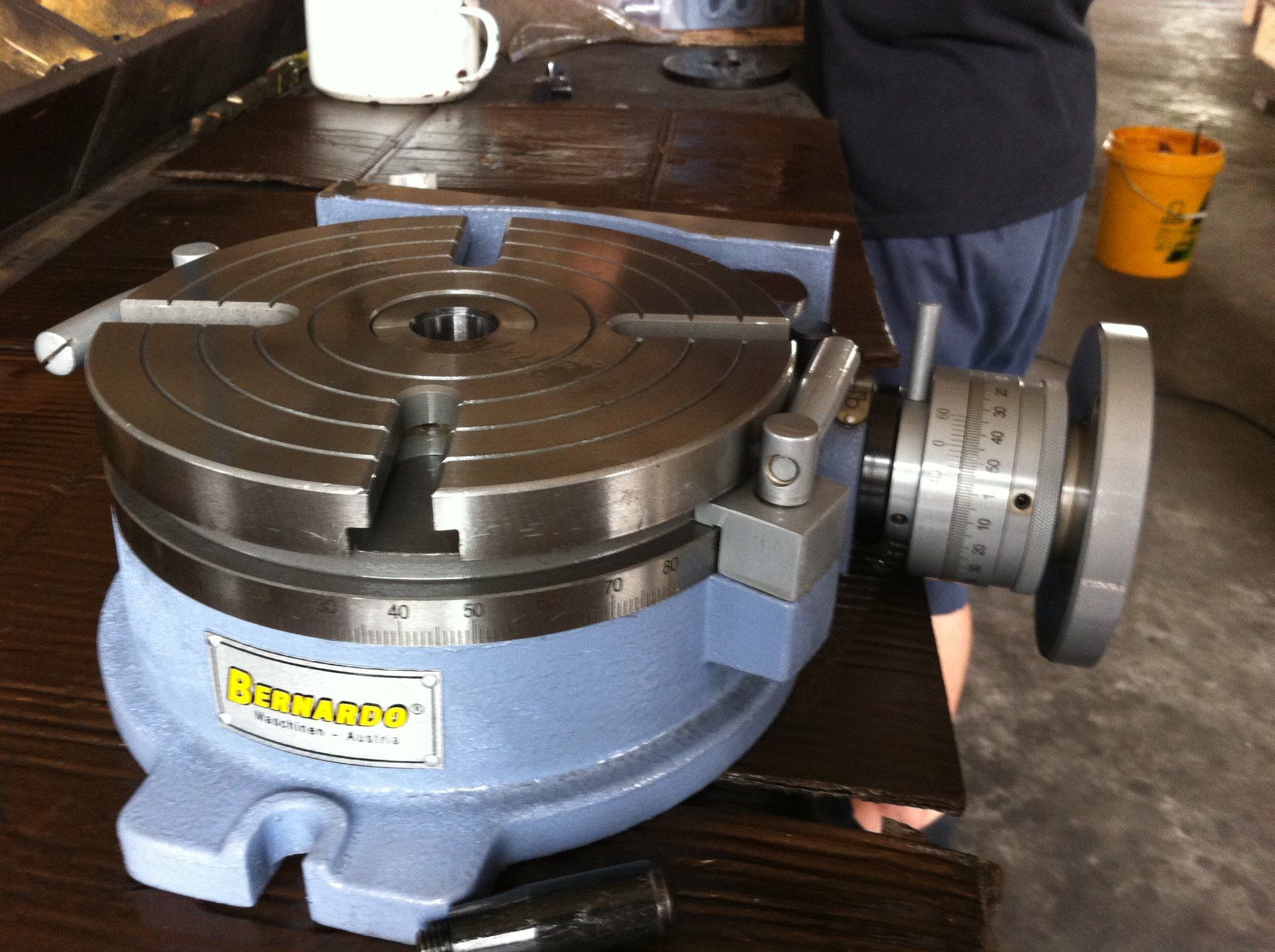

TSA series Rotary table
TSA series Rotary table (TS160A,TS200A,TS250A,TS320A,TS400A,TS500A,TS630A,TS800A,TS1000A)
Features:
1.TSA series rotary table is one of the most important accessory of milling machine.
2.It is widely used for index boring, milling, circle cutting, circle curve plane and segment etc operation.
3.As a option, different table supply different flange, flange will be packed separately. Otherwise, dividing plates which provides from the option can indexing all of the integer between 2 and 66 also can indexing the numbers between 67 and 132 which can be divided exactly by number 2,3 and 5.
4.A flange for connecting scroll chuck is special supplied,and be packed independent.For special order,the dividing plates accessory allows the operator to accurately divide the 360 degree rotation of the clamping surface into divisions of 2 through 66,and all divisible of 2,3 and 5 from 67-132.
5.Optional accessories:hole plate,flange
TSA series Rotary table (TS160A,TS200A,TS250A,TS320A,TS400A,TS500A,TS630A,TS800A,TS1000A)
Features:
1.TSA series rotary table is one of the most important accessory of milling machine.
2.It is widely used for index boring, milling, circle cutting, circle curve plane and segment etc operation.
3.As a option, different table supply different flange, flange will be packed separately. Otherwise, dividing plates which provides from the option can indexing all of the integer between 2 and 66 also can indexing the numbers between 67 and 132 which can be divided exactly by number 2,3 and 5.
4.A flange for connecting scroll chuck is special supplied,and be packed independent.For special order,the dividing plates accessory allows the operator to accurately divide the 360 degree rotation of the clamping surface into divisions of 2 through 66,and all divisible of 2,3 and 5 from 67-132.
5.Optional accessories:hole plate,flange
| Items | TS160A | TS200A | TS250A | TS320A | TS400A | TS500A | TS630A | TS800B |
| Diameter mm | 160 | 200 | 250 | 320 | 400 | 500 | 630 | 800 |
| Morse taper of center hole | MT2 | MT3 | MT4 | MT5 | MT6 | |||
| Dia.of center hole | Φ25X6 | Φ30X6 | Φ40X10 | Φ50X12 | Φ75X14 | |||
| Width of T-slot mm | 10 | 12 | 14 | 18 | 22 | |||
| Width of locating key mm | 12 | 14 | 18 | _ | ||||
| Adjacent angle ot T-slot | 90° | 60° | 45° | |||||
| Transmission radio of worm gear | 1:90 | 1:120 | ||||||
| Min.value of vernier | 10" | |||||||
| Indexing accuracy | 80" | 60" | 30" | |||||
| Max. workload kg | 100 | 150 | 200 | 250 | 300 | 550 | 700 | 1250 |
| N.W. kg | 16.5 | 22.5 | 33.5 | 65 | 125 | 215 | 345 | 800 |
| G.W. kg | 21.5 | 31 | 44.5 | 76 | 145 | 238 | 377 | 855 |
| Case dimensions cm | 40X33 X20 | 44X36 X20.8 | 50X40 X21 | 58X48 X23.8 | 75X61.6 X28 | 85X73 X30.2 | 99.5X90 X32.6 | 117.5X109 X39.1 |
| Prod Model: | TSA series |
|---|---|
| Logo Printing: | Without Logo Printing |
| Size: | Middle |
| Customized: | Customized |
