USB Shielded I/O Receptacle Through Hole
| Price: | US $ 0.01/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T |

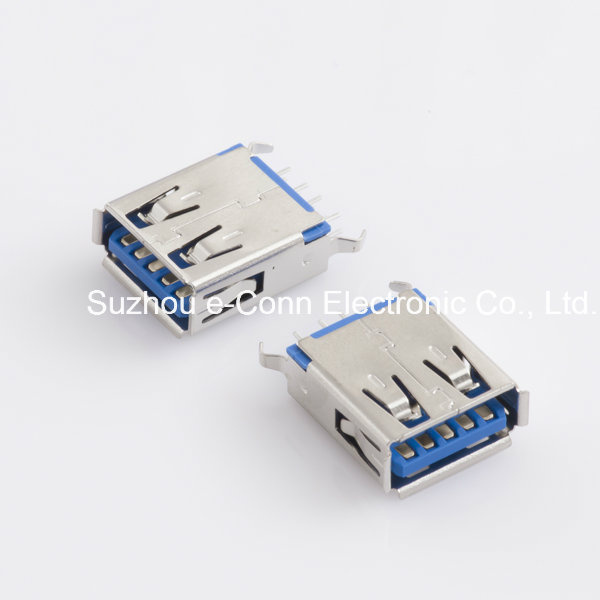

USB 3.0 CONNECTOR RECEPTACLE
Description: Universal Serial Bus (USB 3.0) I/O Receptacle, Right-Angle, Type A, High-Temperature Blue Nylon, 15µ'/5µ/30µ'' Gold (Au) Plating / Flash Gold (Au) 3µ' Minimum Plating.
2 Insulation Resistance : 1000MΩ Min at DC 500V.
3.Dielectric Withstanding Voltage : AC 500V r.m.s.
Other available versions are the SMT Right Angle and Right Angle.
Description: Universal Serial Bus (USB 3.0) I/O Receptacle, Right-Angle, Type A, High-Temperature Blue Nylon, 15µ'/5µ/30µ'' Gold (Au) Plating / Flash Gold (Au) 3µ' Minimum Plating.
- * RoHS Certificate of Compliance available.
- * Drawing (PDF) available.
RATINGS & ELECTRICAL REQUIREMENTS
1 VOLTAGE : 30 Volts DC/AC Max.
2 Insulation Resistance : 1000MΩ Min at DC 500V.
3.Dielectric Withstanding Voltage : AC 500V r.m.s.
4. Insertion Force & Extraction force TEST Per EIA-364-13.
5. Durability . Durability Class: 5000 cycles
5. Durability . Durability Class: 5000 cycles
| Features | Benefits |
| * Metal shielding on all sides | * Superior shielding against RFI and EMI |
| * Single piece design | * Easy assembly |
| * Grounding fingers on shield | * Ground for mating halves |
| * Beveled Metal Pins | * Provides ground to PCB and strong board retention |
* Small footprint | * Less PCB real estate |
| * Detent lock | * Strong plug retention |
Reference Information
Packaging: Tray
Mates With: USB 'A' Plug
Designed In: mm
Electrical
Voltage: 30V
Current: 1.0A
Contact Resistance: 30 milliohms Max
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 1000 Megohms min.
Mechanical
Mating Force: 35.00N (7.87lb)
Unmating Force: 10.00N (2.25lb)
Durability: 5000 cycles
Physical
Housing: Polyster, High Temperature,
Glass-filled, UL 94V-0
Contact: Phosphor Bronze
Plating: Contact Area -0.76μm (30 μ") Gold (Au)
Solder Tail Area - Tin (Sn)
Underplating - Nickel (Ni)
PCB Thickness: 1.6mm (.062")
Operating Temperature: -55°C to +85°C
Other available versions are the SMT Right Angle and Right Angle.
Available in standard, mini and micro versions.
