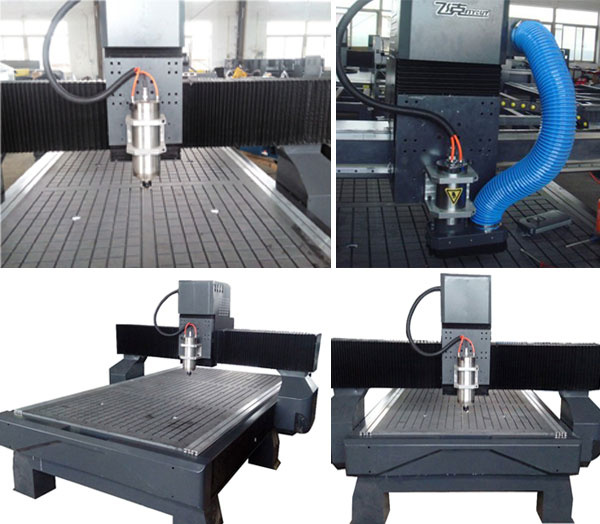

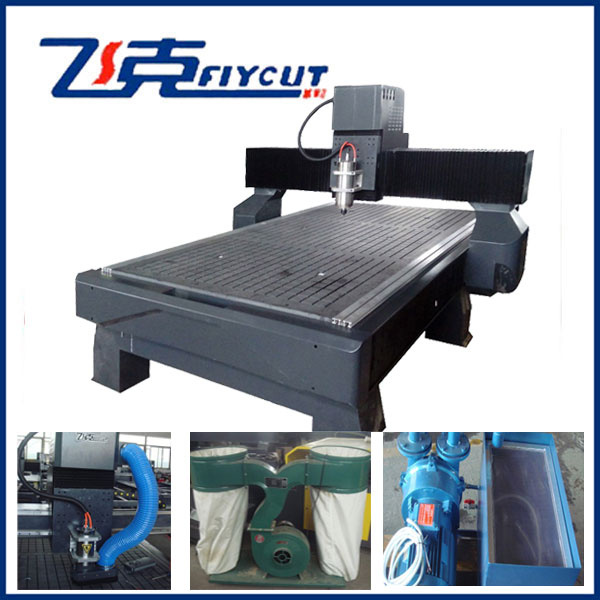

Vacuum Table High Stability with Dust Collector Wood CNC Router
| Price: | US $ 4600-4700/Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Application:
widely used in antique furniture relief carving,wood ornamental engraving,decorative windows and door, wooden crafts,instrument making,3d light box mould making,aluminum plastic panel,etc.
Machine's features:
1. The lathe is founded by industrial steel pipe welding, box-type structure which make it have large bearing capacity,strong rigidity.
2. Special apparatus to eliminate welding stress that ensure machine's high stability.
3 High quality X,Y,Z imported ball screw or high accuracy gear rack transmission system,imported linear square rails.
4 X,Y,Z high quality dust cover, effectively prevent dust come into the inside of machine.
5 Professional CNC control system,compatible with many CAM software such as Type3,artcam,mastercam,UG,pro-e etc.
6. It can work directly once you get the machine.

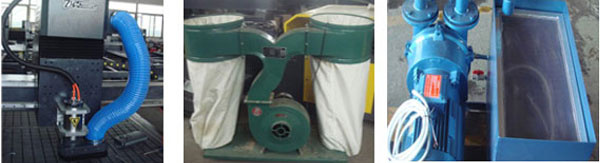

Special configuration:
we can produce larger size or special size according to customer's requirements,
imported spindle,servo driver,auto-change tool system,oil lubrication apparatus,vacuum inhaling table,
dust collector is optional.
Our service:
1.The machine comes with 1 year warranty;
when it exceed warranty period,if the machine's part need to be changed,we can sell to you at our cost price
2. Our technican could provide remote guide online if you need.
3. We are manufacturers specialized in CNC engraving and cutting machine,welcome to customize or distribute our machines.
4. If you have any questions or requirement,feel free to contact us,it's our honour to serve you.
if you have any question,pls contact with me:
alice(overseas department manager)
Tel: +86 13966703473
Professionally produced engraving machine and laser machine factory
alice(overseas department manager)
Tel: +86 13966703473
Professionally produced engraving machine and laser machine factory
| Model | FCT-1313W | FCT-1318W | FCT-1325W | FCT-1530W |
| Machine Size | 1600×1500mm | 1600×2000mm | 1600×2625mm | 1800×3125mm |
| Working Size | 1300×1300×200mm | 1300×1800×200mm | 1300×2500×200mm | 1500×3000×200mm |
| Spindle Power | Water cooling 1500W | Water cooling 2200W | Water cooling 3000W | Water cooling 3000W |
| Spindle rotation | 6000--24000rpm | |||
| Motor driver | Stepper motor driver (China servo motor and Japan servo motor is optional) | |||
| Tool diameter | 3.175, 4, 6, 12.7mm | |||
| Machine structure | Industry square tube structure | |||
| Transmission | TBI ball screw or high accuracy gear rack | High accuracy gear rack | ||
| XYZ rails | PMI square rails | |||
| Dust-proof system | XYZ high quality dust cover | |||
| Machine accuracy | Less than 0.03/300mm | |||
| Engraving speed | 8000mm/min | 12000mm/min | ||
| Data transmission | PC-connection directly | |||
| Support format | G code or HPGL | |||
| Working voltage | AC220V/50Hz or 380V/50Hz | |||
| Net weight | 700kg | 900kg | 1200kg | 1800kg |
| Prod Model: | FCT-1325W |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: | 1 Year |
| Spindle Layout: | Vertical |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS |
