Xi'an LIB Environmental Simulation Industry >> Various Sizes Laboratory Cass Corrosion Salt Spray Test Chamber

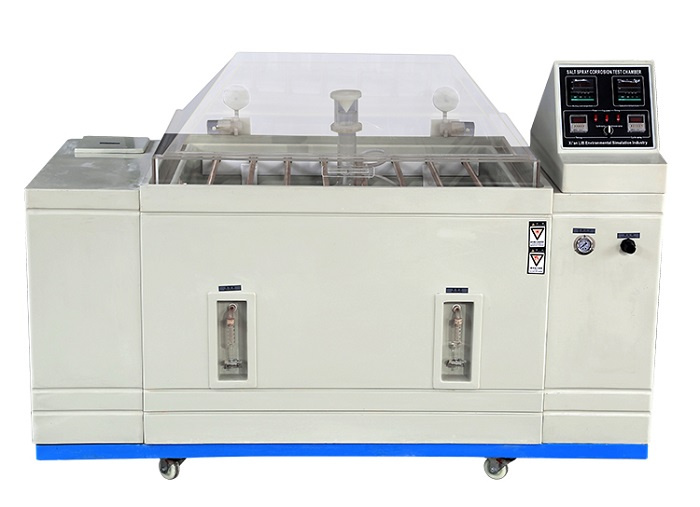

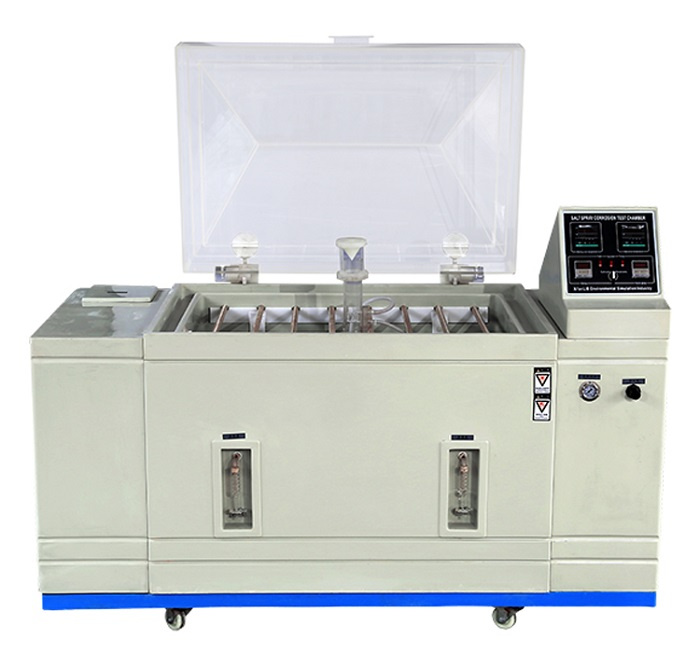

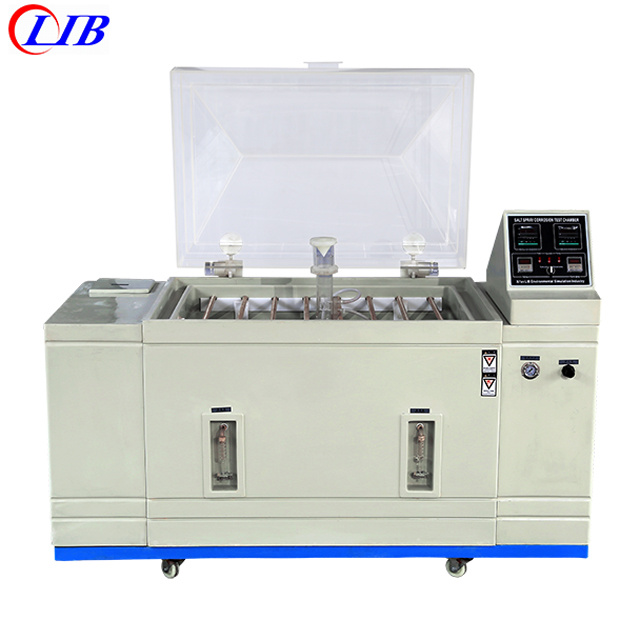

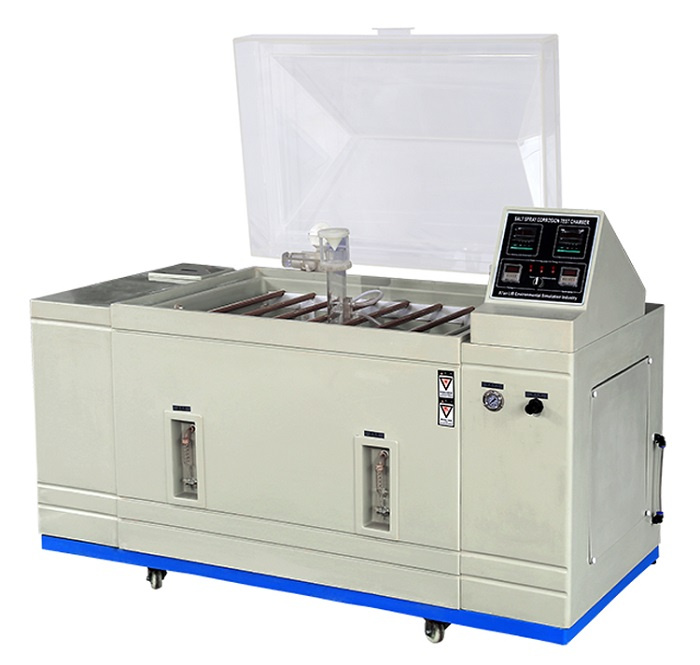

Various Sizes Laboratory Cass Corrosion Salt Spray Test Chamber
| Price: | US $ 2000-4100/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Electronic Power Corrosion Salt Mist Aging Test Machine
1. Specification for Electronic Power Corrosion Salt Mist Aging Test Machine
| Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 | |||||
| Inter size | 450*600*400 | 600*900*500 | 750*1100*500 | 850*1300*600 | 850*1600*600 | 900*2000*600 | |||||
| Overall size | 800*1080*1080 | 870*1400*1150 | 1150*1750*1400 | 1250*2000*1550 | 1250*2300*1550 | 1300*2700*1550 | |||||
| Technical structure | |||||||||||
| Temp range | Ambient ~60ºC | ||||||||||
| Humidity range | 95% ~ 98% RH | ||||||||||
| Temp fluctuation | +/- 0.5 ºC | ||||||||||
| Temp deviation | +/- 2.0 ºC | ||||||||||
| Test time | 1~999 hours, settable | ||||||||||
| Spray deposition | 1~2ml / 80cm2 · h | ||||||||||
| Spray type | Continuous / Periodic | ||||||||||
| Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller | ||||||||||
| Temp sensor | Platinum resistance. PT100Ω/ MV A-class | ||||||||||
| Salt fog collected | With standard funnel and metering cylinder | ||||||||||
| salt water filtration | With water filter near the suction tubes( Avoid the nozzle blockage) | ||||||||||
| Salt water preheating | The temperature for salt water should be equal with workroom temperature | ||||||||||
| Spraying system | Tower spray and nozzle without crystallization(Fog is more fine and uniform distribution) | ||||||||||
| Material | Glass fiber reinforced plastics; (corrosion resistance, Anti-aging, high strength) | ||||||||||
| Sealing | Hydrostatic hood seal | ||||||||||
2. Construation for Electronic Power Corrosion Salt Mist Aging Test Machine
2.1 Test Area
Materials is glass reinforced plastics;
Hydrostatic hood seal;
Corrosion-resistance atomizer tower;
Quartz spray nozzle;
2.2 Control System
P.I.D + S.S.R. microcomputer integrated controller
Control and display teat area temperature
Control and display saturated barrel temperature
3. Packing for Electronic Power Corrosion Salt Mist Aging Test Machine
Export Standard Wooden Case
Can be used for sea, air, railway, truck transportation.
4. Our Team --- LIB INDUSTRY
1). 3 years warranty & life long free maintenance
Training how to install and operate the machine;
Training how to maintain the machine;
Response within 24 hours once got questions from customers;
Send spare parts within 2 days after got notice;
Engineers available to service machines overseas to install and commissioning;
2). Xi'an LIB Environmental Simulation Industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries. LIB adhered to "Quality", "Service", and " Trust". LIB main products are,
Temperature and humidity test chamber
Salt Spray test chamber
Dust / water Ingress test chamber
UV weather test chamber
Xenon arc test chamber
Thermal shock Test chamber
Ozone Test Chamber
Large Walk-in room
and more…
| Prod Model: | S-150 |
|---|---|
| Name: | Corrosion Salt Spray Test Chamber |
| Voltage: | 220V 50Hz |
| Material: | Fiber Glass Plastic |
| Standard: | ASTM B117, ISO9227 |
| Test: | Cass Nss |
| Size: | 108L, 400L, 510L, 1000L |
| Certifiacate: | Ce RoHS |
Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries. Our main products are Temperature and humidity climatic test chamber, Thermal shock chamber, Salt spray test chamber & CCT, Dust and water ingress test chambers, Weathering test chambers, Ozone test chamber, Sulfur dioxide corrosion test chamber, Drying Overs, Walk-in chamber. etc
LIB INDUSTRY undertakes standard and customized climatic chamber projects. The company is involved in all stages including designing, manufacturing, installation, commissioning, service, maintenance and calibration. And can provide effective solutions to any environmental test problem based on years of experience.
We provide various climatic chambers and service to accredited laboratories, manufacturing industry, institute, university, companies and other partners. And gottestimonials from many of our esteemed companies. And got testimonials from many of our customers. Even some customers got many order through pruchasing and using our test chambers. Many customers use our climatic test chambers to inspect their products quality and characteristics. Some kinds of clients to resell our climatic chambers to get a good market.
Our company pre-sales and after-sales service as following
Re-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory.
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.
Our Packages use Export Standard Wooden Box, which can be used for Sea, Air, Railway, Truck transportation.
LIB climatic test chamber have been certified by CE, RoHS, ISO2001 compliance, and CSA certificate.
LIB INDUSTRY undertakes standard and customized climatic chamber projects. The company is involved in all stages including designing, manufacturing, installation, commissioning, service, maintenance and calibration. And can provide effective solutions to any environmental test problem based on years of experience.
We provide various climatic chambers and service to accredited laboratories, manufacturing industry, institute, university, companies and other partners. And gottestimonials from many of our esteemed companies. And got testimonials from many of our customers. Even some customers got many order through pruchasing and using our test chambers. Many customers use our climatic test chambers to inspect their products quality and characteristics. Some kinds of clients to resell our climatic chambers to get a good market.
Our company pre-sales and after-sales service as following
Re-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory.
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.
Our Packages use Export Standard Wooden Box, which can be used for Sea, Air, Railway, Truck transportation.
LIB climatic test chamber have been certified by CE, RoHS, ISO2001 compliance, and CSA certificate.
