| Prod Model: |
IRB |
| Finish: |
Galvanized, Black Raw, Powder Coated |
| Steel Type: |
Steel Q235/Q345 |
| Color: |
Blue, Orange, Yellow, Red, Grey, Silver, etc. |
| Market: |
Hot Sale in Australia, Us, Europe, etc. |
| Warranty: |
5 Years |
| Powder: |
Epoxy Resin |
| Material: |
Steel |
| Structure: |
Rack |
| Mobility: |
Adjustable |
| Height: |
0-5m |
| Closed: |
Open |
| Development: |
Conventional |
| Serviceability: |
Common Use |
| Weight: |
up to 1,000 Kgs Udl/Level |
Product Description

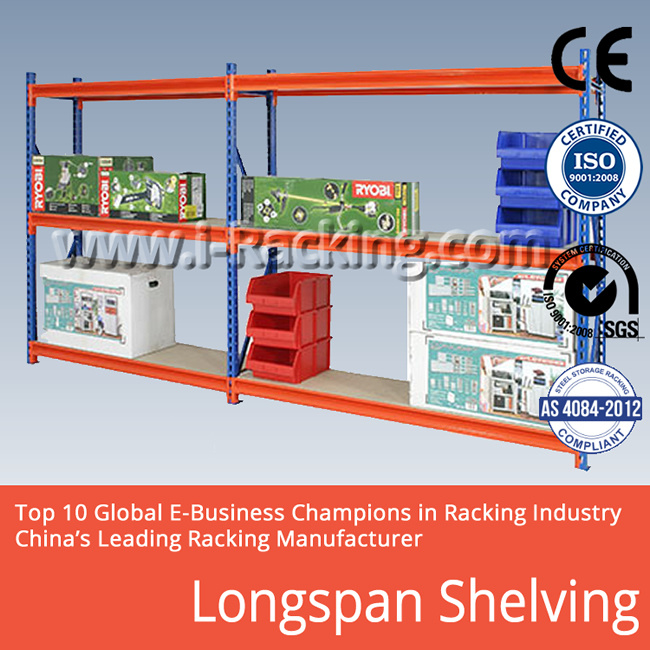

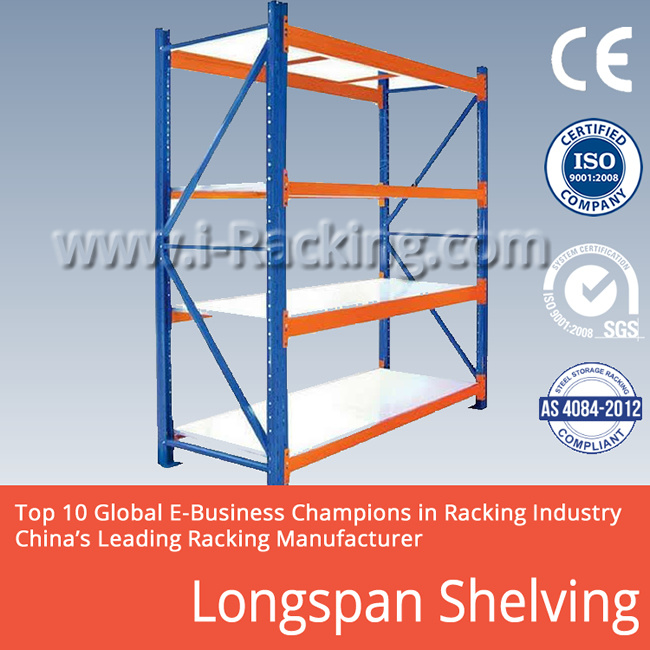

Warehouse Storage Middle Duty Longspan Racking and Shelving
iRacking Longspan Shelving is a strong, durable, versatile and economical shelving system that looks good and minimises lost space from uprights making it ideal for a wide variety of applications from archives to automotive, factories, warehouses, retail, wholesale and commercial.
Features of Longspan Shelving:
- Only high-quality RAW STEEL, by largest steel factories in China, is used for our racking products.
- A big scale of output allows us in a good position to control lower product costs on a basis of same high quality level.
- A wide range of different racking types to suit different storage needs.
- Free but expert advice & proposed racking solutions for your kind reference.
- Quick delivery. Within 25 days for ordinary order quantity.

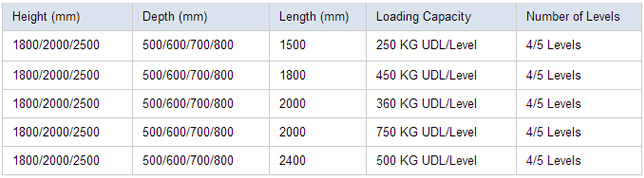

| Loading Capacity | 200-800 kg UDL/level as general, up to 1,000b kg UDL/level as special request |
| Racking Height | 1,800-3,000mm as general, up to 11,000mm as special request |
| Racking Depth | 500-800mm as general, up to 1,200mm as special request |
| Beam Length | 1,500-2,500mm as general, up to 3,000mm as special request |
| Racking Finish | Powder Coated Finish or Galvanised Finish for Steel Panels and upright Frame |
| Packing Details | Standard export seaworthy packing |
*UDL = uniformly distributed load
Product Show
Product Detais:

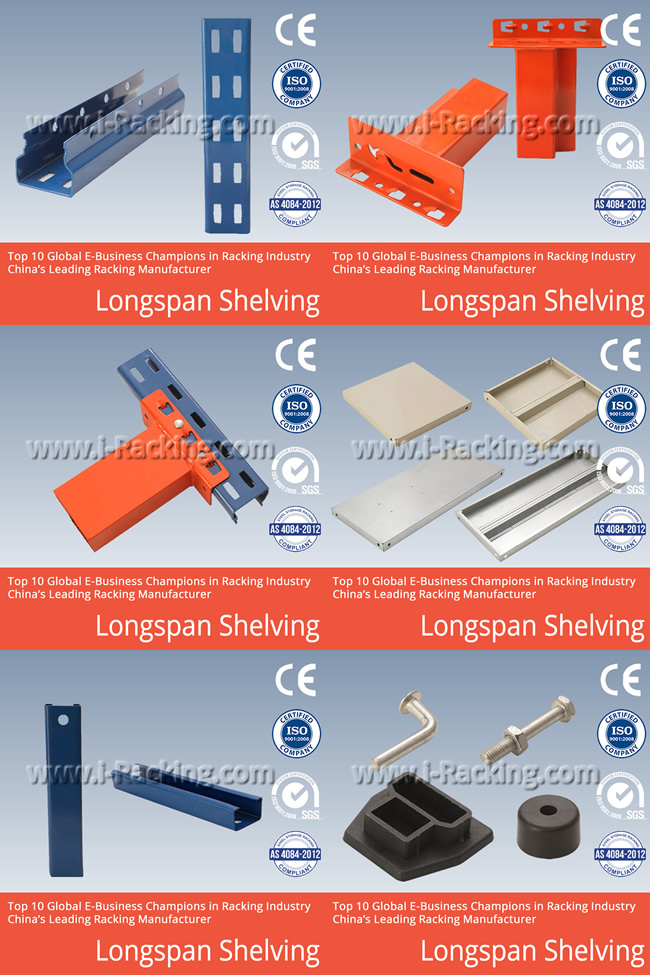

The main components of Longspan Shelving System are uprihts, step beams, connectors, steel panels and accessories.
Step beams are the horizontal components on which the load is directly deposited and on which the shelves are fitted in order to store small-sized products.
iRacking provides an extensive range of step beams which covers any storage need, in terms of size, load type and capacity.
Beams are joined to uprights by means of connectors which fit into upright slots. To different loading capacity, 2-hooker or 3-hooker connectors are adopted.Each beam includes two safety pins to prevent beam accidental dislodgement & falling.
Each level of longspan racks is made up of 2 or 3 steel panels according to the beam length and the weight of the products to be stored. iRacking provides two types of steel panels. Option 1. powder coated finish; option 2. pre-galvanized finish.
Reinforcements backside with much bigger loading capacity.
Who We Are iRacking Co., Ltd. (NANJING IRACKING MANUFACTURING CO., LTD.), located in the city of Nanjing, China, is a professional manufacturer and supplier in the field of shelving & racking systems, storage equipment & accessories, and storage solutions and services.
Not only can we help to improve your partial storage work and operation speed, but also do the whole work of building a logistic center for you. We provide more than storage equipment.
You can send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please inform us of the following information for quick quotation| 1. | Drawing (if available) |
| 2. | Size of your warehouse (width, length, clear height) or your warehouse plan drawing |
| 3. | Size of racking (H*W*L) |
| 4. | How levels of the racking? |
| 5. | Loading capacity of each level? |
| 6. | (RAL) Color you want. |
Nanjing IRACKING Storage Equipment Manufacturing Co., Ltd., also known as IRACKING® Storage Industry, located in the city of Nanjing, China. Our company is a professional manufacturer and supplier in the field of shelving & racking systems, storage equipment & accessories and storage solutions and services.
About IRACKING® .
* A leading & professional manufacturer of storage shelving & racking in China.
* More than 20 years experience in the field of producing storage metal racks
* Our factory covers over 30, 000 square meters.
* Almost 200 professional and experienced staffs.
* Over 50 exclusive manufacturing machines and equipment.
* Production capacity up to 6000 tons every month.
* Thousands of projects with IRACKING® shelving & racking have been built around the world.
* You are warmly welcome to visit us whenever you are available.
About IRACKING® Storage Metal Racks.
* CE certified, are designed and manufacturered to European Racking Code FEM 10.2.02.
* A wide range of racking products to suit different storage needs.
* Competitive prices.
* Please contact us for detailed product catalogue.
About IRACKING® Service.
* Free but expert advice & professoinal storage solutions satisfying specific storage needs.
* Perfect order execuation: Strict quality control, Rapid delivery.
* Quick delivery. Within 25 days for ordinary order quantity.
We sincerely wish there would be an opportunity to work together with your esteemed company and establish a long-term cooperation relationship.
