| Prod Model: |
CA-T |
| Packing Type: |
Box |
| Structure: |
Fixed Board |
| Form: |
All- Packaged Type |
| Operation Voltage: |
Low Voltage |
| Application Range: |
Power Distribution |
| Shell Material: |
ABS |
| Shell Protection Grade: |
IP65 |
| Brand: |
Chana |
Product Description

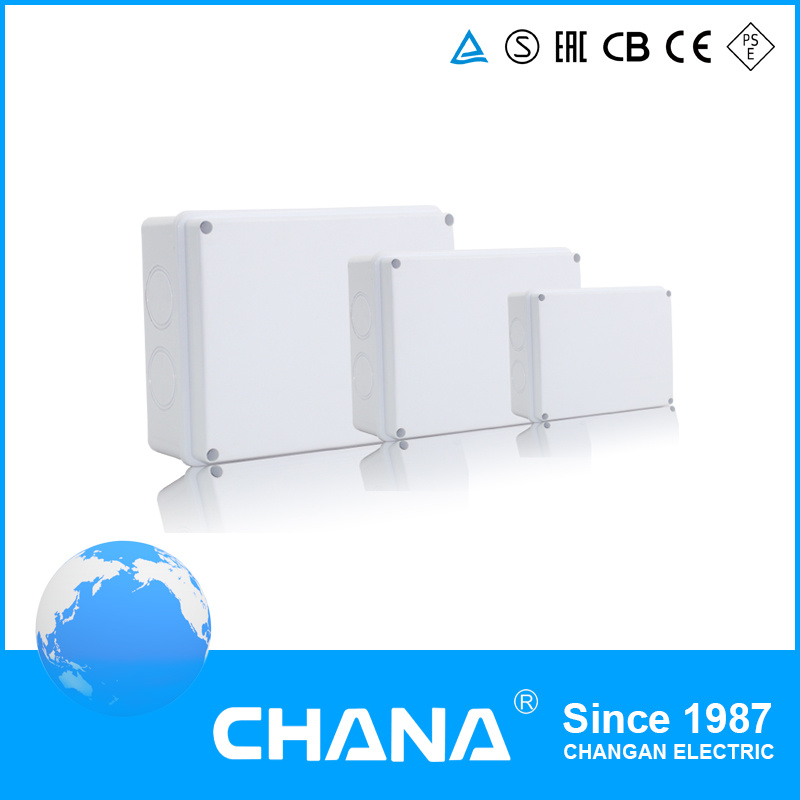

CA-T Series Water-Proof Junction Box 1. DescriptionCA-T series water-proof junction box are fixed with metal screws, which have good impact resistance, corrosion resistance, long life and good insulating properties.
Shell material: ABS;
Impact performance: EN5012 IK07-08;
Standard: IEC 60529;
Temperature range: -20~120ºC.
2. Specification | Model | Dimension | Hole | IP |
| L | W | H |
| CA-T 50x50 | 50 | | 50 | 4 | 55 |
| CA-T 80x50 | 80 | | 50 | 4 | 55 |
| CA-T 85x85x50 | 85 | 85 | 50 | 7 | 55 |
| CA-T 100x100x70 | 100 | 100 | 70 | 7 | 65 |
| CA-T 150x110x70 | 150 | 110 | 70 | 10 | 65 |
| CA-T 150x150x70 | 150 | 150 | 70 | 8 | 65 |
| CA-T 200x100x70 | 200 | 100 | 70 | 8 | 65 |
| CA-T 200x155x80 | 200 | 155 | 80 | 10 | 65 |
| CA-T 200x200x80 | 200 | 200 | 80 | 12 | 65 |
| CA-T 255x200x80 | 255 | 200 | 80 | 12 | 65 |
| CA-T 300x250x120 | 300 | 250 | 120 | 12 | 65 |
| CA-T 400x350x120 | 400 | 350 | 120 | 16 | 65 |

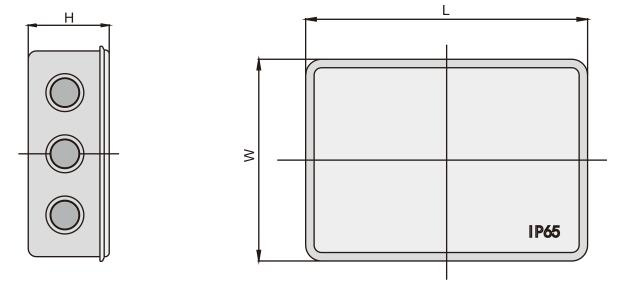

3. Overall and Installation Dimension
4. Certificate
5. Our ServicesA. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We pay high attention to your feed back after receive the goods.
We provide 18 months warranty after goods arrive.
We positively revert your complain within 48hours.
C. Professional Sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary documents.
We are a sales team, with all technical support from engineer team.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
