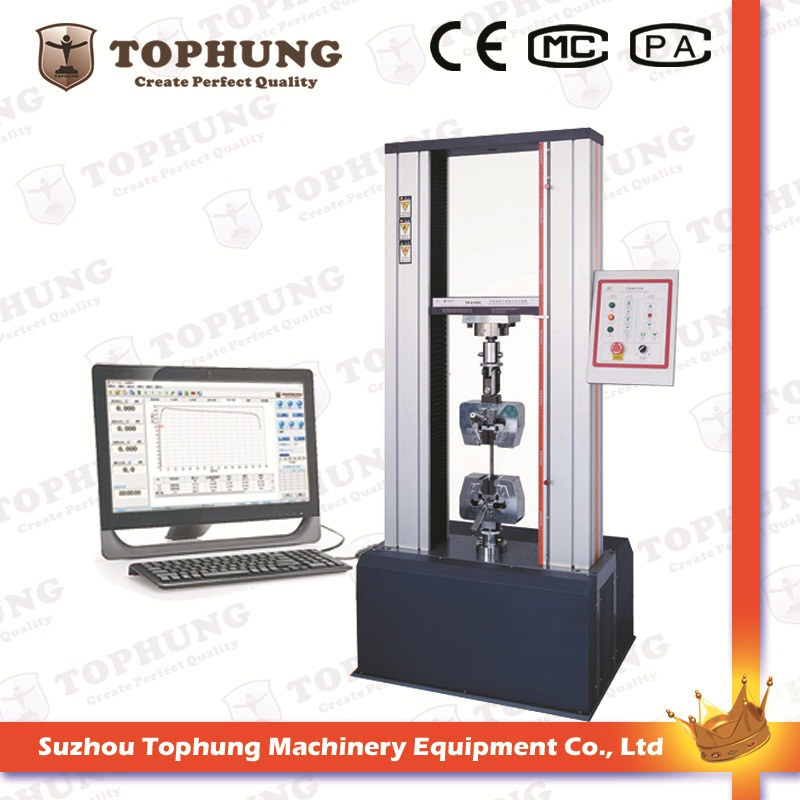

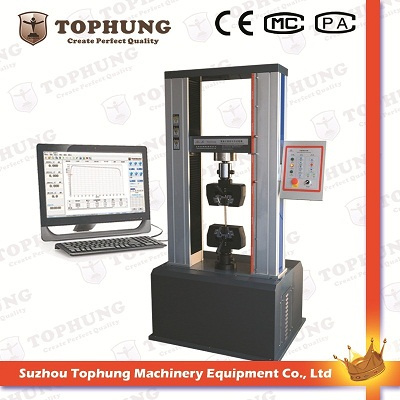

Wire Rope Tensile Testing Bed with Destructive (TH-8100S)
| Price: | US $ 8000-35000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
TH-8100 series
Place of origin: Jiangsu ,china Brand Name : Tophung
Usage: tensile testing machine Stroke:1100mm
Application: steel wire, steel bar steel plate , bolts Capacity:300KN
Accuracy: 0.5 Grade Certificate: CE ISO
Warranty: 1 year ,whole-life service Packaging &delivery
Packaging : standard exporting package Delivery: shipped in 5days after payment
Application:
TH-8100 series universal testing machines are designed and manufacture
according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, auto parts, fasteners ,rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Technical parameter:
| model | 8105 | 8110 | 8120 | 8130 |
| max.load | 50KN | 100KN | 200KN | 300KN |
| load accuracy | ≤0.5 | |||
| load range | 0.2%-100%FS | |||
| load resolution | 1/±500000 | |||
| Disp.resolution | 0.0005mm | |||
| test speed | 0.001-500mm/min | 0.001-250mm/min | ||
| tensile space | 1100mm | |||
| test width | 500mm | |||
| Dimension | 950*650*2000mm | 950*650*2000mm | 1100*750*2050mm | 1200*850*2300mm |
| power supply | 220V 2KW | 220V 2KW | 380v 3kw | 380v 5kw |
| weight | 850kg | 850kg | 1150kg | 1300kg |
Measurement and control system:
1 With protect function of overload, over current, over voltage, displacement limit, emergency stop, etc .
2 The controller with high integration, stable and reliable, easy to adjust.
3 When finished testing, automatic save data and stop.
4 auto-zero measurement system.
Software and software interface
1 Based on Windows operation platform, the software adopting modulus design, with simple operation and powerful functions
2 The control panel has defined all the control parameters, data dealing method and report content and form, different test can be set according to the control panel.
3 Program adopting open database structure, integrated the GB, ISO,ASTM,JIN, DIN testing methods and can customized according to special requirements
4 With internet interface, can transmit, save and print data.
5 Can edit and set the report form freely, also can print the testing data

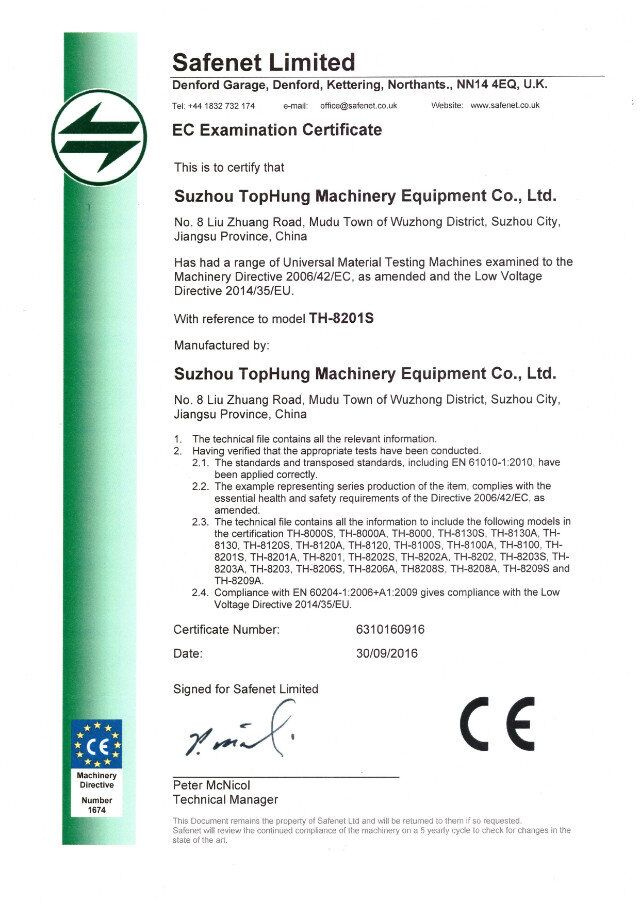

certificate:
Packaging & Delivery
Packaging Details:
1. inner package: dust-proof plastic bag
2. outer package: standard export wooden case with pallet
3. suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer's requirements.)
4. Packing size:
5. Gross weight:
Delivery Detail: 15 working days
Contact information:
Dear customer,
if you need our testing machines, please send us inquiry without any hesitate ! We will supply our best service for you !
-------------
Cherry lee
Suzhou Tophung machinery equipment Co., Ltd.
Fax:+86-512-67075929
Tel:+86-512-66582803
| Prod Model: | TH-8100S |
|---|---|
| Displacement Resolution: | 0.0005mm |
| Deformation Resolution: | 0.0001mm |
| Deformation Speed Range: | 0.02-5%Fs/S |
| Displacement Speed: | 0.05-500mm/Min |
| Effective Tensile Width: | 500mm |
| Effective Space: | 1100mm |
| Dimension: | 950×650×2000mm |
| Power: | AC 220V±10%,50/60Hz |
| Type: | Universal Testing Machine |
| Weight: | 500-1000Kg |
| Power Source: | AC380V |
| Display: | Computer Display |
