Qingdao Rayfore Container lndustry Co., Ltd. >> Yonth Hotel Modular House Container Home

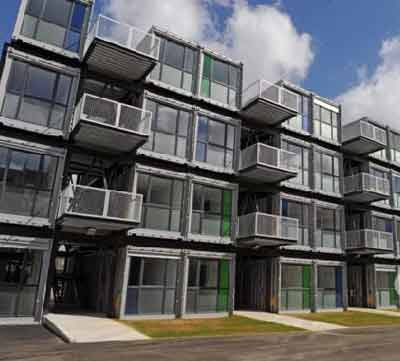

Yonth Hotel Modular House Container Home
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Container Prefabricated House featured with high, they can be widely usded as: Construction site homes, Temporary Offices, Temporary Dormitory, Camp Work, Additional Floor and so on.
1. The container houses can be transportated as a whole easliy for many times.
2. It is easy to ship, its wall and roof panel can be choosen from sandwich panel with EPS PU or Rock Wool, and its inner board is wooden board or plasterborad. After folding for shippment, the packing size is very small and 6 units of container houses can be loaded into a 40 feet container.
3. Installation of the Container Prefabricated House is time-saving, the roof, floor and electricity system are prefabricated and we will send experienced engineers to there for guding the installation.
4. The foundation of container house is easy to make, only tight and flat ground is enough and no need to do the concrete foundation.
Container
Office living work site containers 300 cm X 700 cm X 20 cm
Technical properties of module steel system CLIMA office living containers
The products that are manufactured by our side are TSEK and ISO 9001- quality certified.
Technical data: Snow load 80 kg/ m 2, external wall heat conducting coefficient k: 0.73 kcal/ m 2 hc, moving floor load is 200 kg/ m 2.
1-Walls: At the outer surfaces of the external walls, DKP trapezoid sheet metal in 35 mm pitch depth, as heat insulation expanded polystyrene foam( 10/12 kg/ m 3) in 40 mm thickness is being used at internal and external walls.
2. Roof coating: It is galvanized sheet metal of trapezoid cross section in 0.55 mm thickness and 27 mm pitch depth, the rain waters are evacuated by corner columns.
3-Ceiling coating: Fiber glass of 80 mm thickness for heat insulation and for ceiling coating PVC panels is being used.
4-Doors: The door chassis are made of steel and external doors are insulated metal doors, internal doors are MDF contra press door. The dimensions of external doors are 800 X 1950 mm.
5-Windows: The window joineries are PVC based; Single glass in 4 mm thickness is installed. The window dimensions are 90/ 110 cm and they may vary upon request. In the units for ventilation, aluminum shutters or fans are being used.
6-Floor: Marley ( folio coated on top of 300 x 300 X 1.6 mm) is being used as floor coating over the cemented chipboard plates in 16 mm thickness installed on horizontal profiles.
7-Sanitary installations: The installations are made plaster depth. Clean water piping are FIRAT brand. The tea furnace is chrome steel kitchen sink. Wash basins and lavatory bowls are DOGVIT brand.
8-Electrical installation: The electrical installation is hidden, laid in plaster depth. The cables are HES brand, for the fuses Siemens automates are used. For the sockets cables of 2 X 2.5, lighting 2 X 1.5 are used. The keys and sockets are VIKO brand. In each room, there is one key, one socket and one telephone socket. Split air conditioning installation will be made at the container.
9. Paint: At the external surfaces of the container, double layer industrial coating and double layer industrial paint is being applied.
10-Dimensions: The 1 type containers are in the dimension of 3.00 X 7.00 X 2.6 and the 2 ND type containers are 2.40 x 6.00 X 2.6.
11-Lifting system: The loading work is being made by connection of the steel cables with equal distance to the hidden eye bolts mounted on corners to the locks. As the WC, shower containers are manufactured from gelatinized sheet metal without insulation they may also be manufactured with insulation. The containers can be manufactured two or more layered upon request.
The reinforced concrete of the floor, heating and cooling installations and external building lines, accommodation between cities, lodging, transportation and transportation insurance belongs to customer.
1. The container houses can be transportated as a whole easliy for many times.
2. It is easy to ship, its wall and roof panel can be choosen from sandwich panel with EPS PU or Rock Wool, and its inner board is wooden board or plasterborad. After folding for shippment, the packing size is very small and 6 units of container houses can be loaded into a 40 feet container.
3. Installation of the Container Prefabricated House is time-saving, the roof, floor and electricity system are prefabricated and we will send experienced engineers to there for guding the installation.
4. The foundation of container house is easy to make, only tight and flat ground is enough and no need to do the concrete foundation.
Container
Office living work site containers 300 cm X 700 cm X 20 cm
Technical properties of module steel system CLIMA office living containers
The products that are manufactured by our side are TSEK and ISO 9001- quality certified.
Technical data: Snow load 80 kg/ m 2, external wall heat conducting coefficient k: 0.73 kcal/ m 2 hc, moving floor load is 200 kg/ m 2.
1-Walls: At the outer surfaces of the external walls, DKP trapezoid sheet metal in 35 mm pitch depth, as heat insulation expanded polystyrene foam( 10/12 kg/ m 3) in 40 mm thickness is being used at internal and external walls.
2. Roof coating: It is galvanized sheet metal of trapezoid cross section in 0.55 mm thickness and 27 mm pitch depth, the rain waters are evacuated by corner columns.
3-Ceiling coating: Fiber glass of 80 mm thickness for heat insulation and for ceiling coating PVC panels is being used.
4-Doors: The door chassis are made of steel and external doors are insulated metal doors, internal doors are MDF contra press door. The dimensions of external doors are 800 X 1950 mm.
5-Windows: The window joineries are PVC based; Single glass in 4 mm thickness is installed. The window dimensions are 90/ 110 cm and they may vary upon request. In the units for ventilation, aluminum shutters or fans are being used.
6-Floor: Marley ( folio coated on top of 300 x 300 X 1.6 mm) is being used as floor coating over the cemented chipboard plates in 16 mm thickness installed on horizontal profiles.
7-Sanitary installations: The installations are made plaster depth. Clean water piping are FIRAT brand. The tea furnace is chrome steel kitchen sink. Wash basins and lavatory bowls are DOGVIT brand.
8-Electrical installation: The electrical installation is hidden, laid in plaster depth. The cables are HES brand, for the fuses Siemens automates are used. For the sockets cables of 2 X 2.5, lighting 2 X 1.5 are used. The keys and sockets are VIKO brand. In each room, there is one key, one socket and one telephone socket. Split air conditioning installation will be made at the container.
9. Paint: At the external surfaces of the container, double layer industrial coating and double layer industrial paint is being applied.
10-Dimensions: The 1 type containers are in the dimension of 3.00 X 7.00 X 2.6 and the 2 ND type containers are 2.40 x 6.00 X 2.6.
11-Lifting system: The loading work is being made by connection of the steel cables with equal distance to the hidden eye bolts mounted on corners to the locks. As the WC, shower containers are manufactured from gelatinized sheet metal without insulation they may also be manufactured with insulation. The containers can be manufactured two or more layered upon request.
The reinforced concrete of the floor, heating and cooling installations and external building lines, accommodation between cities, lodging, transportation and transportation insurance belongs to customer.
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Size: | 20ft 40ft |
| Place Of Origin: | Shandong, China (Mainland) |
| Use: | Carport, Hotel, House, Kiosk, Booth, Office, Sentry |
| Certificate: | CE, ISO9001, and Customers Requests |
| Design: | Provided or Customer Offer |
| Quality: | Durable, Strong |
| Material: | Steel Structure |
| Usage: | Dormitories |
| Certification: | ISO |
Qingdao Rayfore Industry Co., Ltd. is a container factory, engaged in new and used container sales, container house, prefabricated house, warehouse, steel structure and manufacture business. Rayfore's image and services will give you a very warm and comfortable life.
"High efficiency, good quality and thoughtful service" is our primary management purpose. Durable, reliable, healthy and environmentally-friendly materials with low carbon exhaust boast more advantageous than common container houses, which use sandwich boards or some other construction materials.
Situated in a beautiful harbor city of Qingdao, Shandong Province, China, our company is about an hour's driving from the international airport. Taking the geographic location advantage, we keep researching and trying to develop a new market in China and overseas markets. We have founded many branches in many seaport cities of China, such as Shanghai, Ningbo, Shenzhen and Hong Kong. Our container houses are exported to clients in the USA, the European Union, South Africa, Russia and other countries and regions.
We are sincerely looking forward to cooperating with any overseas clients based on mutual benefits.
"High efficiency, good quality and thoughtful service" is our primary management purpose. Durable, reliable, healthy and environmentally-friendly materials with low carbon exhaust boast more advantageous than common container houses, which use sandwich boards or some other construction materials.
Situated in a beautiful harbor city of Qingdao, Shandong Province, China, our company is about an hour's driving from the international airport. Taking the geographic location advantage, we keep researching and trying to develop a new market in China and overseas markets. We have founded many branches in many seaport cities of China, such as Shanghai, Ningbo, Shenzhen and Hong Kong. Our container houses are exported to clients in the USA, the European Union, South Africa, Russia and other countries and regions.
We are sincerely looking forward to cooperating with any overseas clients based on mutual benefits.
