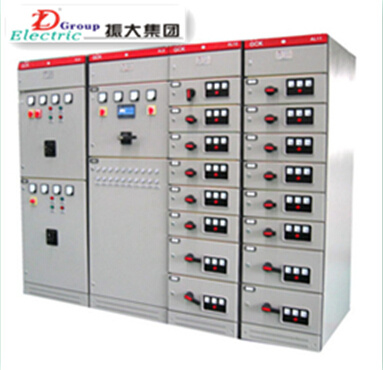

Zdmgb Electrical Motor Soft Start Cabinet
| Price: | US $ 1200/Set |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
ZDMGB digital soft starter is the new hi-tech products especially designed by this company for the users. The structure is simple, easy operation, full function, small operation power, small size, energy-saving, and long life. It overcomes the defects caused by the operation of auto-transformer and resistance buck. And it also overcomes the defects of big size, complex line, and high energy-consuming, high rates maintenance. And it is the ideal product to replace the traditional starter.
Main Characteristics
1. The starting loop current is less than 1.5 times of the rated current of motor
2. Voltage drop of power system can be set from 5% to 12% when starting;
3. Low request for grid capacity can reduce the installation capacity of Transformer, and reduce investment of equipment;
4. High starting torque, can meets the demands of different loads;
5. Can start continuously, high repetitive precision, no over-voltage during switch operation;
6. No harmonics, has very little influence on power quality, has low voltage drop, and no additional active power loss;
7. All sealed,no environmental restriction,safe & reliable,long life,exempt from maintenance;
8. Small volume, convenient installation and use.
Main Characteristics
1. The starting loop current is less than 1.5 times of the rated current of motor
2. Voltage drop of power system can be set from 5% to 12% when starting;
3. Low request for grid capacity can reduce the installation capacity of Transformer, and reduce investment of equipment;
4. High starting torque, can meets the demands of different loads;
5. Can start continuously, high repetitive precision, no over-voltage during switch operation;
6. No harmonics, has very little influence on power quality, has low voltage drop, and no additional active power loss;
7. All sealed,no environmental restriction,safe & reliable,long life,exempt from maintenance;
8. Small volume, convenient installation and use.
| Model | Power(KW) | Rated current(A) | External dimension (mm) | Installation dimension(mm) | weight(kg) | ||||
| A | B | C | D | E | F | ||||
| ZDMGB-15~30 | 15,17,22,30 | 32,37,54,75 | 1000 | 500 | 350 | 35 | 250 | 440 | |
| ZDMGB-37~75 | 37,45,55,75 | 86,97,130,155 | 1400 | 600 | 430 | 35 | 345 | 390 | |
| ZDGB-90 | 90 | 180 | 1600 | 660 | 530 | 35 | 440 | 500 | 90 |
| ZDGB-110 | 110 | 220 | 1600 | 660 | 530 | 35 | 440 | 500 | 90 |
| ZDGB-132 | 132 | 260 | 1600 | 660 | 530 | 35 | 440 | 500 | 120 |
| ZDGB-160 | 160 | 318 | 1600 | 660 | 530 | 35 | 440 | 500 | 120 |
| ZDGB-225 | 225 | 460 | 1600 | 660 | 530 | 35 | 440 | 500 | 145 |
| ZDGB-250 | 250 | 490 | 1800 | 660 | 530 | 35 | 500 | 450 | 145 |
| YKGB-320 | 320 | 630 | 1800 | 660 | 530 | 35 | 500 | 450 | 170 |
| YKGB-400 | 400 | 790 | 2000 | 800 | 600 | 35 | 400 | 610 | 200 |
| YKGB-500 | 500 | 980 | 2000 | 800 | 600 | 35 | 400 | 610 | 200 |
| YKGB-600 | 600 | 1100 | 2000 | 800 | 600 | 35 | 400 | 610 | 200 |
| YKGB-810 | 810 | 1400 | 2000 | 800 | 600 | 35 | 400 | 610 | 200 |
| Prod Model: | ZDMGB |
|---|---|
| Markets: | North America,Africa,Oceania,Mid East |
| Indoor Metal-Clad Enclosed Switchgear: | Metal Clad Switchgear |
| Low Voltage Switchgear: | IP31or IP54 |
| Material: | Steel |
| Type: | Resistance Box, Meter Box |
| Structure: | Rack |
