| Prod Model: |
K3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rack Unit: |
18u 22u 27u 32u 37u 42u 47u |
| Loading Capacity: |
1000kg |
| Material: |
SPCC Cold Rolled Steel |
| Width: |
600mm,800mm |
| Depth: |
800mm,1000mm |
| Color: |
Black,Gray,White |
| Side Panel: |
Lockable and Removable |
| Surface Finish: |
Powder Coating |
| Optional Service: |
OEM |
| Certificate: |
ISO |
| Type: |
Server Cabinet |
| Fan Number: |
Two |
| Usage: |
Network Integration System |
| Certification: |
RoHS |
| Installation: |
Vertical |
| Condition: |
New |
| Capacity: |
18u,22u,27u,32u,37u,42u |
Product Description

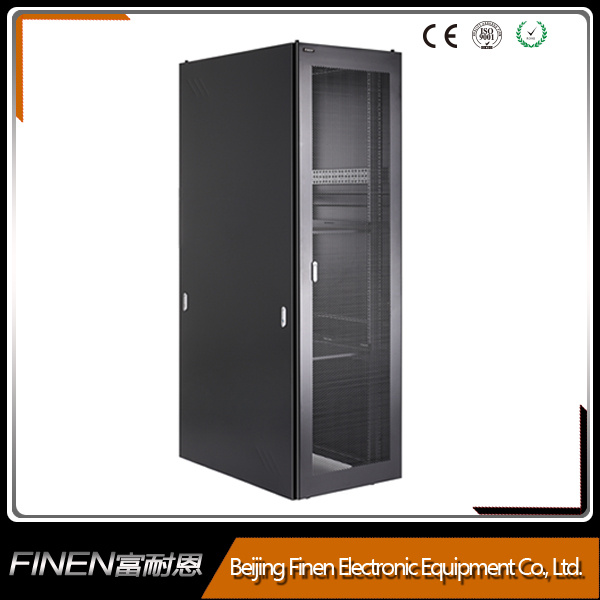

42u Rack Enclosure 19'' Server Cabinet
1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery: 7-10 days
4). High quality & reasonable price
1. Product Information
1). Feature
-Hexagonal mesh front door with moon lock
-Double hexagonal mesh rear door with moon lock
-Zinc Plated mounting profile
-Adjustable feet and heavy duty castors are supplied
Cable entry on the top cover and base plate with adjustable size
-Optional installation of plinth for extra ventilation and ease of
Cabling
-Efficient and reliable cabinet connection with use of baying kit
-Removable and lockable side panels, easy to install and remove, suitable for Cold Channel System
2). Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
3). Main Material: SPCC Cold rolled steel
4). Surface Finish: Degreasing, Pickling, Phosphating, Powder coating.
5). Degree of Protection: IP20
6). Loading Capacity: 1000kg
2. Nework Cabinet Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
3. Who are we?
1). A manufacturer of server rack and network cabinet with 30 years experience
2). 53 skilled engineer and more than 400 workers
3). 35000 square meters workshop
4). Customizing services, OEM services, etc.
4. Other choice
A3 series cabinet- vented flat mesh front and rear door
AS series cabinet-toughened glass front door and flat mesh rear door
WL series cabinet- wall mounted cabinet(4U 6U, 9U, 12U)
All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors
| No. | Component name | Quantity | Unit | Material | Remark |
| 1 | Top Cover | 1 | pc | SPCC cold rolled steel T1.0 |
|
| 2 | Fan Unit | 1 | pc | --- | With 2/4 fans |
| 3 | Mounting Profile | 4 | pc | Zinc plated T2.0 |
|
| 4 | Mounting angle | 6 | pc | SPCC T1.2 | 6pcs |
| 5 | Frame | 2 | pc | SPCC T1.2 |
|
| 6 | Lock | 6 | pcs | --- | Moon locks |
| 7 | Front Door | 1 | pc | SPCC T1.2 | Hexagonal mesh |
| 8 | Rear Door | 1 | pc | SPCC T1.0 | Double Hexagonal mesh |
| 9 | Side Panel | 2 | pcs | SPCC T1.0 | Removable,lockable |
| 10 | Bottom Panel | 1 | pc | SPCC T1.0 |
|
| 11 | Screw | 20 | pcs | --- | 50pcs for over 30U |
| 12 | Square Nut | 20 | pcs | SPCC T1.0 | 50pcs for over 30U |
| 13 | Castor | 4 | pcs | Steel |
|
| 14 | Adjustable leveling feet | 4 | pcs | Steel |
|
| 15 | Other components are available according to request |
| Specification |
| Model No. | Capacity(U) | Size(mm) | | K36842 | 42 | 600mm x 800mm | | K36042 | 600mm x 1000mm | | K38042 | 800mm x 1000mm |
|
