| Price: | US $ 2290-2480/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | SK005-1 |
|---|---|
| Name: | 8 Functions Electric Hospital Bed |
| Certifications: | Ce/FDA/ISO |
| Spare Parts: | 1% |
| User's Manual: | Available |
| Sample: | Available |
| Service Manual: | Available |
| Warranty: | 2 Years |
| Service: | Lifetime |
| Factory Type: | Over 13 Years Manufacturer |
| Factory Location: | 2 Hours Drive From Shanghai |
| Material: | Metal |
| Type Of Hospital Bed: | Electric Bed |
| Folded: | Unfolded |
| Using Ambient: | Hospital |
| Numbers Of Function: | Five-function |
| Certification: | ISO13485 |

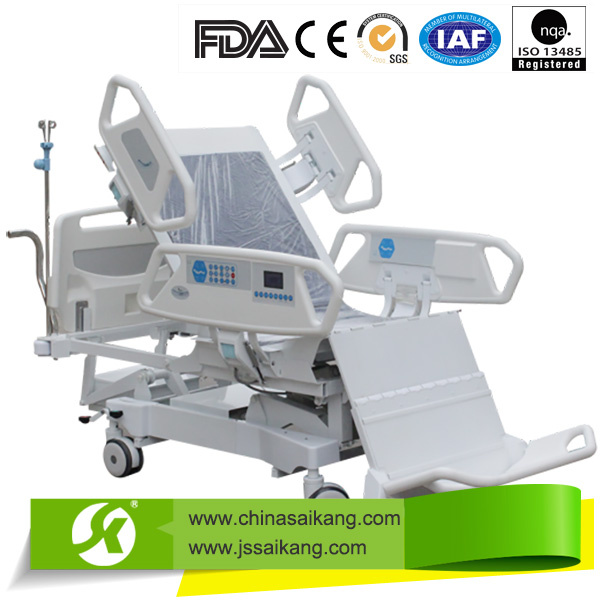

8 Functions Electric Physiotherapy Hospital Bed With Touch Panel Sale
Introduction:
Used in ICU room, advanced ICU Bed with eight functions.
Standard Parameters:
Parameters | Size |
Overall Length(extend) | 2020mm |
Overall Length(not extended) | 1920mm |
Overall Width | 995mm |
Patient Platform Length(extended) | 1920mm |
Patient Platform Length(not extended) | 1820mm |
Patient Platform Width | 820mm |
Maximum Safe Load | 250kg |
Foot-part Decline | 0°- 90° |
Caster Diameter | 150mm |

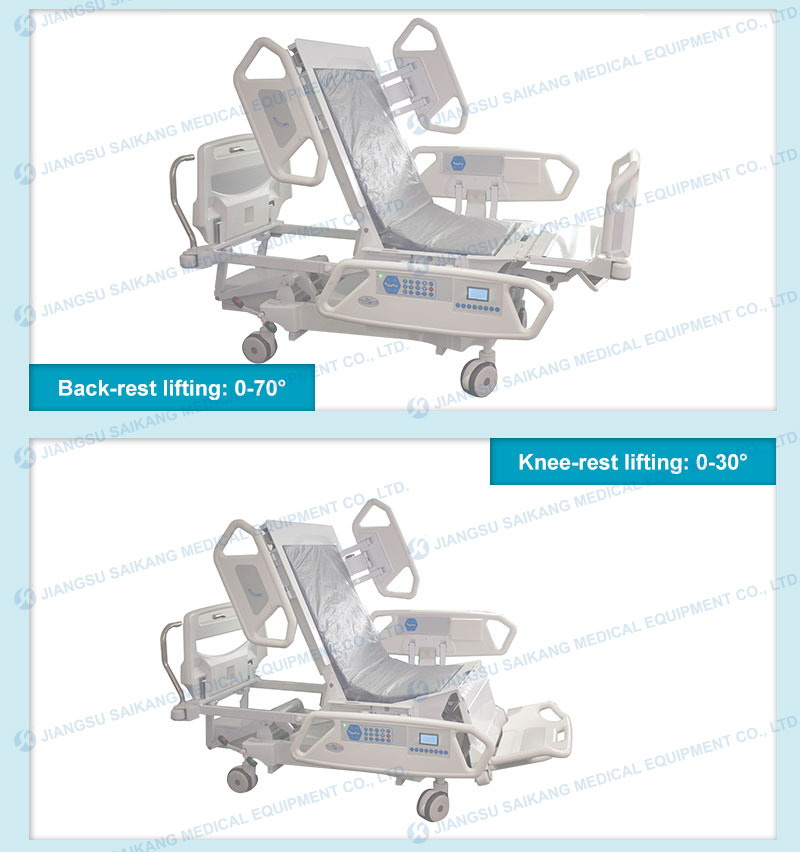

Back-rest Lifting | 0°- 70° |
Knee-rest Lifting | 0°- 30° |

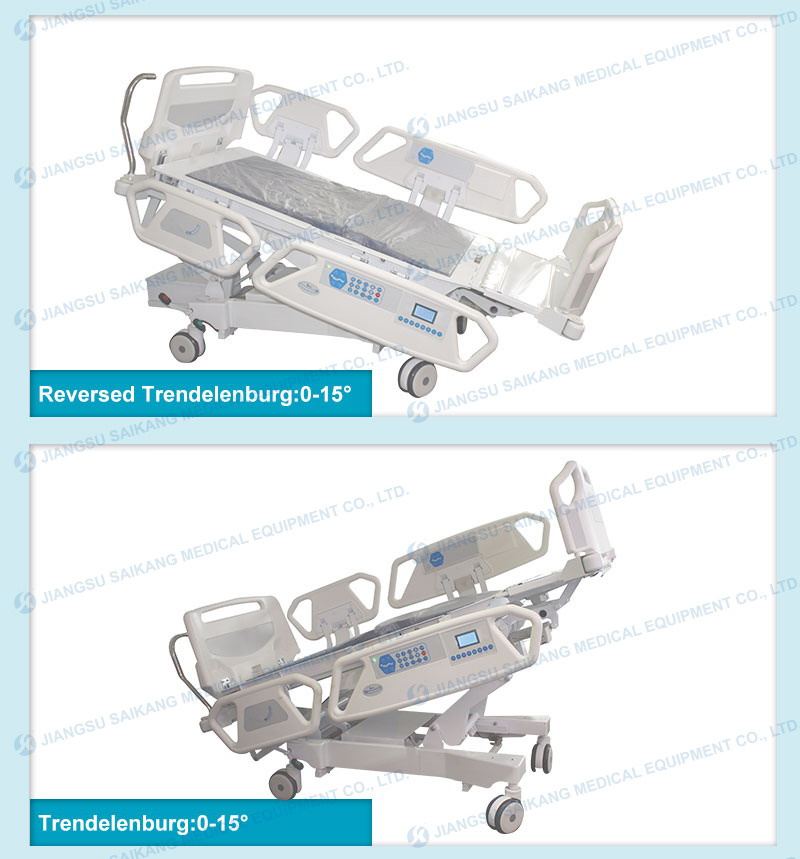

Reversed Trendelenburg | 0°- 15° |
Trendelenburg | 0°- 15° |

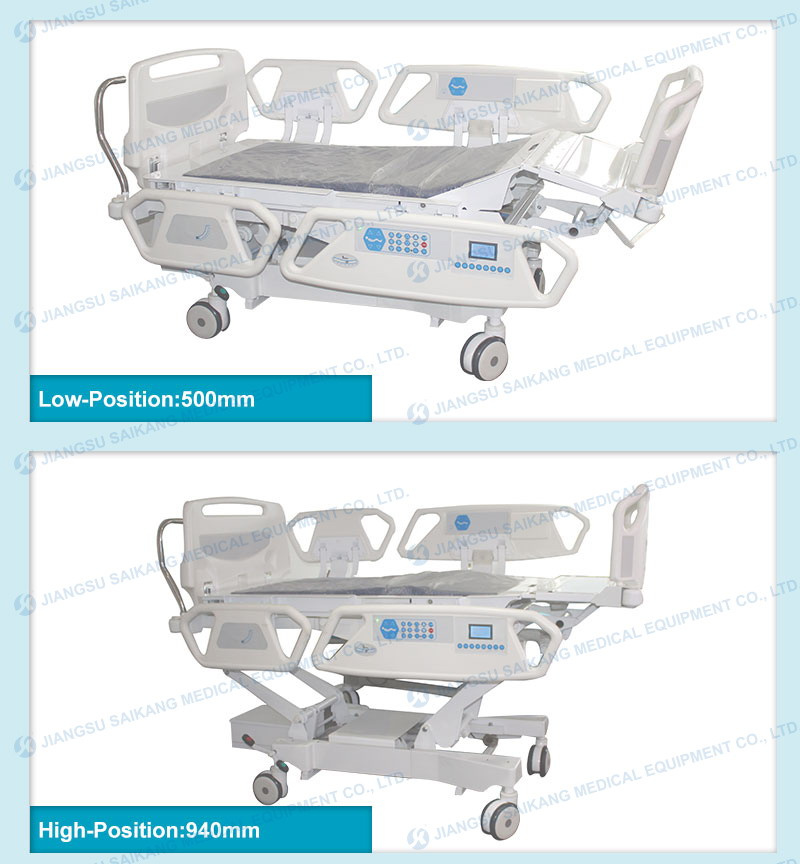

Height Adjustment | 500-940mm |
Standard Functions:
* Linak motor and control box
* Supplied with back-up battery switch

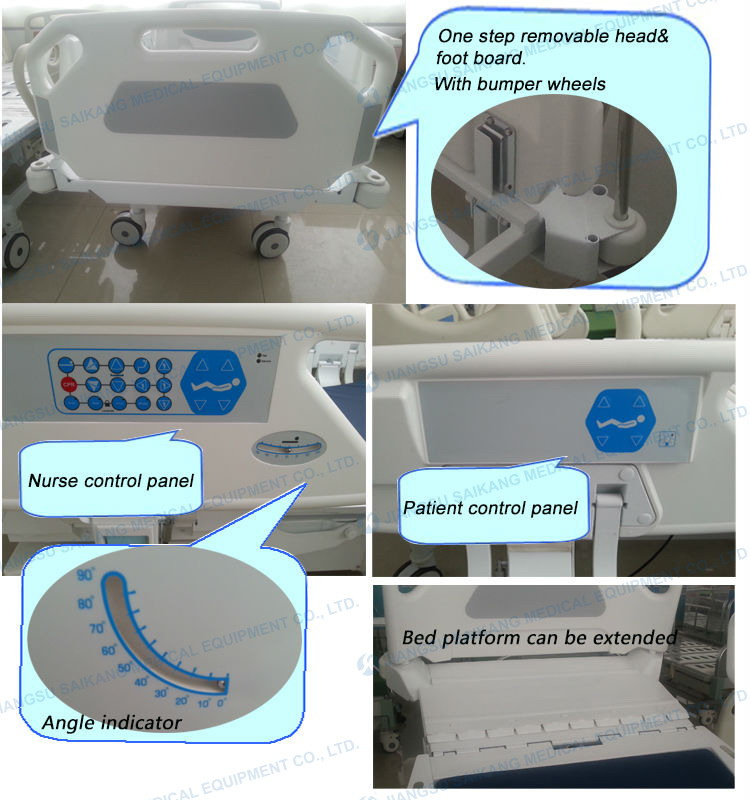

* One step detachable head and foot board
* CPR handle, dual side, with clear red mark.
* Electric CPR-Instant electrically release of back part
* Manual CPR-Instant manually release of back part
* Remote controller built in railing, both side: inside for patient easy control
Outside for nurse control
*Title angle indicator in railing: one for backrest, one for trendelenburg

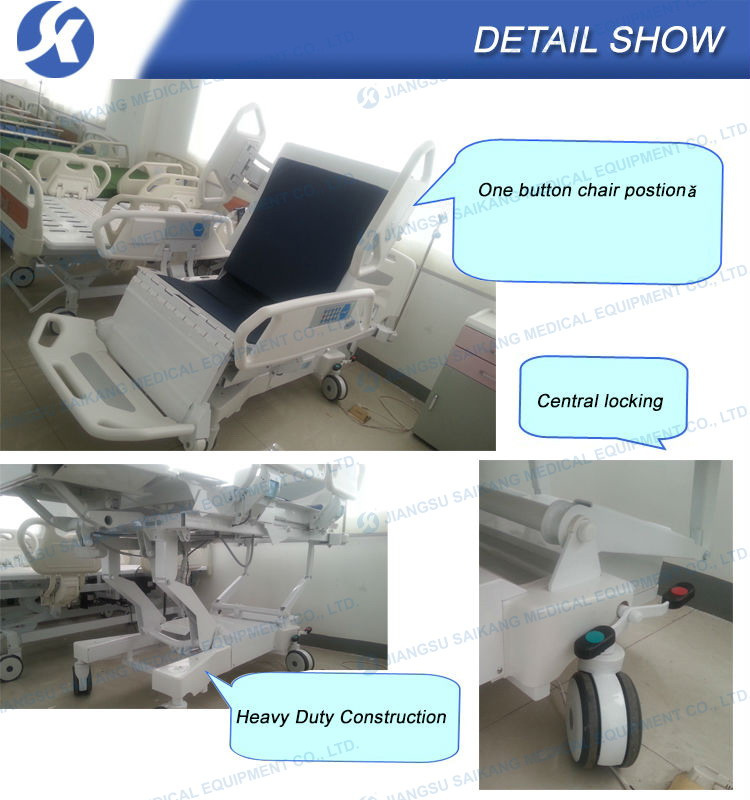

* One button chair position
* Bed length can be extended when needed
*Chrome plating push handle, 2 position adjustable
*Central brake system with 6" wheels
* Integrated base with all cable and motor inside, the bed can be washed
* X-ray translucent back part, C-arm function available.
* Weighing System: Its in-bed scale system increase efficiency by taking accurate
weight readings with the patient in any position. Weight readings system, LCD
display on side railing
Functions Show:
*LCD Touch Screen(Optional)
1. Chinese and English optional
2. Weight reading system
3. Patient information
4. Patient records
*Button:
1. Master: For lock/unlock all function
2. Head: For lock/unlock back rest adjustment
3. Knee: For lock/unlock knee rest adjustment
4. Hi-Low: For lock/unlock height adjustment
5. CPR: For all functions go back to origin
