| Prod Model: |
Network Cabinet |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Status: |
Stock |
| Cabinet Standard: |
ISO9001:2000 |
| Material: |
SPCC Quality Cold Rolled Steel,SPCC Cold Rolled |
| Size: |
19'' 18-48u |
| Thickness: |
Mounting Profile:2.0mm, Others:1.2mm |
| Surface Treatment: |
Degreasing,Pickling,Phosphating,Powder Coat |
| Height: |
18-48u |
| Width: |
600&800mm |
| Depth: |
600-1000mm |
| Static Loading Capacity: |
800-1000kg |
| Type: |
Network Cabinet |
Product Description

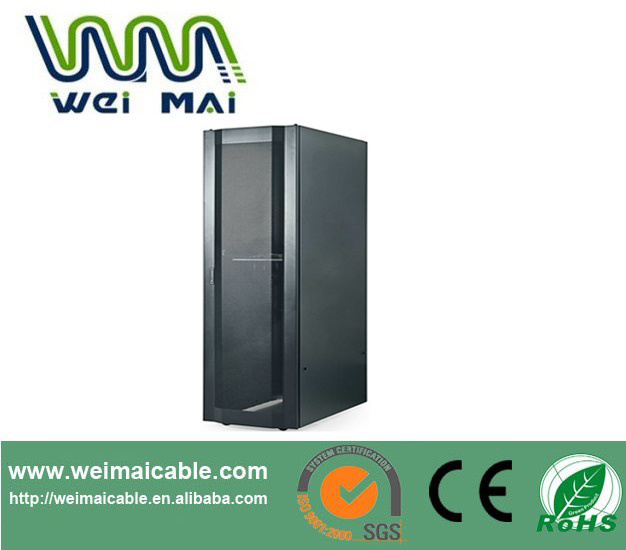

Network Cabinet
Specifications
1. Nice appearence;
2. High quality;
3. Competitive price;
4. Best service.
1. Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41494, PART1, DIN41494, PART7, ETSI standard.
It is compatible with19" international standard, metric standard.
2. Materials: SPCC quality cold rolled steel, mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.
3. Arc vented front door and rear solid metal door.
4. Adjustable feet and heavy duty castors are available simultaneously.
5. Cable entry on the top cover and bottom panel with adjustable sizes.
6. Removable side panels to maintain easily.
7. Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation.
8. Optional accessories for fan unit, fixed shelf, sliding shelf, PDU and cable manager, ect.
9. Surface treatment: All cabinets have been degreasing, pickling, rust phosphating, pure water cleaning, static electricity plastic painting.
| Description | Width | Depth | High | Carton weight |
| 18U | 600 mm | 600 mm | 1000 mm | 48 KG |
| 22U | 600 mm | 600 mm | 1200 mm | 58 KG |
| 27U | 600 mm | 600 mm | 1400 mm | 69 KG |
| 32U | 600 mm | 600 mm | 1600 mm | 80 KG |
| 37U | 600 mm | 600 mm | 1800 mm | 91 KG |
| 37U | 600 mm | 800 mm | 1800 mm | 107 KG |
| 37U | 800 mm | 960 mm | 1800 mm | 122 KG |
| 37U | 800 mm | 600 mm | 1800 mm | 107 KG |
| 37U | 800 mm | 800 mm | 1800 mm | 133 KG |
| 37U | 800 mm | 960 mm | 1800 mm | 153 KG |
| 42U | 600 mm | 600 mm | 2000 mm | 101KG |
| 42U | 600 mm | 800 mm | 2000 mm | 119 KG |
| 42U | 600 mm | 960 mm | 2000 mm | 133 KG |
| 42U | 800 mm | 600 mm | 2000 mm | 119 KG |
| 42U | 800 mm | 800 mm | 2000 mm | 140 KG |
| 42U | 800 mm | 960 mm | 2000 mm | 161 KG |
| 47U | 600 mm | 600 mm | 2200 mm | 111 KG |
| 47U | 600 mm | 800 mm | 2200 mm | 133 KG |
| 47U | 600 mm | 960 mm | 2200 mm | 140 KG |
| 47U | 800 mm | 600 mm | 2200 mm | 129 KG |
| 47U | 800 mm | 800 mm | 2200 mm | 150 KG |
| 47U | 800 mm | 960 mm | 2200 mm | 170 KG |
