| Prod Model: |
AOT301 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Location: |
1.5 Hours From Shanghai |
| Certificate: |
ISO, CE |
| OEM: |
Available |
| Size: |
2100*480*750-1000mm |
| X-ray Examination: |
Available |
| Feature: |
with Sliding Function, Suitable for C-Arm Examinat |
| Type: |
Operating Table |
| Certification: |
FDA |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
Product Description

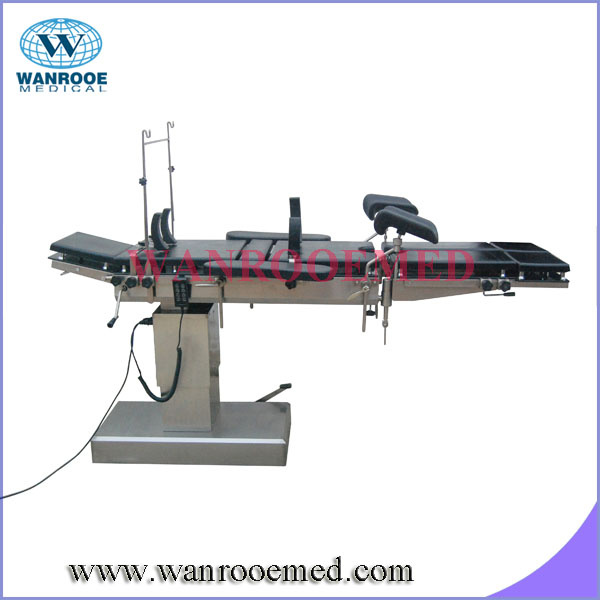

Electric Operation Table is designed for all kinds of operations in hospitals. It is with the advantages as belows:
Double table top, made of high strength plastic plate, X-ray examination can be carried out on it.
Table top horizontal movement 400mm, conveniently for C-arm examination.
With 24 V direct supply, the table is safe and reliable. The table's elevation, lowering, reversed trendelenburg, trendelenburg, lateral tilt are all automatically controlled by the button.
Leg section can be rotated, opened, disassembled and adjusted neck, thorax and abdomen perineum, and extremities as easily. It is most suitable for the urological operation.
Base and frame made of stainless steel, durable, easy to clean.
The table can be matched with orthopedic traction frame, conveniently for orthopedic surgery and C-arm, and X-ray imagining examination.
With built-in bridge, It meets chest and kidney surgical operation
It is equipped with wheels with brake on the base by foot pedal conveniently for moving and lock.
Operation Table Specifications:
Length: 2100mm
Width: 480mm
Height without mattress(electro): 750mm-1000mm(standard), customized height is available
Trendelenburg/ reverse trendelenburg(electro): 25°
Lateral titl (electro): 15°
Head section up/down(Mechanical control): 45° /90°
Foot section down(Mechanical control): 90°
Foot section open(Mechanical control): 90°
Table top horizontal movement(electro): 400mm
Kidney bridge Elevation (Mechanical control): 80mm
Power supply: 220V, 50Hz, if you need 110, 60Hz, we can make customizd order.
Cushion1 set
Anaesthetic Screen1PC
Shoulder Rest1pair
Arm Support1pair
Body Support1pair
Knee Crutch1pair
Manual controller1 PC
| Model | AOT30 0 |
| demensions(mm): | Table top length | 21 00mm |
| Table top width | 500mm |
| | |
| functions | H eight Adjustment (electric) | 750- 100 0mm |
| Trendelenburg (electric) | ±25 ° |
| Lateral Tilt ( electric ) | ±15 ° |
| Back section adjustment | Electric
up:4 5 ° /down: 15 ° |
| longitudinal slide ( electric ) - | none |
| Head board adjustment (manual) | up:45 ° /down:90 ° |
| Leg board adjustment | Manual- down:90 °
Open- 90 ° |
| Kidney elevator (manual) | 0-120mm |
| Standard Accessories: | Part name | Qty |
| Shoulder supports | 2pcs |
| Waist supports | 2pc |
| Arm supports | 2pcs |
| Leg supports: | 2pc |
| Anesthetic screen frame: | 1pc |
| Manual Controller | 1pc |
| Power wire | 1pc |
| Mattress | 1set |
