| Prod Model: |
XH910Y-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
23 Years Manufacturer |
| OEM: |
Available |
| Service Manual: |
Available |
| User Manual: |
Available |
| Sample Order: |
Available |
| Warranty: |
12 Months |
| Factory Location: |
2 Hours Drive From Beijing |
| Group: |
Adult |
| Material: |
Metal |
| Using Ambient: |
Hospital |
| Certification: |
ISO9001 |
| Type Of Hospital Bed: |
Operating Table |
| Numbers Of Function: |
Multi-Function |
Product Description

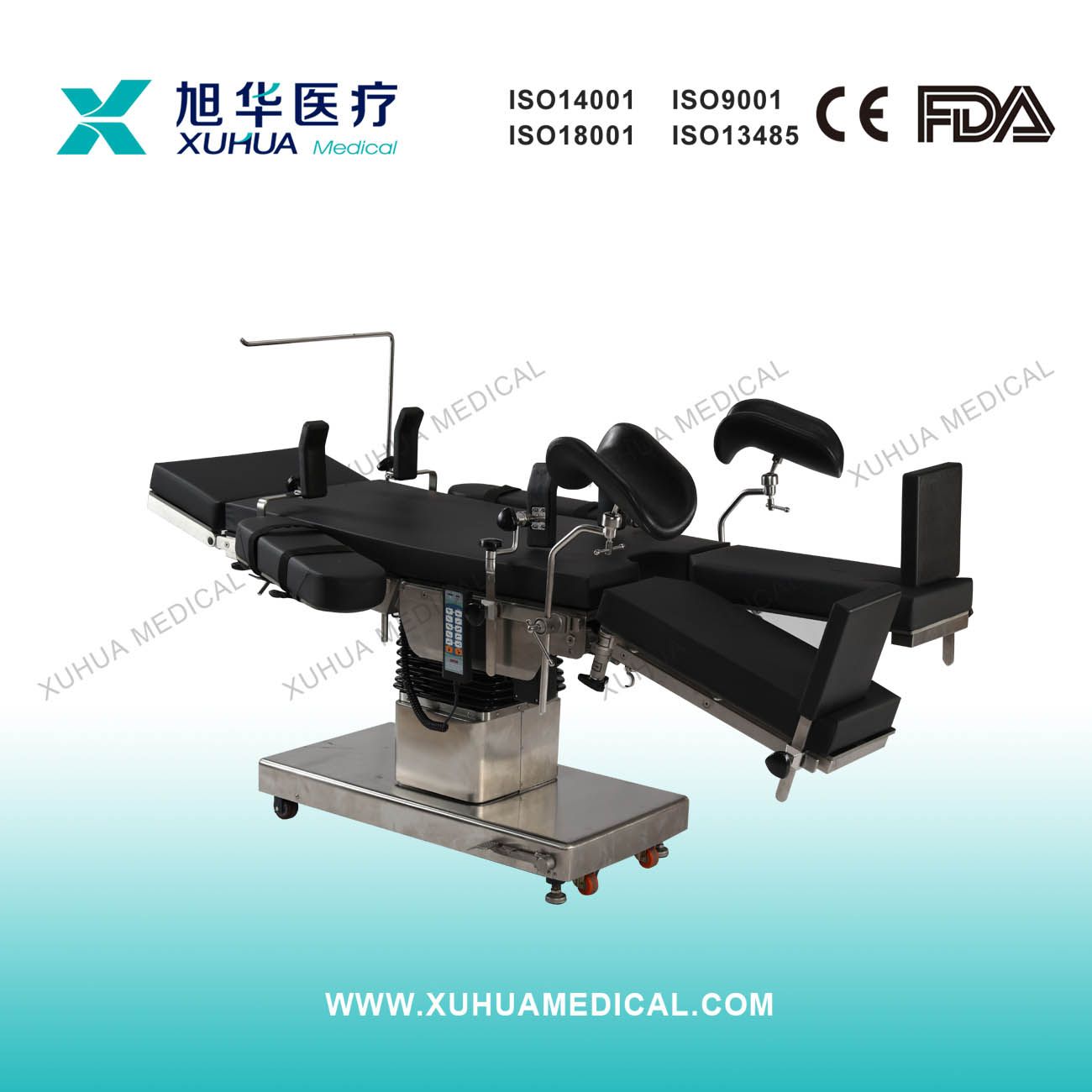

Product name: CE Approved Hospital Electric Operating Table
Model numer: XH910Y-1General Introduction: XH910Y-1 operating table can meet various requirements from all departments surgery. Extra wide tabletop, long horizontal sliding thant can be suitable for X-ray and C-arm use.
Adopted micro touch remote control that enables flexible and smooth function adjustment. High automation, low noise, high reliability. It is an ideal choice for operation room. Technical Specifications:1. Tabletop length: 2070mm
2. Table width: 550mm
3. Tabletop minimum height: 700mm
4. Tabletop maximum height: 1000mm
5. Trendelenburg and reverse trendelenburg: 25°/25°
6. Lateral tilt: 15°/15°
7. Head rest (up/down): 45°/90°
8. Foot Plate (up/down): 15°/90°
9. Foot plate horizontal positioning: 90°
10. Back plate (up/down): 75°/20°
11. Kidney bridge elevation: 110mm
12. Horizontal sliding: 300mm
13. Voltage: 220V/ 110V
14. Frequency: 50Hz/ 60Hz
15. Power capacity: 1.0kw
16. Battery: Yes
17. Mattress: Memory mattress
18. Accessory: PU by Moulding
19. Main material: 304 stainless steel.
20. Maximum load capacity: 200kg
Functions specifications: | Product | Multi-function Electric Operating Table |
| Size | 2070*550*700-1000mm |
| Table height elevation | 700-1000mm |
| Trendelenburg and reverse trendelenburg | 25°/25° |
| Lateral tilt (left/ right) | 15°/15° |
| Head rest (up/down) | 45°/90° |
| Foot rest (up/down) | 15°/90° |
| Backrest (up/down) | 75°/20° |
| Tabletop horizontal sliding | 300mm |
Standard Accessories:| Anesthetic screen | 1 piece |
| Shouler support | 1 pair |
| Arm support | 1 pair |
| Long fixing clamp | 1 pair |
| Leg support | 1 pair |
| Foot plate | 1 pair |
| Hand remote | 1 piece |
| Mattress | 1 set |
| Power line | 1 piece |
Pictures for details:

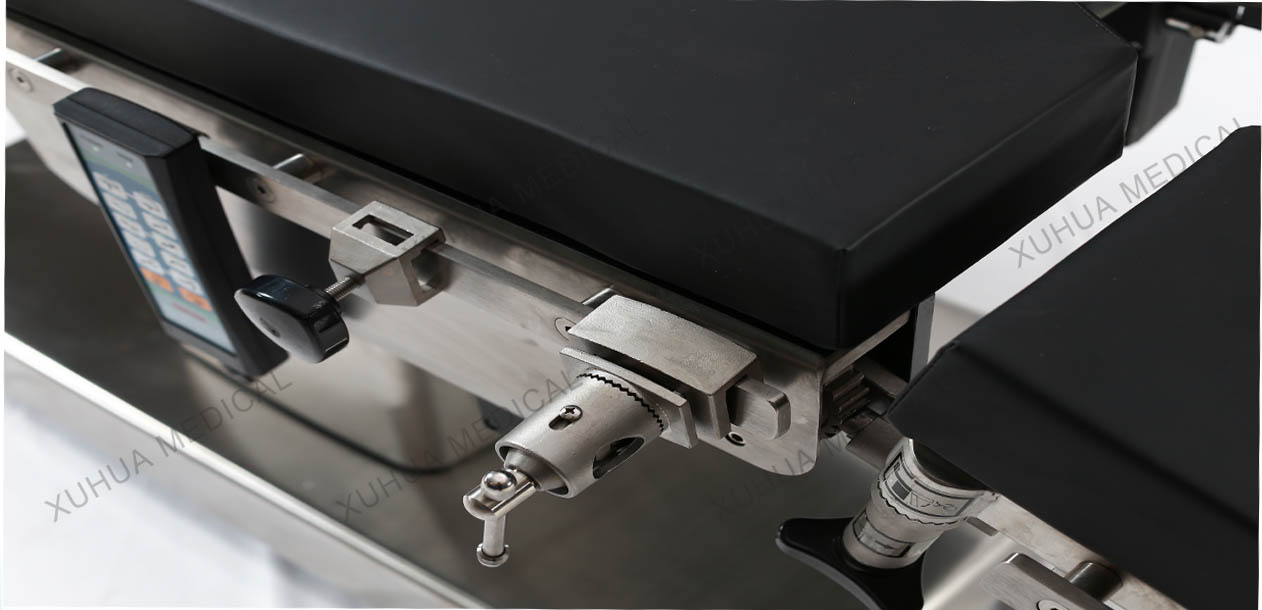

Sliding clamps

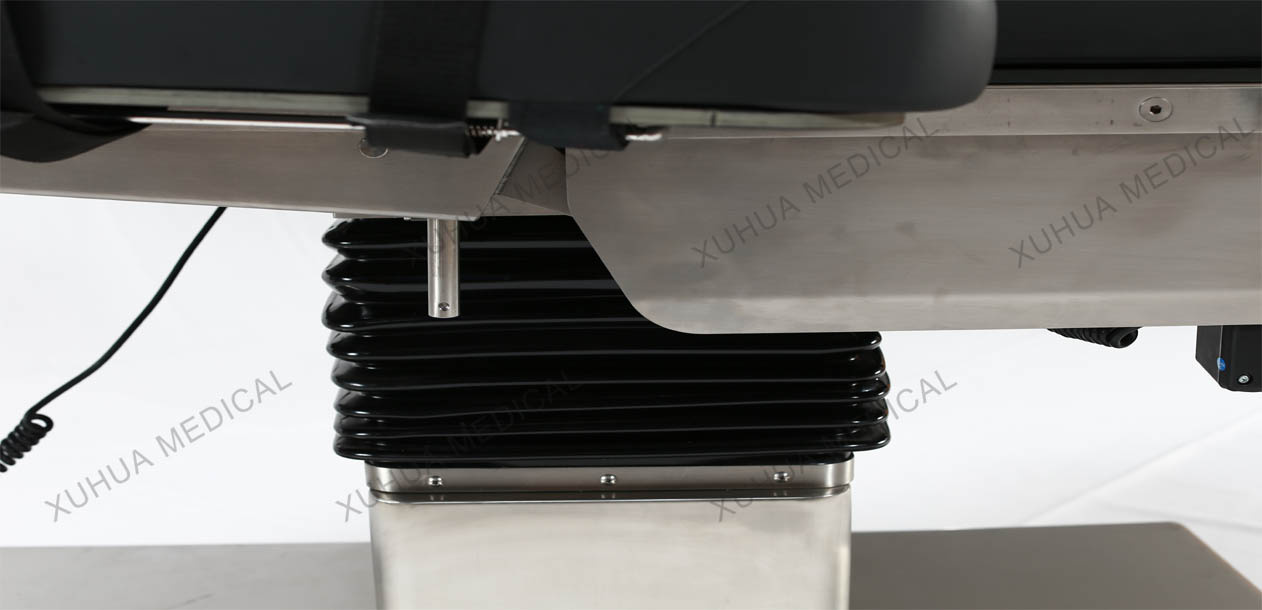

Lifting column table base.

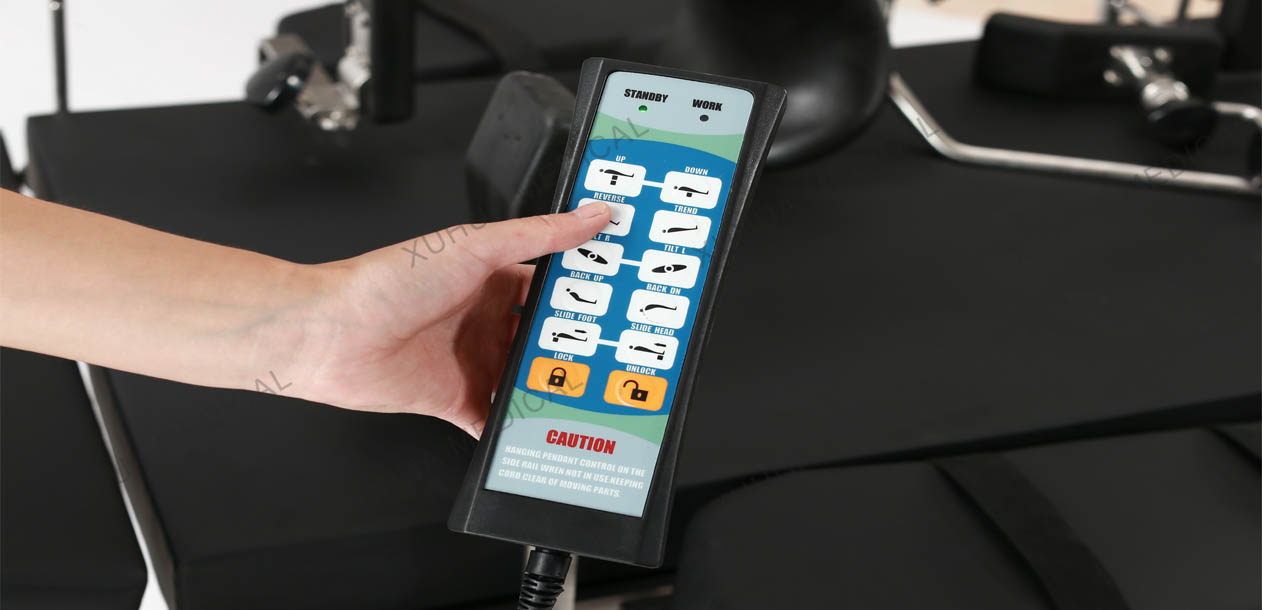

Hand remote.
Trade Terms:1) Price valid date: 3 months.
2) Payment term: 30% TT paid in advance, with 70% balance paid before shipment. Or L/C at sight.
3) Delivery time: 30 days after receive the deposit.
4) Package: standard export carton package or as customerized.
After sales service:We respect and positively following your feedback after receive the goods.
We provide 12 Months warranty after goods arrive.
We respond your complain within 48hours.
Professional service: We have well-organized working team, will reply all your inquiry and requirements timely and professionally.
We cooperate with customers for tender bidding and provide all the necessary documents.
With professional R&D department, all technical support are from our engineers team.

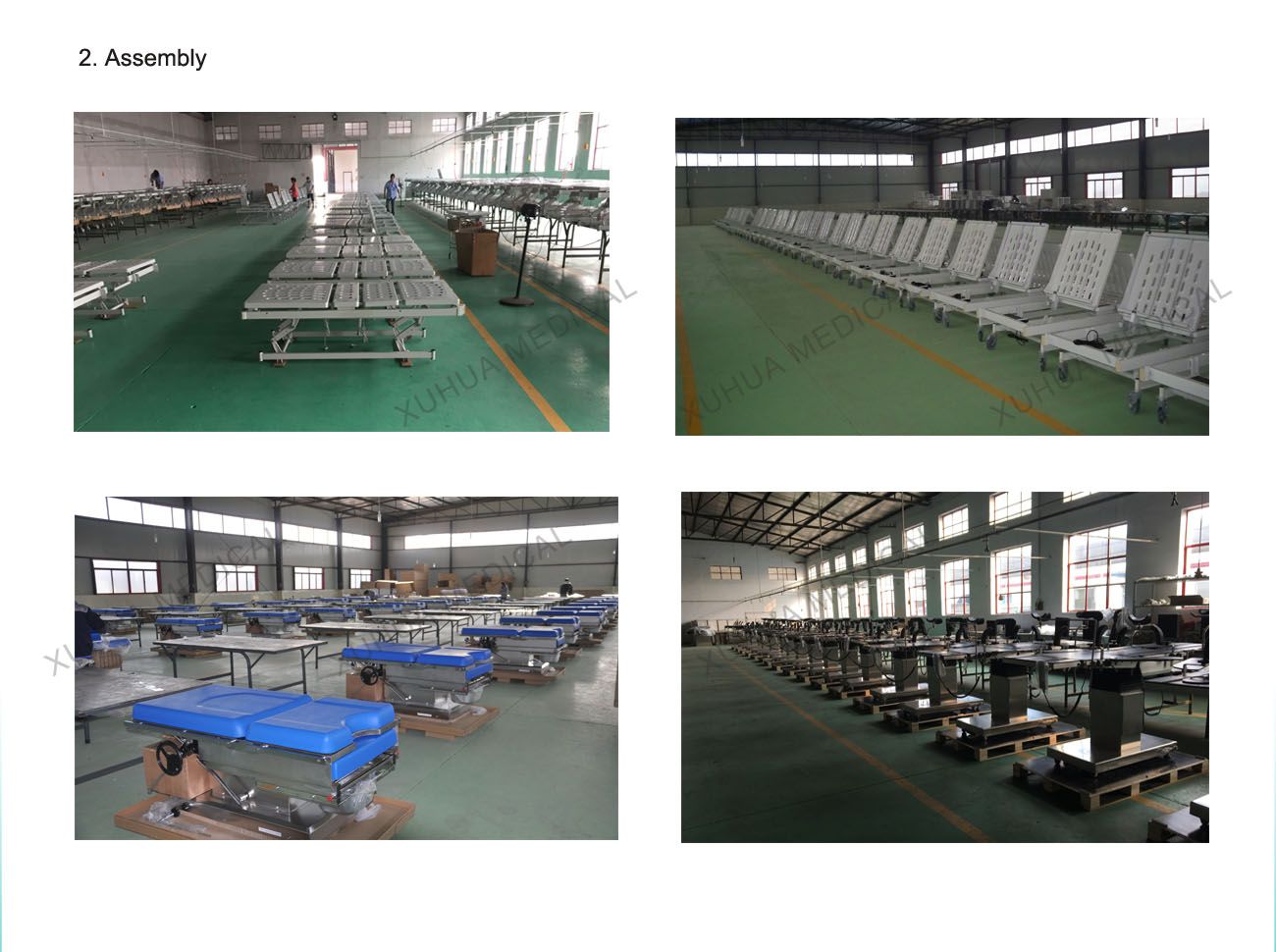

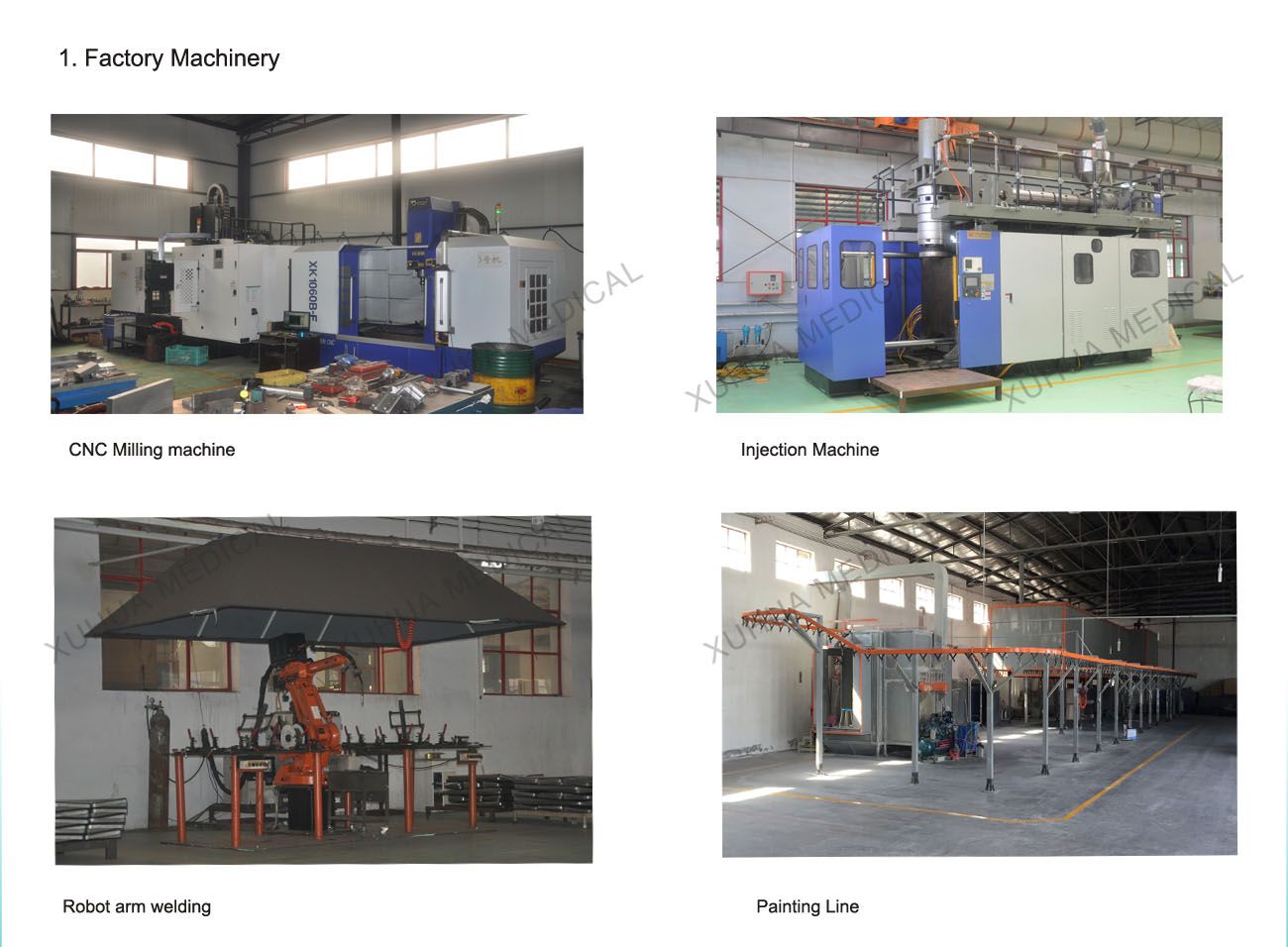

Facoty show:
As an appointed factory by Tianjin Medicine Administrative Bureau, Bazhou Xuhua Medical Equipment Co., Ltd. is a famous factory among National Medical Pharmacy and the line of Chinese medical equipment. Our factory is special in more than 180 kinds of products, such as traction beds controlled by computer software, series of sickbeds, cabinets, tables, stands, etc. Can fully satisfy the use of hospitals in different levels.
Our managing concept is:
"Quality the first, customer the uppermost Prosper the factory by science and technology, get rid of the stale and bring forth the fresh"
ISO9001 international standard is strictly carried out during the whole process of production, we have advanced technology and equipment, high technique, circumspect service and high quality goods. We will serve the customers of all over the world by reliable reputation and sincerity.
We deeply believe that the development of an enterprise is depend on the support of customers, we sincerely hope more and more customers will cooperate with us, we will provide you the best service and high quality products.
