| Prod Model: |
XHD-2D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L2200*W1100*H500-720mm |
| Business Type: |
Manufacturer |
| OEM: |
Available |
| Sample Order: |
Available |
| Warranty: |
12 Months |
| Factory Location: |
2 Hours Drive From Beijing |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO9001 |
Product Description

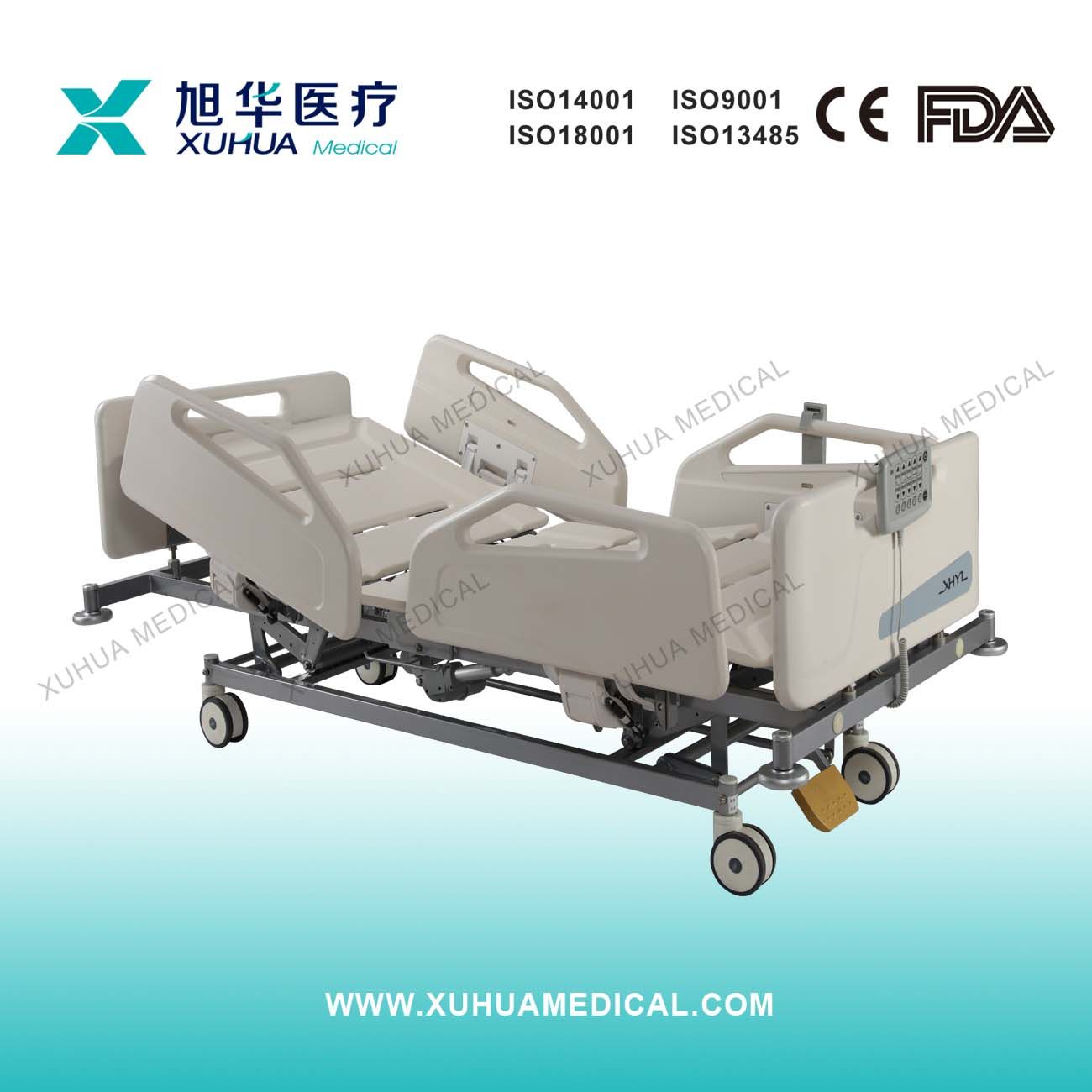

Product Name: CE Approved Motorized Five Functions Electric Hospital ICU Bed
Model: XHD-2DTechnical Specifications: 1. Overall size: L2200*W1100*H500-720mm
2. PP material bed head and foot boards shaped by blow molding, with self-locking device.
3. New type folding guard rails, PP material shaped by blow molding, adjustable up and down.
4. Side rails outer sides are with angle indicators.
5. Five functions adjustable electrically. Electric system adopt Taiwan T-motion linear motors of high performance, noiseless.
6. The backrest adjustment angle: 0-70°.
7. The legrest adjustment angle: 0-40°
8. The height adjustment: 500mm-720mm
9. Trenelenburg and reverse trendelenrbug adjustable angle: -12°/+12°.
10. With manual CPR handles on both sides of the bed for back section quick release.
11. PP material four sections bed lying platform, with good bearing capacity, transparent to X-ray.
12. Mounted on four diameter 125mm castors with central braking system, superior abrasion resistance, promoting a flexible and convenient locking.
13. Bed accessories:
Round bumpers: 4 pcs
I.V pole sockets: 4 pcs
Drainage bag hooks: 4 pcs
14. Certificates: ISO9001, ISO13485 and CE
Product name | CE Approved Motorized Five Functions Electric Hospital ICU Bed |
| Model number | XHD-2D |
| Material | Steel &ABS material |
| Bed height adjustment range | 500-720mm |
| Backrest adjustable angle | 0-70°±5° |
| Legrest adjustable angle | 0-40°±5° |
| Trendelenburg and reverse trendelenburg | -12°/+12° |
| Size | L2200*W1100*H500-720mm |
| Bearing capacity | 235kg |
Product Details Pictures:

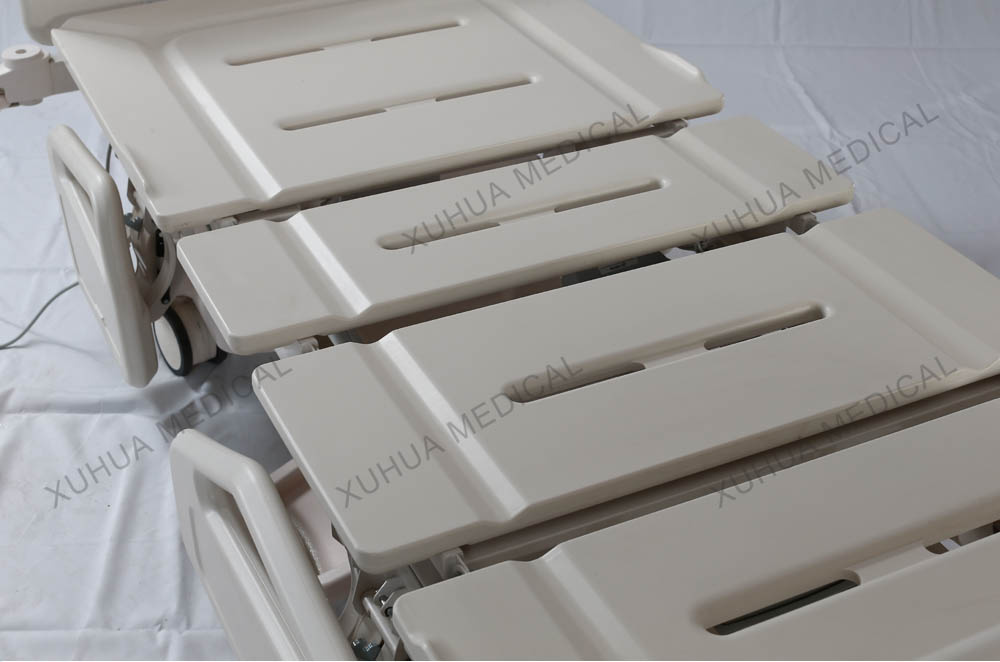

PP material four sections lying platform.

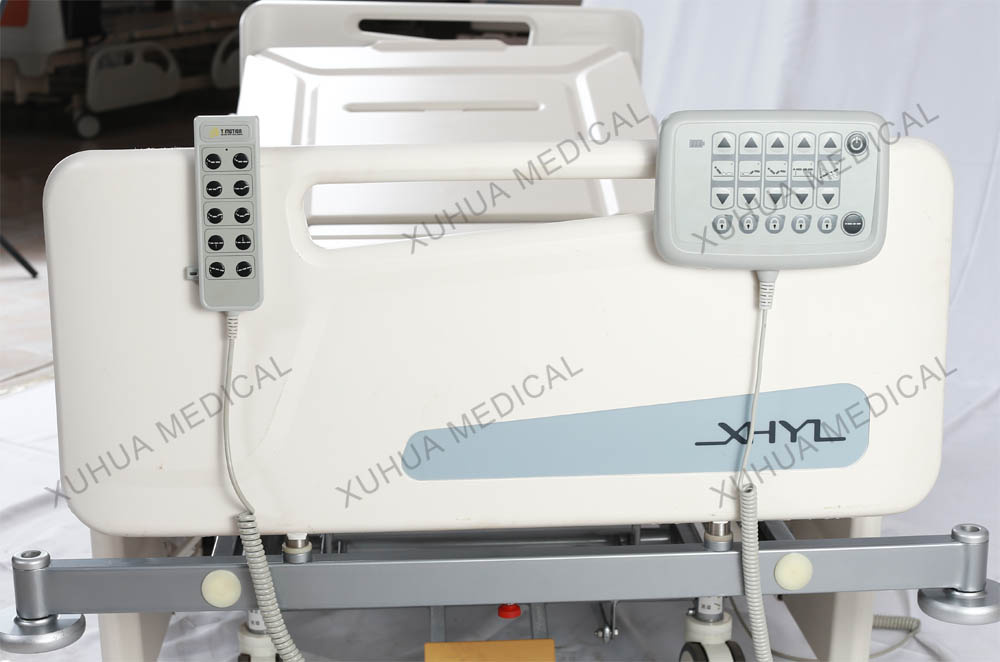

With a handset controller and a control penal at the bed end for functions adjustment. Trade Terms:1) Price valid date: 3 months.
2) Payment term: 30% TT paid in advance, with 70% balance paid before shipment. Or L/C at sight.
3) Delivery time: 30 days after receive the deposit.
4) Package: standard export carton package or as customerized.
After sales service:We respect and positively following your feedback after receive the goods.
We provide 12 Months warranty after goods arrive.
We respond your complain within 48hours.
Professional service: We have well-organized working team, will reply all your inquiry and requirements timely and professionally.
We cooperate with customers for tender bidding and provide all the necessary documents.
With professional R&D department, all technical support are from our engineers team.

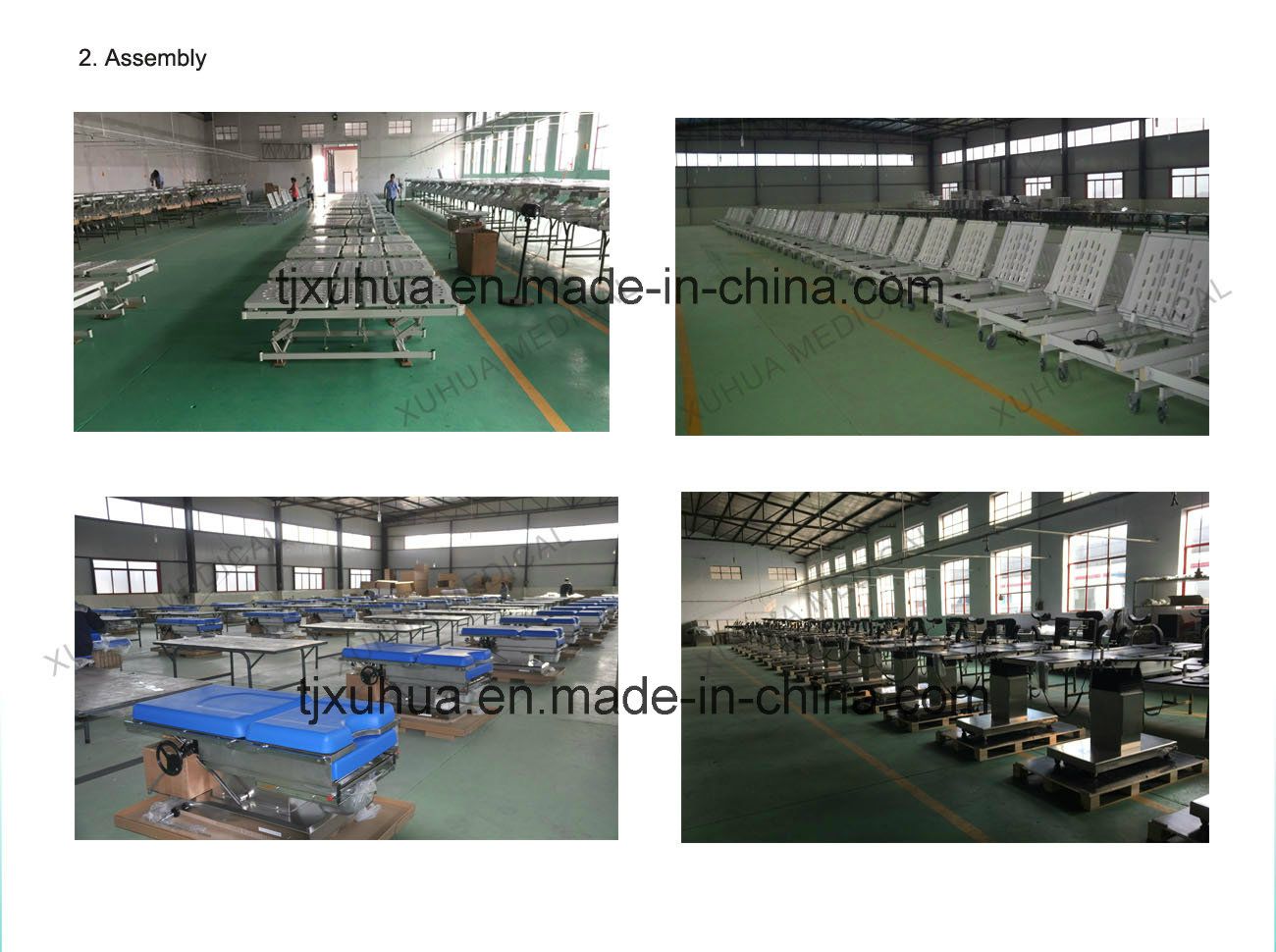

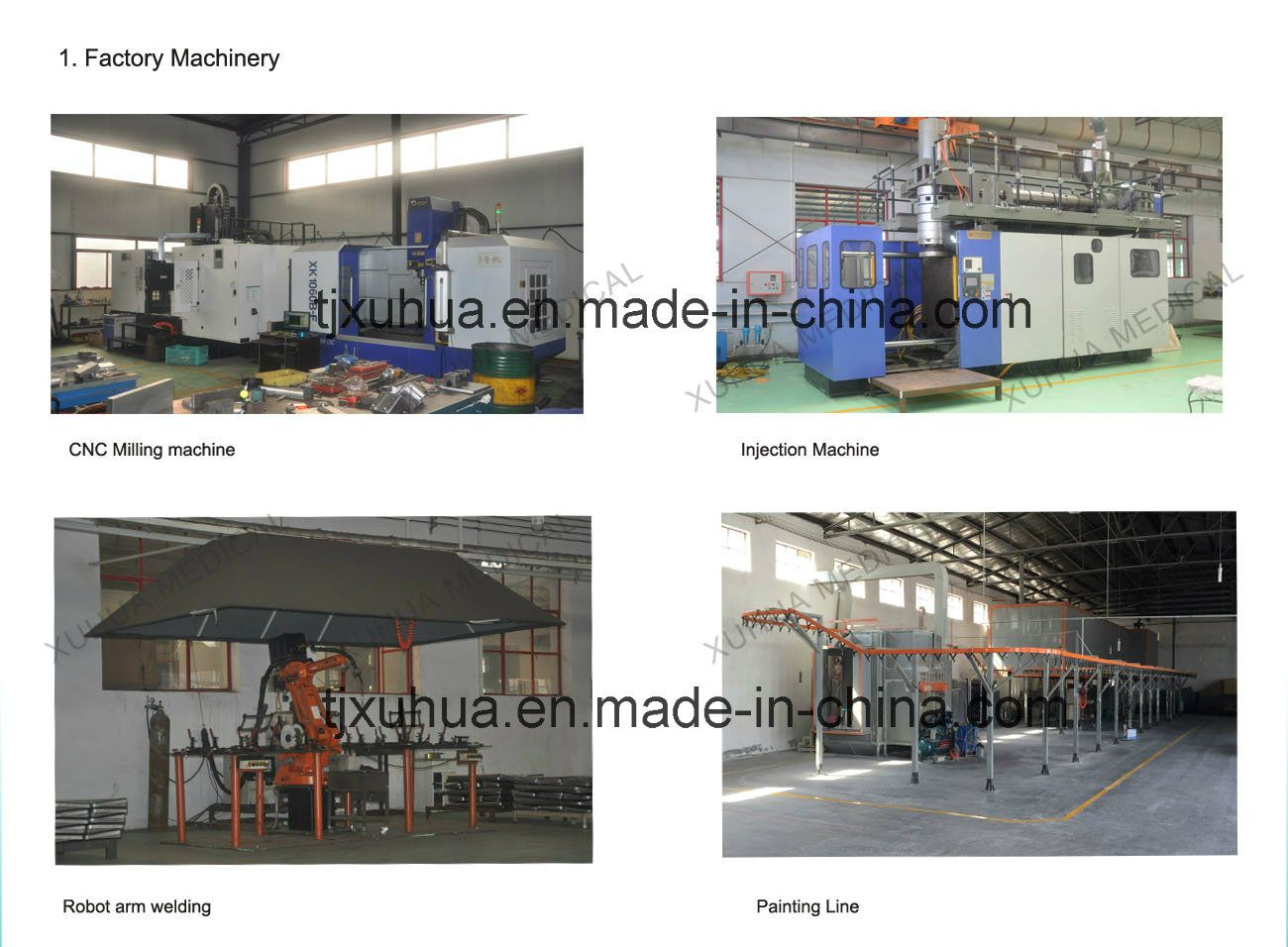

Factory show:
As an appointed factory by Tianjin Medicine Administrative Bureau, Bazhou Xuhua Medical Equipment Co., Ltd. is a famous factory among National Medical Pharmacy and the line of Chinese medical equipment. Our factory is special in more than 180 kinds of products, such as traction beds controlled by computer software, series of sickbeds, cabinets, tables, stands, etc. Can fully satisfy the use of hospitals in different levels.
Our managing concept is:
"Quality the first, customer the uppermost Prosper the factory by science and technology, get rid of the stale and bring forth the fresh"
ISO9001 international standard is strictly carried out during the whole process of production, we have advanced technology and equipment, high technique, circumspect service and high quality goods. We will serve the customers of all over the world by reliable reputation and sincerity.
We deeply believe that the development of an enterprise is depend on the support of customers, we sincerely hope more and more customers will cooperate with us, we will provide you the best service and high quality products.
