| Prod Model: |
THR-EB5105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use As: |
Nursing Bed, Caring Bed, Hospital Bed, ICU Bed |
| Function: |
Backrest & Legrest Upward, Trendelenburg & Rev. He |
| Side Controller: |
4PCS |
| Nurse Controller: |
1PC at Bed End Board |
| Motors: |
Imported Linak Motors |
| Castors: |
Center Control Wheels with Brake System |
| CPR: |
Available |
| X-ray Function: |
Yes |
| Weight Capacity: |
250kg |
| Warranty Time: |
5 Years on Motors, 1 Year on Bed |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
CE |
Product Description

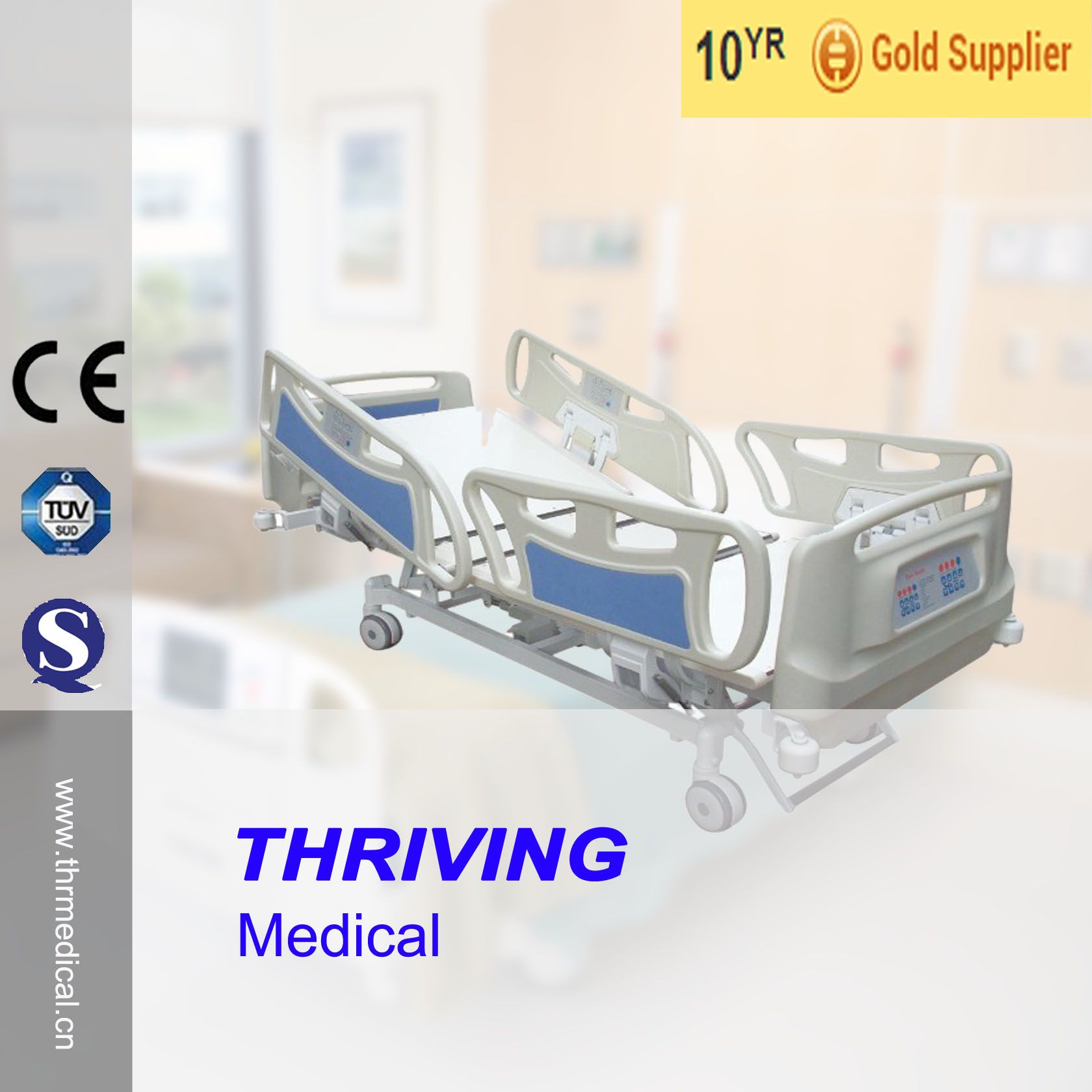

THR-EB5105 CE Quality! Hospital Electric ICU BedBrief Introduction:-
With professional function
-Builti-in key-press type controller
-CE high quality!

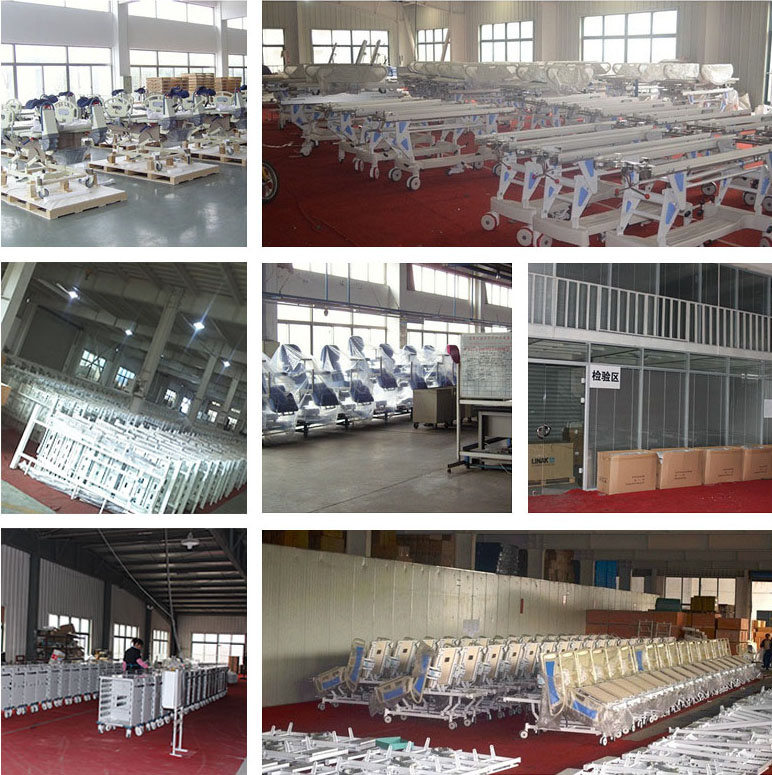

Factory Show:
Our advantages:
1. Original Manufacturer, the producing workshop is more than 40000 Square Meters
2. All parts are produced by our factory
3. Strict Material Inspection & Quality Controlling
4. ISO9001, ISO13485(SGS) Quality Management System
5. More than 10 years experience in producing and engineering
6. CE (SGS) Certificate
7. Products are exported to more than 30 countries
| Specification: |
| Dimension: | 2230*990*450/720mm |
| Patient touching surface | 90*196cm |
| Top Coat: | Electrostatic Powder coating |
| Bed Frame: | Cold-Rolled Steel Tube |
| Bed Base: | Cold-Rolled Steel Sheet |
| Bed base may X-ray | Available |
| Maximum safe load | 250kg |
| | |
| Configuration |
| Nurse Controller at bed end board (key-press) | 1 unit |
| Rail Controller (key-press) | 4 units |
| Imported Linak Electrical Motors | 4 units |
| Angle Scale | 2 units |
| Manual CPR Handle | 1 unit |
| Drainage Hook | 2 units |
| I. V. Pole with 4 hooks | 1 unit |
| Diameter 125mm Central Silent Castors | 4 units |
| Detachable ABS Head and Foot Board | 1 pair |
| ABS Side Rail Move with Bed Base Simultaneously | 2 pairs |
| Waterproof ventilative mattress | optional |
| | |
| Functions Available: |
| Height adjustment | from 450mm-720mm |
| Angle of backrest' s upward | 0° - 75° |
| Angle of legrest' s upward | 0° - 45° |
| Trendelenburg/Anti-trendelenburg | ± 10° |
| Auto contour function: Allows back board and thigh board to adjust simultaneously into a chair position |
| Emergency stop function: The bed can be stopped at all times and positions for one button |
Suzhou Thriving Medical Equipment Corp., was established in 2000. We are mainly engaged in hospital furniture, medical equipments, and funeral products etc. With strong technical force, advanced equipment and five large-scale production lines, we can complete deep processing of various metal products, specializing in the furniture and hardware products. In order to best meet customers' requirements, we have implemented a quality control system that is in strict accordance with ISO9001 standards.
Abut on Shanghai, Suzhou, Wuxi, Changzhou and other medium-large cities, we enjoy very convenient transportation arising from the Huning Expressway, Riverine expressway, Zhangjiagang port and Shanghai port. This advantageous geographical position has also facilitated our products' exportation and helped us expand overseas market and seek for overseas partnership.
Adhering to the management principle of 'Honesty, Dependence, Advance, Innovation', we offer excellent service and superior quality products at very competitive price to customers from around the world. Please feel free to contact us for more details.
