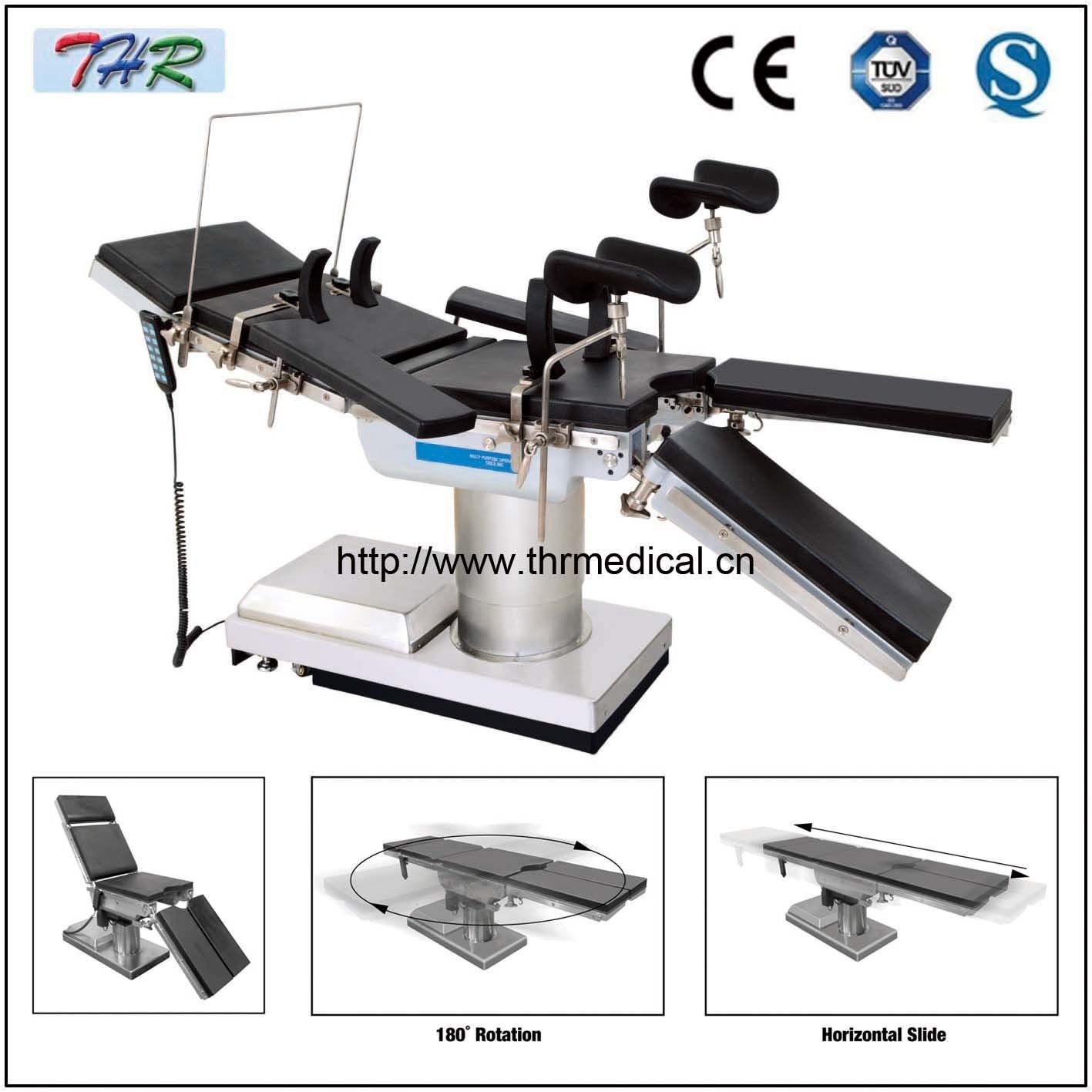

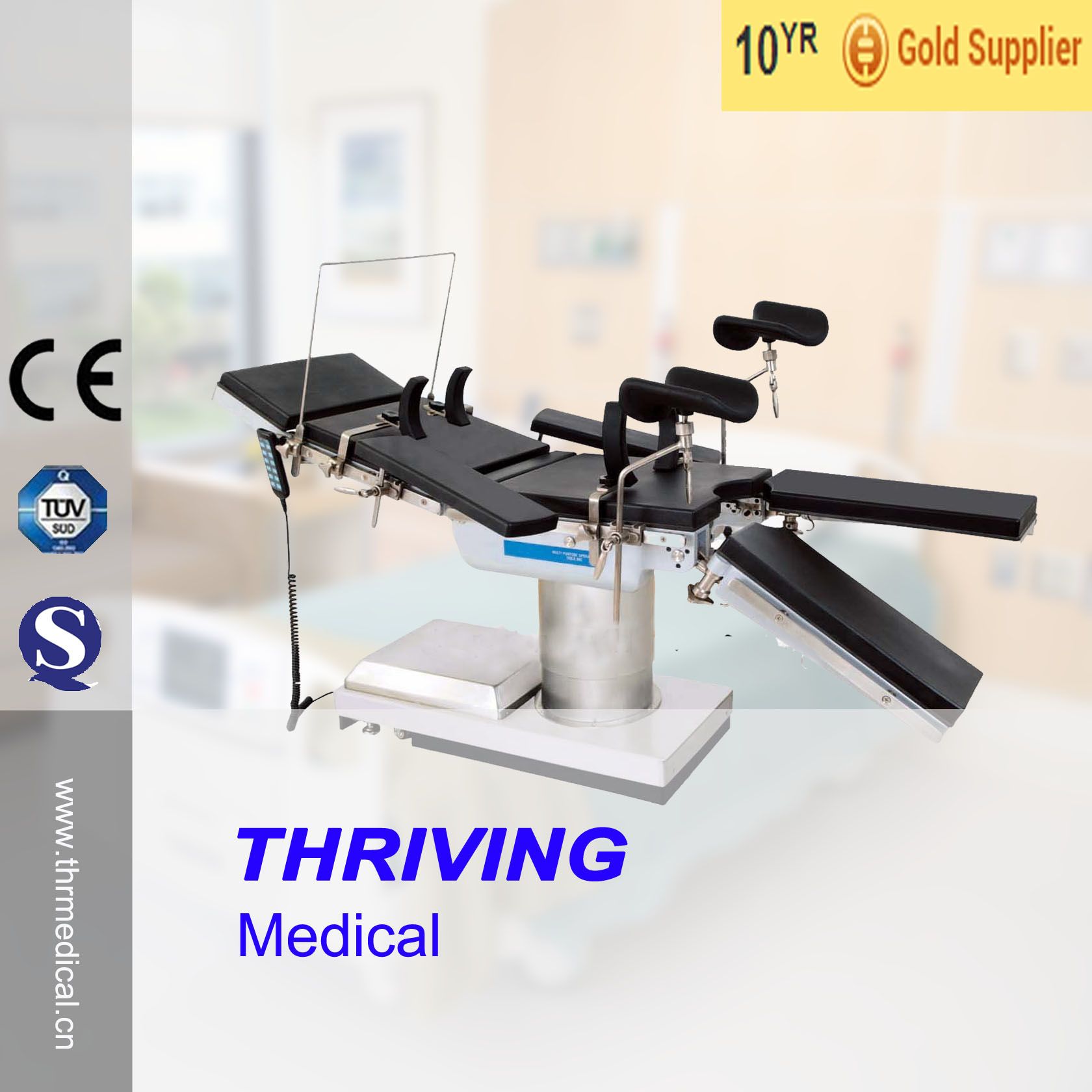

Electric Hydraulic Hospital Multi-Purpose Surgical Bed

Prod Model:	THR-OT-99C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE,ISO,TUV
Table Rotation:	180 Degree
Table Material:	X-ray Transsive
Serive Life:	8 Years
Warranty:	1.5 Years
Motor:	Chinese Wit 3 Years Warranty
Type:	Operating Table

Product Description

Main Usage & Structure

1. Main Usage: Electric operating table can be operated for clinical use.
2. Structure: Operating table consists of two parts: Mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Structure Description

1. The Electric operating table uses electro-hydraulic systems to control all the movements: Height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement and brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.
2. The table comprises of five sections: Head section, back section, Waist Section(When optional), sitting section and leg section. The forward and backward movement and 180 ° Rotation of tabletop can make C-arm perspective quick and easy.
3. Emergency power supply is Optional. Emergency power supply is made of lead-acid batteries, which can be automatically charged. Emergency power supply can start to work automatically when the power is off
4. The main material is stainless steel, high-intensity cast iron, aluminum, good solidity.
5. Electric operating table mattess made of high density sponge and leather cover or polyurethane material whole foam forming, with antistatic performance.
6. The appearance of the stainless steel round cover and base is nice and elegant. The cover is dust-proof and water-proof. The table is stable and practical.
7. Equipped with electric brakes. Easy to transport, transfer and clean.

Dimension of table top
Overall Length	2050mm
Width	500mm
Dimension of section
Head Section	250×500mm
Back Section	465×500mm
Waist Section	75×500mm
Seat section	550×500mm
Leg Section	600×240mm
Table top of from floor
Min Height	580mm
Max Height	930mm
Adujst	350mm
Range of movements
Reversed Trendelenburg	≥20°
Trendelenburg	≥15°
Lateral Til	≥15°
Backward and Forward Movements	≥250mm
Adjustment of sections
Head Section Raised  from the horizontal	≥45°
Head Section lowered from the horizonta	≥90°
Back Section Raised from the horizontal	≥75°
Back Section lowered from the horizontal	≥30°
Leg Section Lowered from the horizontal	≥90°
Leg section opened	≥90°
Waist Section rise(When optional)	≥80mm
Horizonal ratation of tabletop	0-180°
Horizonal return original(when optional)	±2°
Lifting speed	4-16mm/s
Safe working load	135kg
Device safety	Sort I (B)
Ingress Protection	IPX4
Power	AC 220V,50Hz
Battery capacity	14 AH  Battery capacity ≥ 2.4AH
