| Prod Model: |
THR-OT-99C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2040*500*580-930mm |
| Certificate: |
CE and ISO |
| Warranty: |
One Year |
| OEM: |
Available |
| Factory Location: |
Two Hour Away From Shanghai |
| Control System: |
electric hydraulic |
| X-ray Examination Function: |
available |
| Material: |
Metal |
| Folded: |
Unfolded |
Product Description

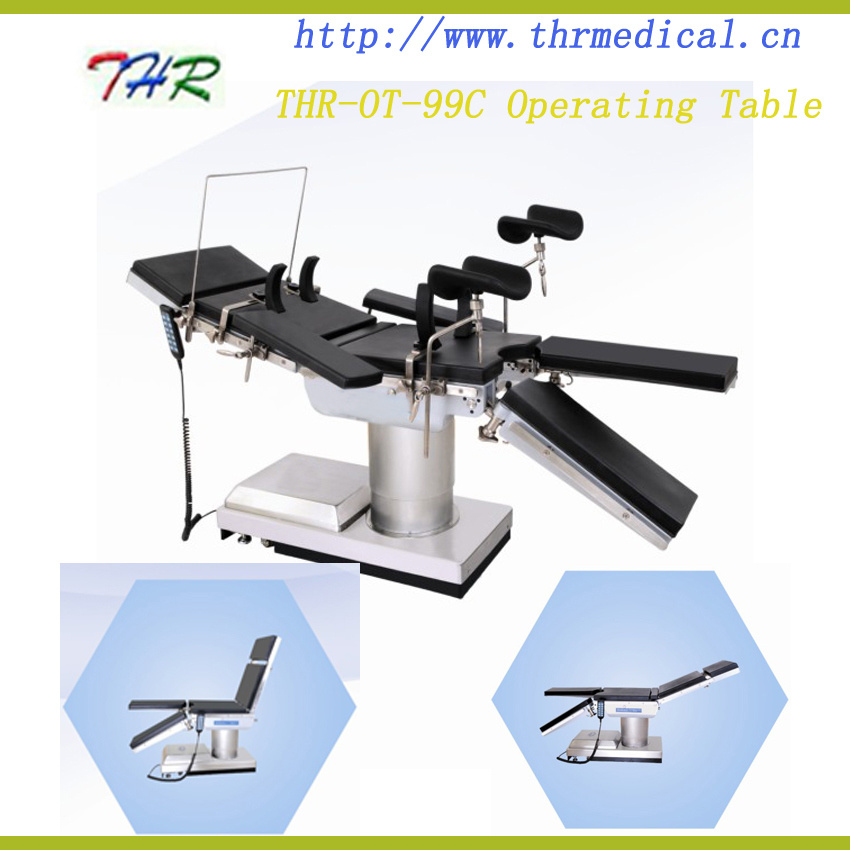

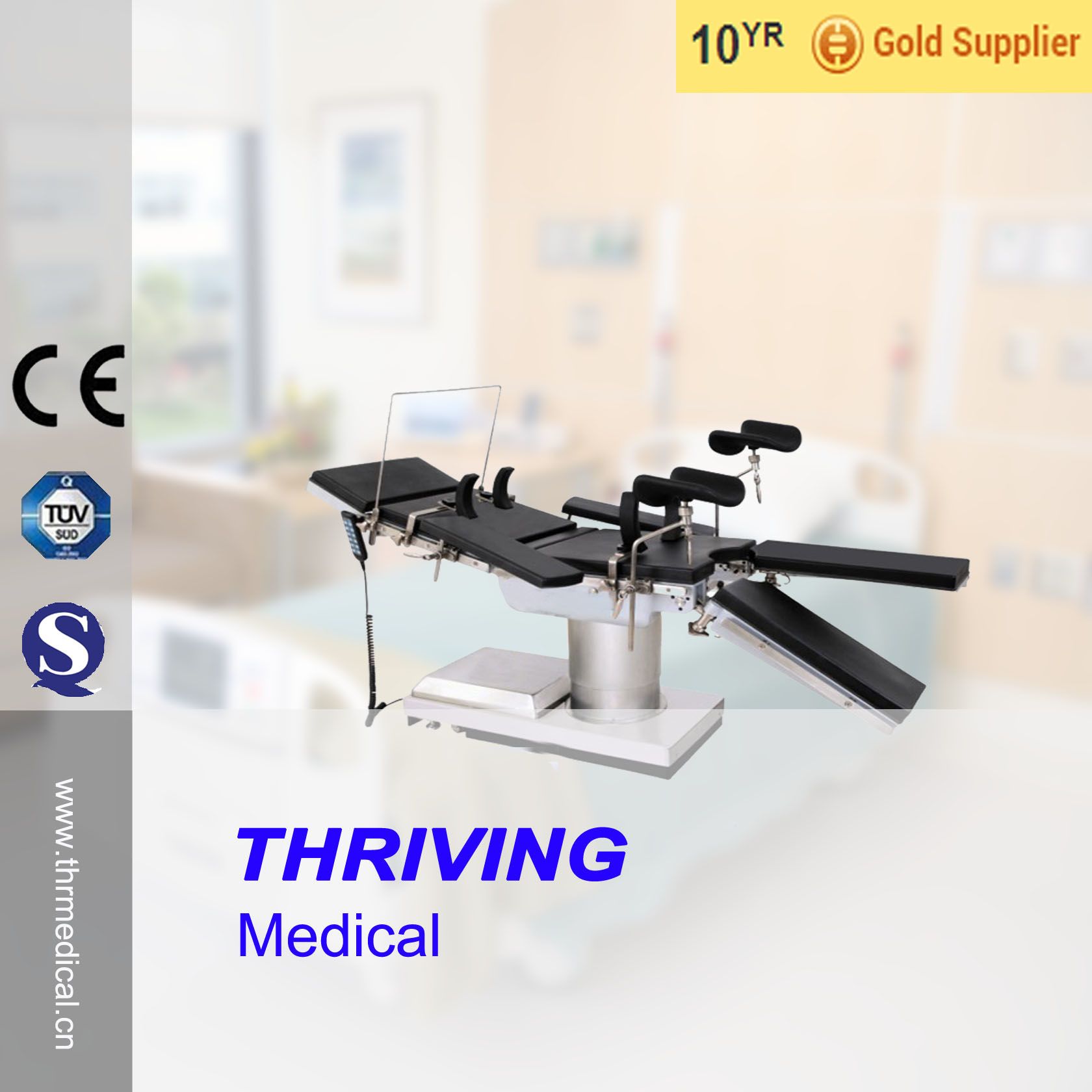

Electric Hydraulic Operating Table (THR-OT-99C)
Specifications:
1. This Electric Operating Table 99C is developed independently by our company wity innovativ and advanced technologies.
2. The table is a compehesive one with high-quality and multi-purposes,which takes the leading position in the domestic market.
3. The table can be used in almost all kinds of operations by means of speical design.
4. The bedtop can be moved vertically and rotated horizontally.
5. The tableboard is made from high-intensity synthesis panel.
6. X-Ray transmissive, easy adjustment and easy use of C-arm make the table can be more capable for any operation.
7. The operating table is controlled by Control Circuit, which is easy operation, low noise,reliable performance.
8. 2000L operating table has almost the same functions with 99C, except that 2000L can't be moved in vertical direction.
Technicial Parameters:
---Table dimension including the rails: Length 2040mm, width 500mm
---Table top dimension: Length 2000mm, width 500mm
---Table height: Lowest≤ 580mm, highest≥ 930mm
---Lateral tilt: Left≥ 15° Right≥ 15°
---Trendelenburg and reverse trendelenburg: Reverse trend≥ 20° Trend≥ 15°
---Head section turning: Up≥ 45° Down≥ 90°
---Back section turning: Up≥ 55° Down≥ 80°
--- Leg section turning down: ≥ 90°
---Leg section swing out: ≥ 90°
---Backward and forward movement: 250mm
---Horizontal rotation of the tabletop: 180 °
---Armrest swing out: ≥ 90°
Standard Accessories:
A. Anaesthesia screen frame 1 set
B. Body strap 1 piece
C. Lateral support 1 pair
D. Should holder 1 pair
E. Leg holder 1 pair
F. Clamp 1 set
H. Arm rest 1 pair
I. Hand control 1 piece
| Reversed Trendelenburg | ≥ 20° | Back Section Lowered From the Horizontal | ≥ 55° |
| Trendelenburg | ≥ 15° | Leg section Lowered from the Horizontal | ≥ 90° |
| Lateral Tilt | ≥ 15° | Leg section Opened | ≥ 90° |
| Head Section Raised from the Horizontal | ≥ 45° | Backward and forward movement | ≥ 250mm |
| Head Section lowered from the Horizontal | ≥ 90 | Horizonal ratation of tabletop | 180° |
| Back Section Raised From the Horizontal | ≥ 80° | Supply | AC 220V± 10%, 50HZ |
