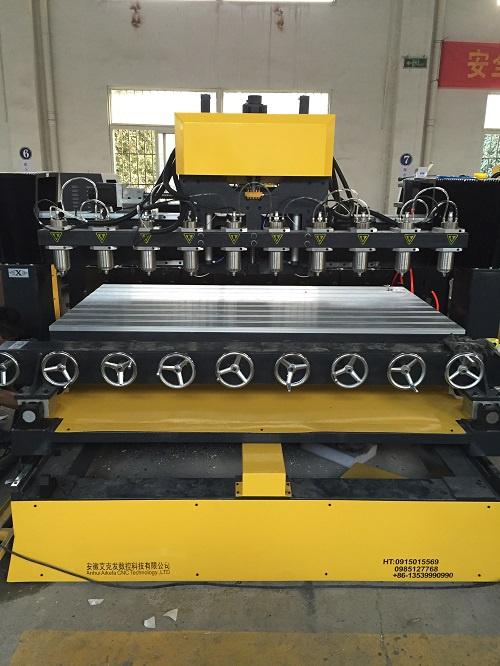

High Quality CNC Router Rotary CNC Carving Machinery

High Quality CNC Router Rotary CNC Carving Machinery
Price: US $ 9000-17500/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FCT-2015C&W-8S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rotary Diameter: 250
Rotary Length: 1500mm
Reducer: One Reducer for One Motor
Spindle Power: Water Cooling 2200W×8
Spindle Rotate: 6000--2400rpm
Motor Driver: France Schneider Servo
Tool Diameter: 3.175, 4, 6mm
Machine Structure: Industry Square Tube Structure
Transmission: Xz Ball Screw, Y High Accuracy Gear Rack
Xyz Rails: PMI Square Rails
Spindle Layout: Vertical
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: ISO
Spindle Number: 8 Spindles
Color: User-Defined

Product Description

High Quality CNC Router Rotary CNC Carving Machinery

Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.

Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.


Technical Parameters:
ModelFCT-2015C&W-8S
Rotary diameter250-300
Rotary length1500mm
Reducerone reducer for one motor
Spindle powerWater cooling 2200W×8
Spindle rotate6000--2400rpm
Motor driverFrance schneider servo
Tool diameter3.175,4,6mm
Machine structureIndustry square tube structure
TransmissionXZ ball screw, Y high accuracy gear rack
XYZ railsPMI square rails
Dust-proof systemXYZ high quality dust cover
Mechanical accuracy<0.03/300mm
Engraveing speed8000mm/min
Data transmissionPC-connection directly
Support formatG code or HPGL
Working voltageAC220V/50Hz or 380V/50Hz
Net weight2200kg


Good service:
1.One year warranty for the whole machine and maintenance for lifetime.
2.Under normal usage, 1 year for the whole machine,lifelong technical support.
3.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance and so on.
4.Door to door service, you just need to bear round-trip tickets and accommodation.
5.Free installation,testing,training before shipping .
6.Advice for the best solutions for your requirements.
7.High precision with reasonable price
8.Meet CE, ISO9001 standards.


Tips to choose suitable machine:
If you are not sure which machine you should choose,kindly afford the following information.
Suitable machine will be recommended to you.
1) What materials do you want to engrave or cut?
2) What's the max. size of the materials (Length*Width*Thickness)?

Contact us now!
alice(overseas department manager)
Mobil: 0086 13966703473
Anhui Aikefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and services of numerical control and photoelectric products. The company has independent license for export and import, bears "Innovate technology and create values for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.

Teamwork Suppliers: France Schneider, American GSI, Germany Rofin, Italy HSD, Italy Colombo, Taiwan PMI, Taiwan TBI, Taiwan Syntec, Japan Panasonic, Japan Yaskawa, etc.

Service concept: Innovation, technology, services

Innovation: Scientific and technological innovation as the basis for enterprise development, not only in technical innovation in products, markets, management, structure and concepts to innovation.

Technology: Continuously improve staff skills, enhance their technical content; Innovative business model to meet market and customer requirements.

Service: Professional engineers to provide you with software and training machines, regular visits to track your usage. QQ, Skype, WeChat, telephone, 24-hour online open.
