| Price: | US $ 2290-2840/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: | SK009 |
|---|---|
| Name: | Electric Hospital ICU Bed |
| Sample: | Available |
| OEM: | Available |
| User's Manual: | Available |
| Spare Parts: | 1% |
| Warranty: | 2 Years |
| Service: | Lifetime |
| Factory Location: | 2 Hours Driving From Shanghai |
| Service Manual: | Available |
| Factory Type: | Over 13 Years Manufacturer |
| Material: | Metal |
| Type Of Hospital Bed: | Electric Bed |
| Folded: | Unfolded |
| Numbers Of Function: | Five-function |
| Certification: | ISO9001 |
| Using Ambient: | Hospial & Home |
Introduction:

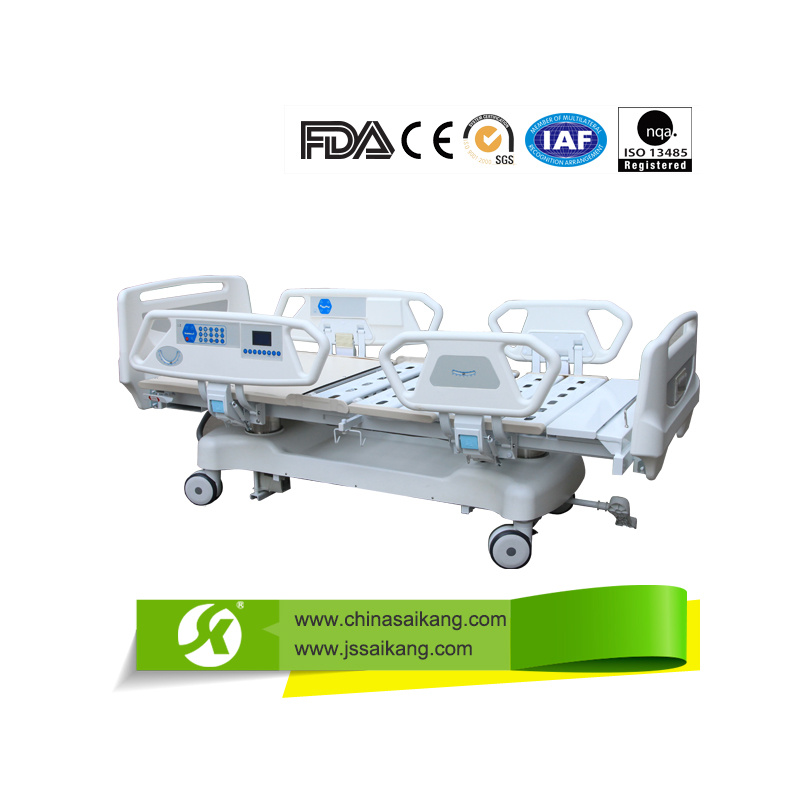

Seven function with x-ray function ICU transfer tilting hospital bed.

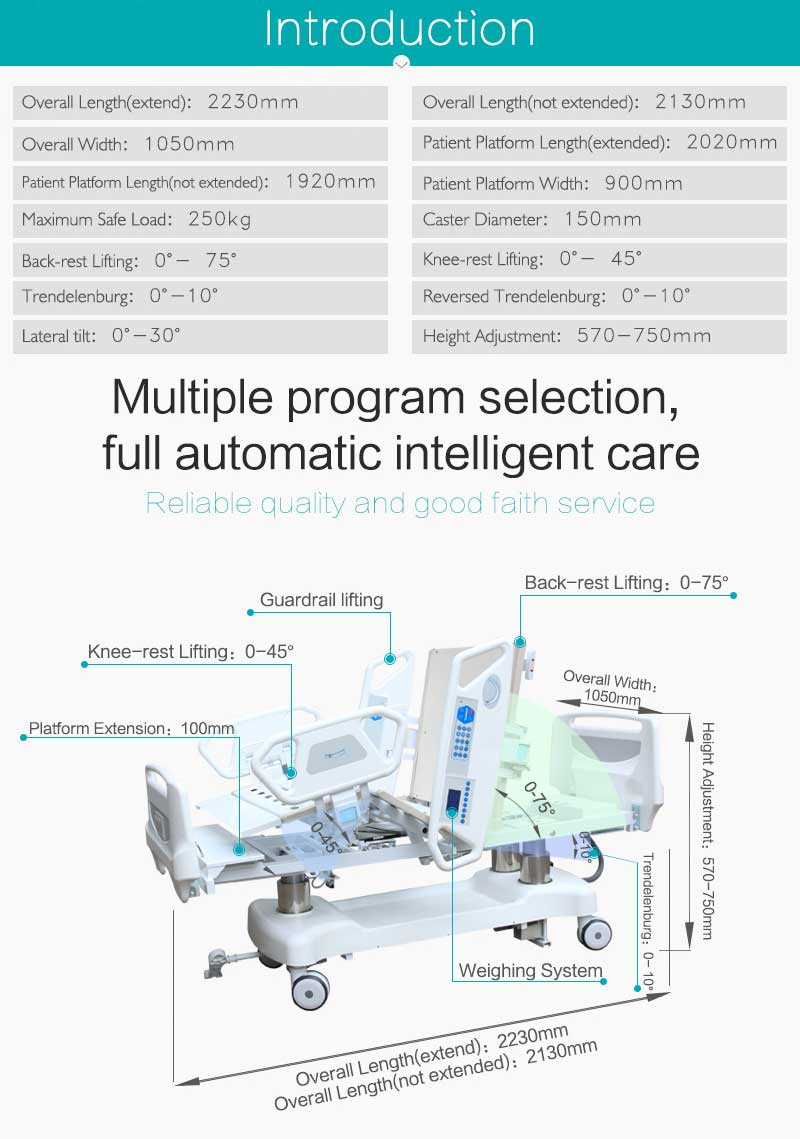

Standard Parameters:
Parameters | Size |
Overall Length(extend) | 2230mm |
Overall Length(not extended) | 2130mm |
Overall Width | 1050mm |
Patient Platform Length(extended) | 2020mm |
Patient Platform Length(not extended) | 1920mm |
Patient Platform Width | 900mm |
Maximum Safe Load | 250kg |
Caster Diameter | 150mm |

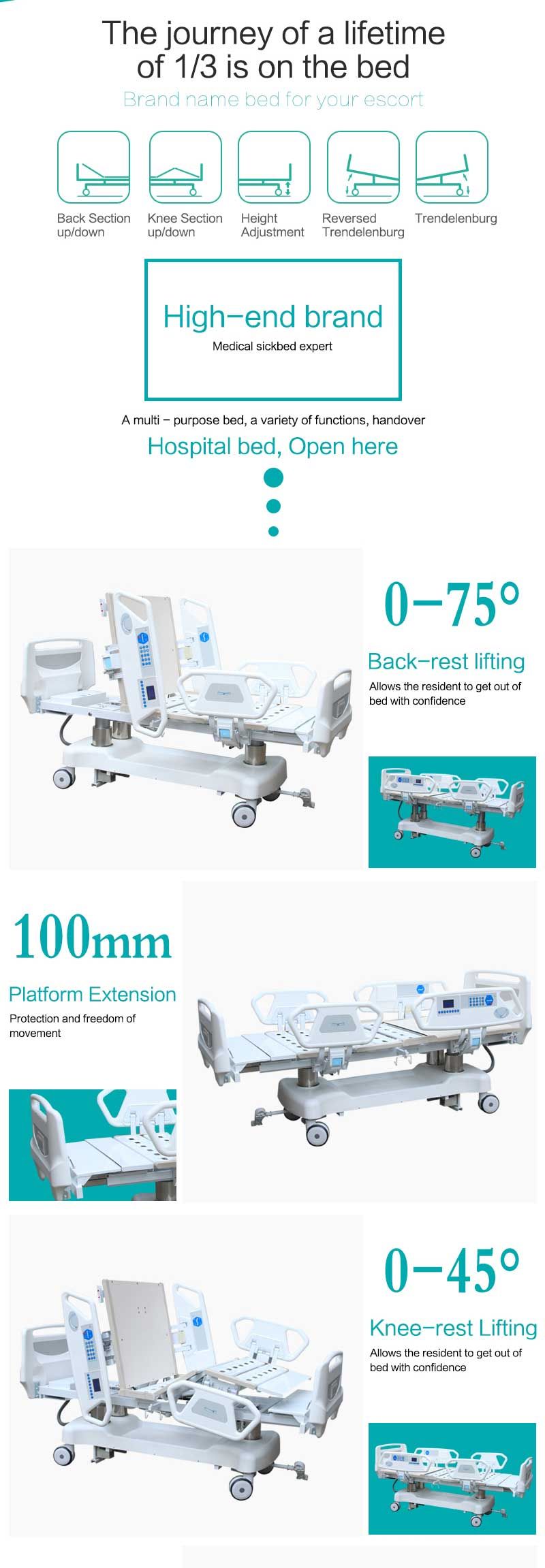

Back-rest Lifting | 0°- 75° |
Knee-rest Lifting | 0°- 45° |
Trendelenburg/Reversed trendelenburg | 0°- 10° |

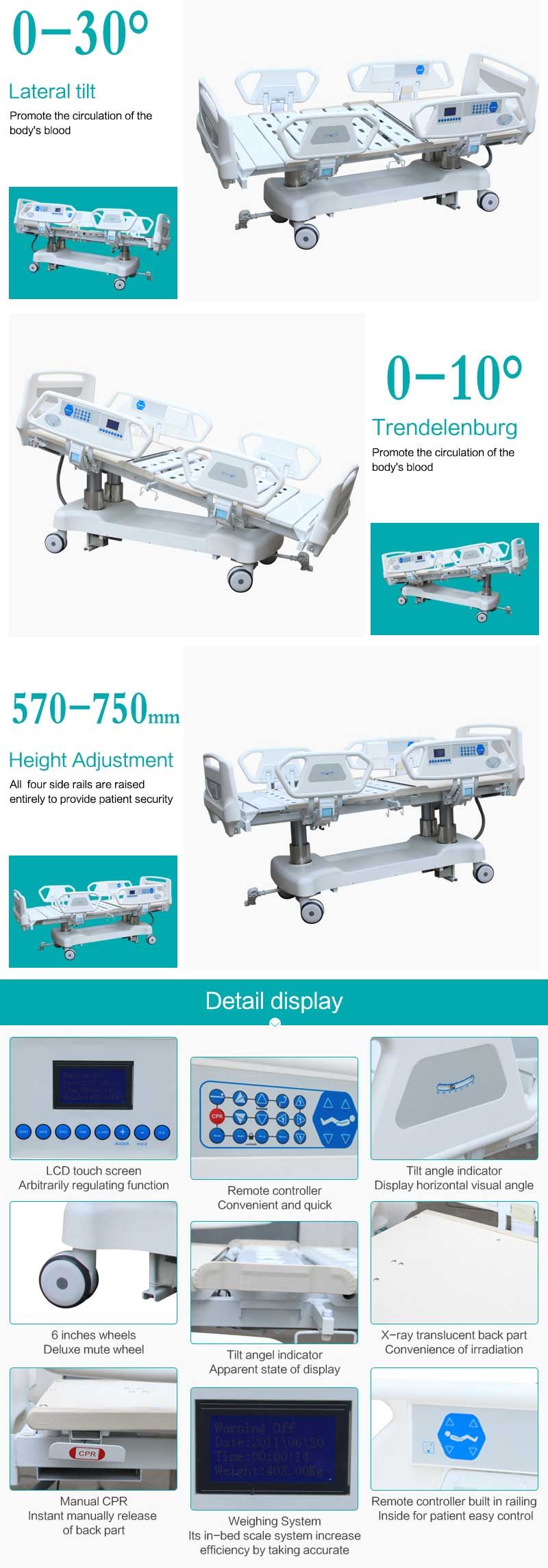

Lateral tilt | 0°- 30° |
Height Adjustment | 570-750mm |
Standard Functions:
* Linak motor and control box.
* Supplied with back-up battery switch.
* One step detachable head and foot board.
* CPR handle, dual side, with clear red mark.
*Manual CPR-Instant manually release of back part
* Remote controller built in railing, both side: inside for patient easy control
Outside for nurse control.
* Title angle indicator in railing: four for guardrail, two for bed frame.
* One button chair position.
* Bed length can be extended when needed.
*Central brake system with 6" wheels.
* Integrated base with all cable and motor inside, the bed can be washed.
*X-ray translucent back part, C-arm function available.
*Weighing System: Its in-bed scale system increase efficiency by taking accurate
weight readings with the patient in any position. Weight readings system, LCD display on side railing.
*Alarm away from the bed.
