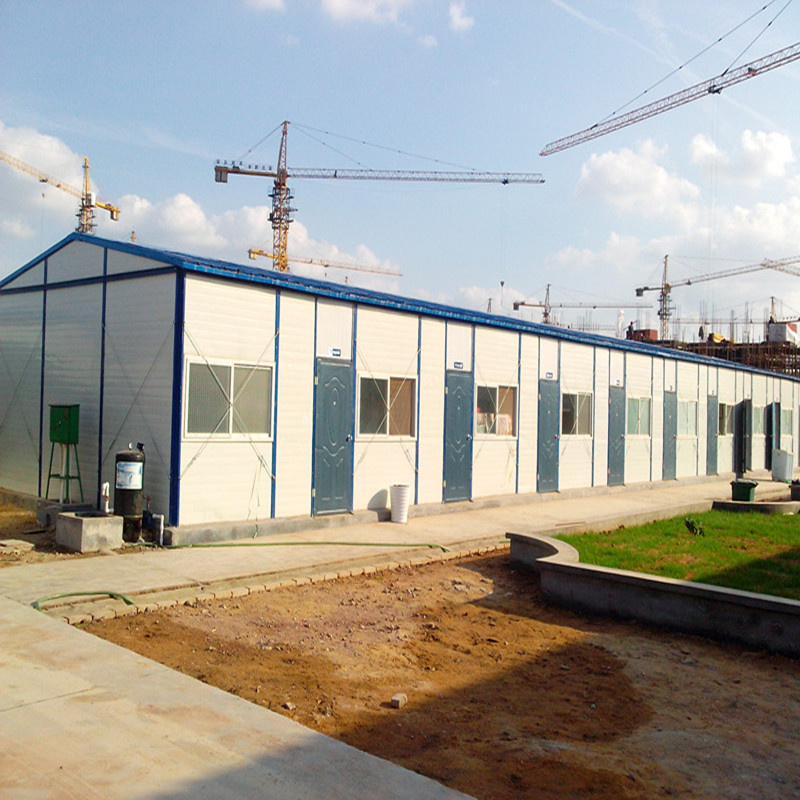

Mobile Prefab Design Steel House for Domitory

Prod Model:	KXD-PHT052
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Customers' Requirement
Warranty:	30-Year Limted Warranty
Color Reference:	Ral
Member Of Engineering Team:	20
Quality Control:	Daily
Life Cycle:	50 Years
Construction Period:	60 Days
Customer Service:	Aftersale Service
Project Management:	Turnkey Solution
Engineering Tools:	CAD
Material:	Steel Structure
Usage:	Workshop
Certification:	ISO
Customized:	Customized

Product Description

1. General technical description for mobile steel house
Technical Parameter:
Technical Parameter of standard prefabricated house:
(1). Wind resistance: Grade 11(wind speed≤ 120km/h)
(2). Earthquake resistance: Grade 7
(3). Live load capacity of roofing: 0.6kn/m2
(4). External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
(5). Second Floor Load Capacity: 150 kg/m2
(6). Live load of corridor is 2.0kn/ m2
(7). Wall permitted loading: 0.6KN/ m2
(8). Ceiling Permitted live loading: 0.5 KN/m2
(9). Wall Coefficient of thermal conductivity: K=0.442W/m2k
(10). Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Steel framework

Main column: Fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube, Q235 Steel Surface working: Alkyd painting, two primary and two surface.

Main triangle Beam: Fabricated by C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Alkyd painting, two primary and two surface.

Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel,

Surface working: Galvanized

Floor
Ground floor will be the concrete foundation with Ceramic tiles or PVC floor leather.
First floor: 18mm plywood with 2.0mm PVC floor leather for living rooms floor

Ceiling
6mm Gypsum board for dry room
12mm PVC ceiling for wet room

Walls
Insulated Steel Sandwich Panel wall
Panel width: 950mm;
Thickness: 50-1200mm.
Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm
Insulation: Polystyrene, Rockwool or Polyurethane
Density of Rockwool: 120Kg/m3
Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
Density of Polyurethane: 40Kg/m3

Door
External door: Insulated with opening dimension 950*2100mm, furnished with lock, with 3 keys.
Inner door: Insulated steel door.

Windows
Window material: PVC window with fly screen, 4mm glass.

Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
16A five hole universal socket.
Double tube fluorescent lamp, 220V, 50-60Hz
Single Switch, Honyar brand, with junction box
Electrical distribution box, box+breakers+earth leakage protective device

Optional Water system fittings
(1). Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
(2). Sanitary ware:
Western Close tool: Ceramic, with pipes and installation fittings
Urinal: Ceramic, with pipes and installation fittings
Wash basin: Ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture

Temporary building Characteristics:
(1). Environment protective, no garbage caused
(2). Doors, windows and interior partitions can be flexibly fixed
(3). Beautiful appearance, different colors for the wall and roof.
(4). Cost saving and transportation convenient
(5). Anti-rust and normally more than 15 years using life
(6). Safe and stable, can stand 8 grade earthquake.

2. Our Services:
(1). Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.
(2). Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.
(3). Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Material List For Prefabricated House
Main Steel Frame
Steel  column	Fabricated by Q235 or Q345 Steel,   80*80 or 100*100 or 120*120 or 150*150 Square Tube, alkyd paiting, two primary painting, two finish painting.
Triangular Steel structure roof	Fabricated by Q235 or Q345 Steel, C80, C100, C120, C140 Section steel,  alkyd paiting, two primary painting, two finish painting.
Roof Purlin	Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel,  alkyd paiting, two primary painting, two finish painting.
Ordinary bolt	4.8S, Galvanized
Roof and Wall
Roof Panel	A: Insulated Steel Sandwich Panel wall (1) Panel width: 950mm; (2) Thickness: 50-1200mm. (3) Powder coated Color steel on both sides:  0.4mm/0.5mm/0.6mm B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane (1) Density of Rockwool: 120Kg/m3 (2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 (3) Density of Polyurethane: 40Kg/m3 (4) Density of Fiber Glass:40Kg/m3, 60Kg/m3
Wall Panel	A: Insulated Steel Sandwich Panel wall (1) Panel width: 950mm; (2) Thickness: 50-1200mm. (3) Powder coated Color steel on both sides:  0.4mm/0.5mm/0.6mm B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane (1) Density of Rockwool: 120Kg/m3 (2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 (3) Density of Polyurethane: 40Kg/m3 (4) Density of Fiber Glass:40Kg/m3, 60Kg/m3
Edge Cover	0.4mm galvanized color steel , angle Alu.
Fasteners & Accessoreis	Nails\glue ect
Ceiling&Flooring
Ceiling	6mm gypsum board,with steel keel
Plywood	18mm film faced plywood
Floor feather	1.5mm  PVC floor leather
Door and window
Door	(1) External door: Single open door. Insulated with opening dimension 950*2100mm, furnished with lock  with 3keys. (2) Inner door: Single open door. Insulated steel door.
Window	4mm glass PVC window witn flying screem
Electrical System
Electric Cable	(1) Three diferent color. (2) Lighting: 2.5m m2. (3) Air condition: 4.0mm2. (4) BV cable, solid core.
PVC Wire Channel	PVC wire channel
Lights	Double tube fluorescent lamp, 220V,50-60HZ
Switches	Single Switch, with junction box
Socket	16A five hole univesal socket.
Power Distribution Cabinet	Box+breakers+earth leakage protective device
Water&Plumbing system(choose)
Water drain pipe	(1) PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years. (2) Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
Sanitary ware	(1) Western Close tool: ceramic, with pipes and installation fittings (2) Urinal: ceramic, with pipes and installation fittings (3) Wash basin: ceramic, with post, faucet, pipes and installation fittings (4) Shower head, Shower base, Water mixture
Plumbing System and Rain Water Drainage System as per building design

No.	Sort	Name	Specification
1	Specification	length	No limited
2		Width	Less than 11m
3		Wall height	2600mm/2800mm
4		Clear height	2600mm/2800mm
5		Roof slope	15°
6	Standard accessory	Wall board	75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k.
7		False ceiling	75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k.
8		Roof board	color steel corrugated sheet, 0.5mm thickness
9		Outside door	Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam.
10		Inside door	SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
11		Window(W-1)	PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.
12		Window(W-2)	PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen.
13		Channel	Galvanized Steel Plain Sheet press moulding Material: Q235. Painted
14		Post	Square steel tube Material: Q235. Painted
15		Purline	Square steel tube Material: Q235. Painted
16		Roof truss	Square steel tube Material: Q235. Painted
17		Decoration and connection	color steel sheet, 0.35mm thickness
18	Option	Decorative floor	PVC, laminated or ceramic tile
19		Drainage system	Provided plan, design and construction
20		Electric system	Provided plan, design and construction
21	Technical parameter	Bearing load	30kg/m2
22		Wind pressure:	0.45KN/M2
23		Fire proof	B2 grade
24		Resistant temperature	-20 ºC to 50ºC



No.	Item	Material
1	steel stucture	mainly sqaure tube, under grey powder varnish
2	wall	EPS Steel sandwich panel
3	roof	EPS Steel sandwich panel
4	Window	PVC sliding window
5	Door	sandwich panel  composited door
