Hot Searches:

Network Switch Rack 4u 6u 9u Glass Door 19" Wall Mount Cabinet

Price:	US $ 26/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Model No.:	Wl
Product Name:	Server Cabinet
Installation Type:	Vertical
Optional Color:	Black,Gray,White
Feature:	Wall Mounted Cabinet
Width:	550,600mm
Depth:	450mm
Surface Finish:	Powder Coating
Material:	SPCC Cold Rolled Steel
Type:	Network Cabinet
Usage:	Network Integration System
Installation:	Wall-Mounted Cabinet
Certification:	RoHS
Condition:	New
Fan Number:	Optional
Capacity:	4u-18u

Product Description

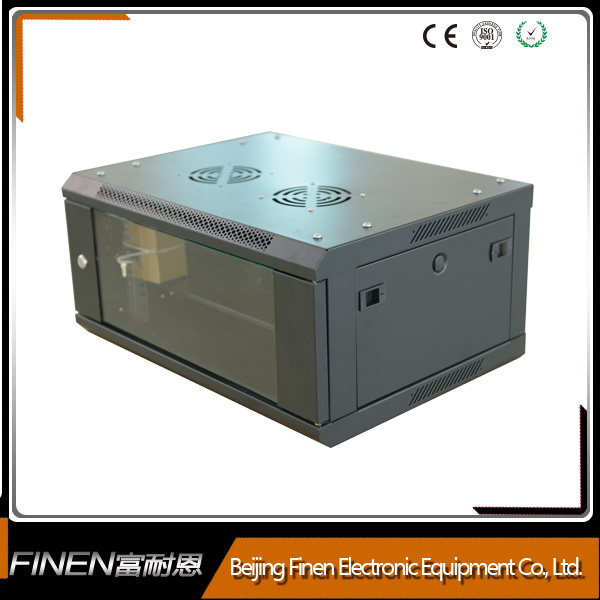

Network switch rack 4u 6u 9u glass door 19" wall mount cabinet

Specification:

Basic Information
1) Standard	Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard
2) Material	SPCC high-quality cold rolled steel
3) Thickness	Mounting profile 2.0mm Others 1.0mm
4) Surface Finish	Degreasing, Pickling, Phosphating, Powder coating
5) Protection Degree	IP20
6) Loading Capacity	60kgs(=132lbs)
7) Color	Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032)
Features

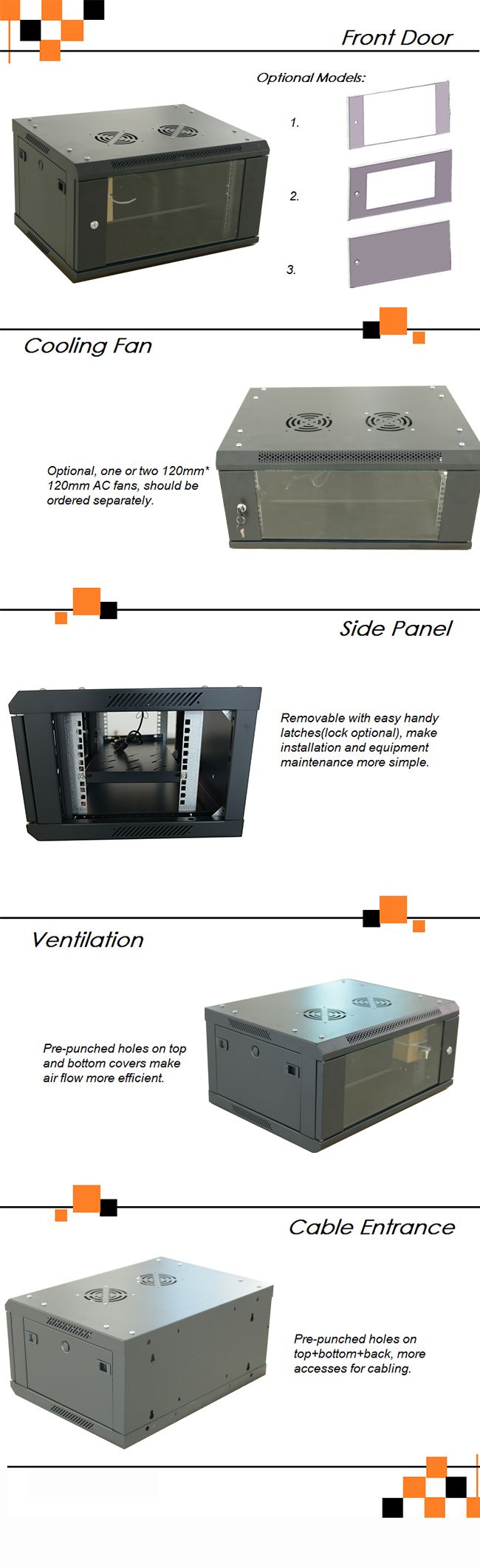

2 Sets of adjustable mounting rails(Zinc Plated) Cage nut style mounting rails Removable/lockable side panels Top and Bottom removable cable slots Glass front door/Vented Rear door Specifications Width - 21.65 Inches (550mm) 23.62 Inches (600mm), Depth - 17.72 Inches (450mm) ,23.62 Inches (600mm) Rail Width - 19 inch EIA Compliant Advantage 1.Secure,firm and reliable 2. Easy to maintain equipment 3. Two Packing Ways: 1).Assembly packing to save labour cost, ready to resell or use 2).Disassembly packing to save space and transport cost, easy to assemble 4.Certification: ISO 9001:2000 5. OEM/ODM service available Recommended options Fan assembly kit PDU Racks Screws,Cage nuts Plastic/Metal Cable management Shelves

Width(mm)	Depth(mm)	Capacity(U)	Height(mm)	Order Number
600	450	4	280	WM6404
		6	368	WM6406
		9	501	WM6409
		12	635	WM6412
		15	769	WM6415
		18	901	WM6418
	600	4	280	WM6604
		6	368	WM6606
		9	501	WM6609
		12	635	WM6612
		15	769	WM6615
		18	901	WM6618

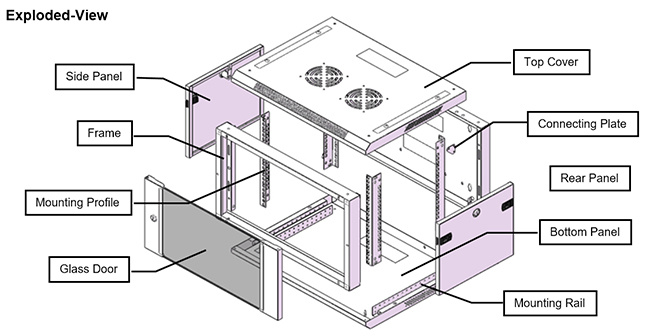

Cabinet Structure

Cabinet Details

Specification

Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.

Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.

Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.

Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.

Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
