| Prod Model: |
MANUAL OBSTETRIC TABLE ECOG032 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Height: |
700mm~1000mm |
| Length And Width: |
2000mmx600mm |
| Leg Board Upwards: |
50o |
| Leg Board Downwards: |
10o |
| Seat Board Upwards: |
30o |
| Sea Board Downwards: |
10o |
| Working Area Mm: |
650X 600 |
| Material: |
Metal |
| Type Of Hospital Bed: |
Manual Bed |
| Using Ambient: |
Hospital |
| Certification: |
ISO13485 |
| Folded: |
Operating Table |
Product Description

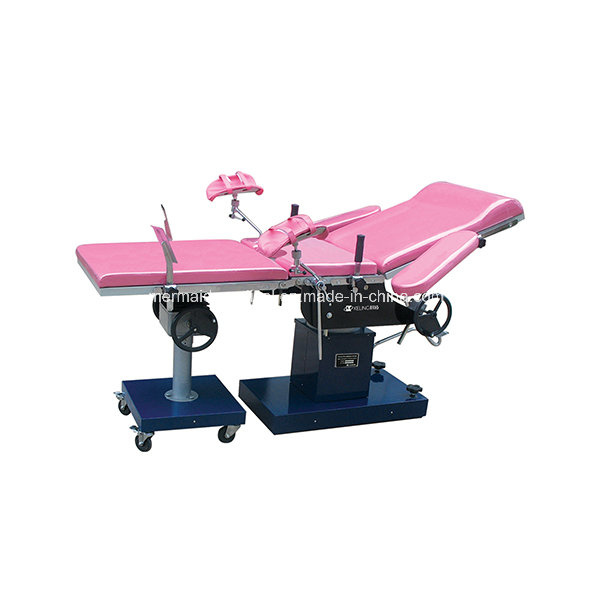

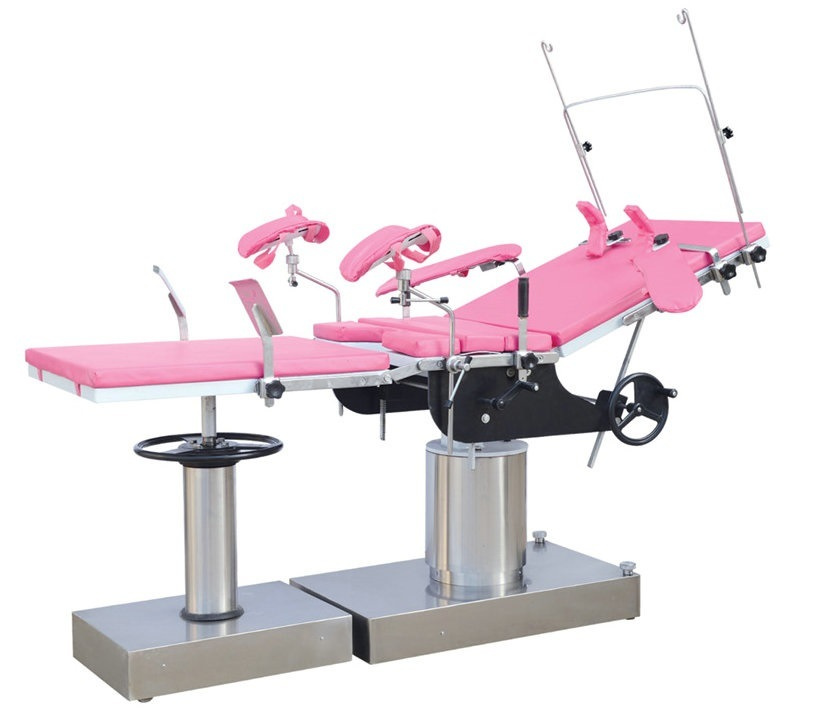

MANUAL OBSTETRIC TABLE ECOG032
· Elevating system- Electro Hydraulic Powered by foot pedal, 3/4 section, Poly foam mattress with synthetic leather cover, capable of height adjustment, Consisting of back & seat section, which are covered with 1 piece Abs synthetic resin; Other main Parts are of stainless steel.
· An auxiliary Section (leg section) is to be connected with foot section to be used for operation/caesarean section.
· Table top controls of Trendelenburg & reverse Trendelenburg positions, easily adjustable with a one/two hand wheel crank at table side; Back section upto 40 degree or higher from supine to sitting position permits obstetric examination; Adjustable by a quick action locking lever.
· A detachable portion of the table which can be pushed below the 1st haft of the table during delivery.
· Knee crutches should be of average diameter & strength to bear the weight. One stainless steel rods (6" length) on each side of the table for the patient to hold during labour pain.
· Table length: 1900mm & rotatable in all direction with leg section.
· Table width: 600mm · Height adjustment: 650mm-1000mm
· Back section: 75 degree up to 0 deg down
· Seat section: 20 degree up and 8 degree down
Standard accessories including per unit:
· Knee crutches -2 pcs
· Head rest - 1 pc.
· Shoulder support with pad - 2 pcs
· Padded arm support - 2 pcs
· Wrist strap - 01 pcs
· Screen frame - 01 pcs
· Foot step - 01 pc
