| Prod Model: |
XHD-3B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| OEM: |
Available |
| Warranty: |
12 Months |
| Factory Location: |
2 Hours Drive From Beijing |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Three-function |
| Certification: |
ISO9001 |
Product Description

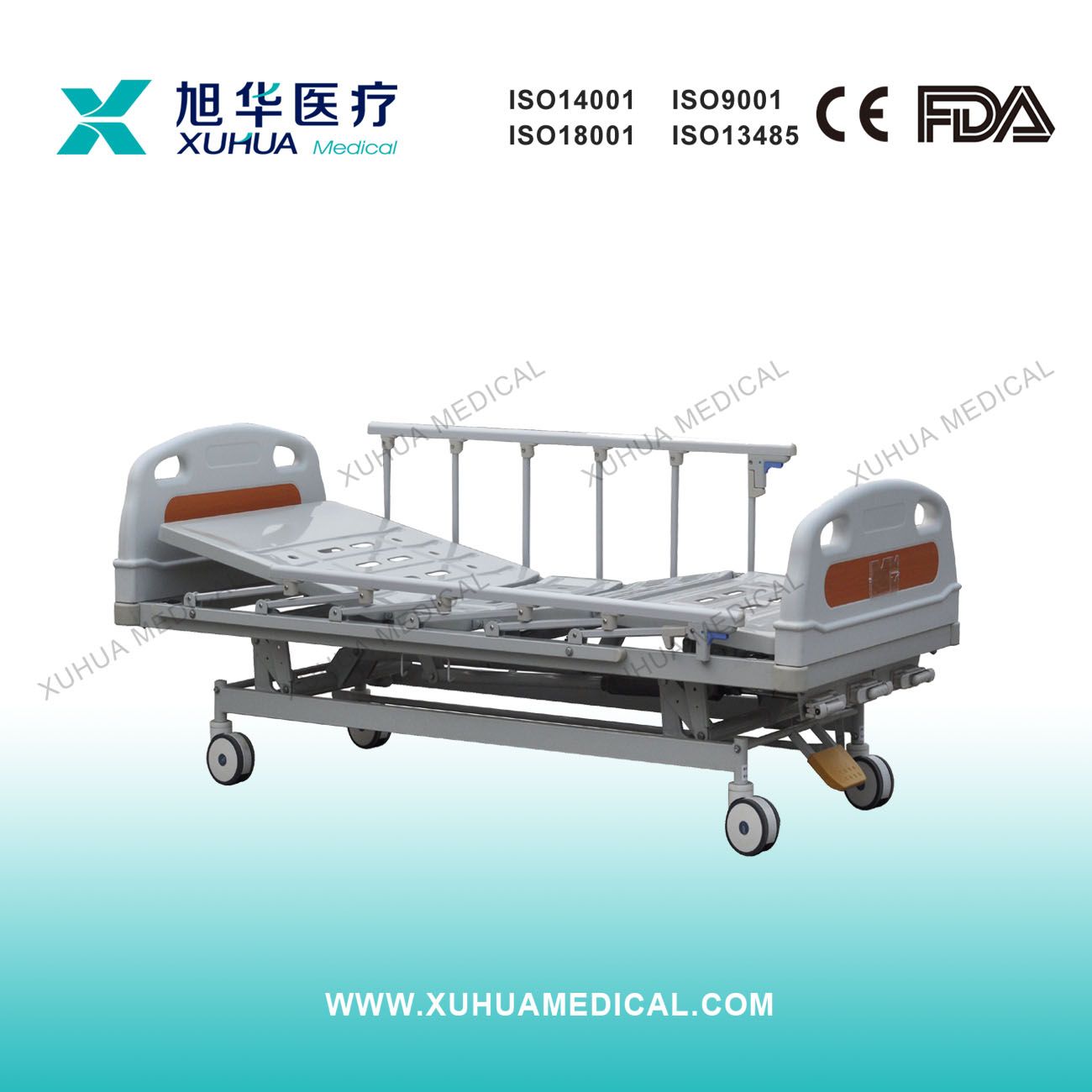

Product name: Three Functions Electric Hospital Patient Bed
Model: XHD-3BTechnical Specifications: 1. Size:L2150*W980*H500-720mm
2. The head and foot of the bed is adopt advanced ABS plastic, with self-locking device, easy for disassebling and cleaning.
3. Bed boards is made of cold-roll steel sheets. Punching press and shaping in one time. Four sections lying platform.
4. Epoxy painted steel construction with epoxy powder coated, resistant to corrosion.
5. Bed platform consists of four sections metal sheets.
6. Moves easily by diameter 125mm casters with central braking system.
7. Three functions are adjustable electrically, controlled by the hand remote.
8. Backrest adjustment angle: 0-75° by electrical motor controlled with handset controller;
9. Legrest adjustment angle: 0-45° by electrical motor controlled with handset controller;
10. Height adjustment: 500-720mm by electrical motor controlled with handset controller.
11. Bed equipped with a pair of aluminum alloy folding side rails.
12. Bearing capacity: 235kg
13. Certificates: ISO9001, ISO13485 and CE
| Product name | Three Functions Electric Hospital Patient Bed |
| Size | L2150*W980*H500-720mm |
| Materials | Steel with epoxy coating, ABS plastic |
| Bed main structure | Cold-roll steel with epoxy coating |
| Bed head and foot board | ABS material |
| Side rails | Aluminum alloy |
| Functions adjustable | Electrically adjustable |
| Backrest angle | 0-75° |
| Leg section angle | 0-45° |
| Bed height adjustable | 500-720mm |
| Casters | Diameter 125mm casters with central brake |
| Net weight | 125kg |
| Package size | 2200*1000*600mm |
Trade Terms:1) Price valid date: 3 months.
2) Payment term: 30% TT paid in advance, with 70% balance paid before shipment. Or L/C at sight.
3) Delivery time: 30 days after receive the deposit.
4) Package: standard export carton package or as customerized.
After sales service:We respect and positively following your feedback after receive the goods.
We provide 12 Months warranty after goods arrive.
We respond your complain within 48 hours.
Professional service: We have well-organized working team, will reply all your inquiry and requirements timely and professionally.
We cooperate with customers for tender bidding and provide all the necessary documents.
With professional R&D department, all technical support are from our engineers team.

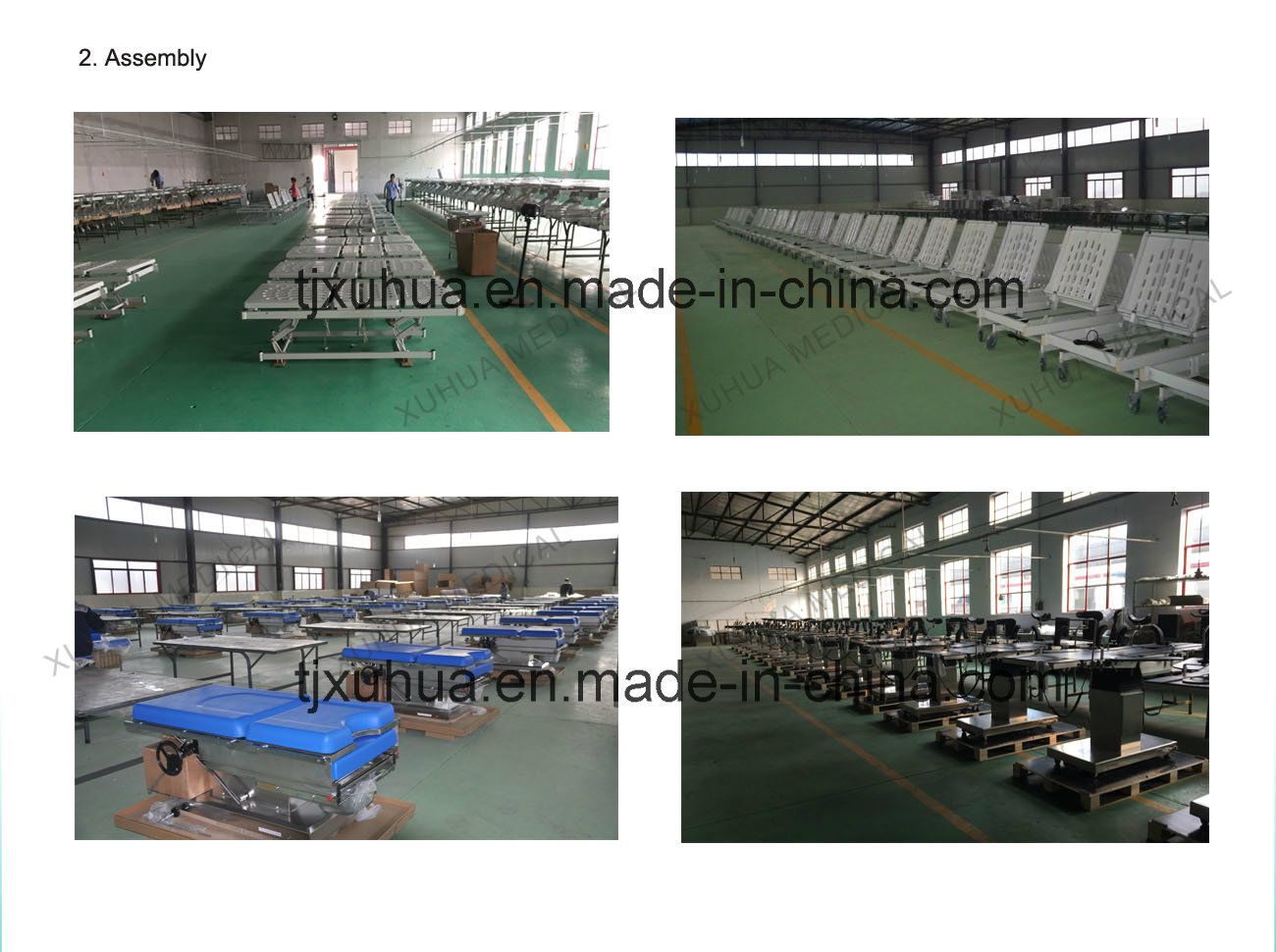

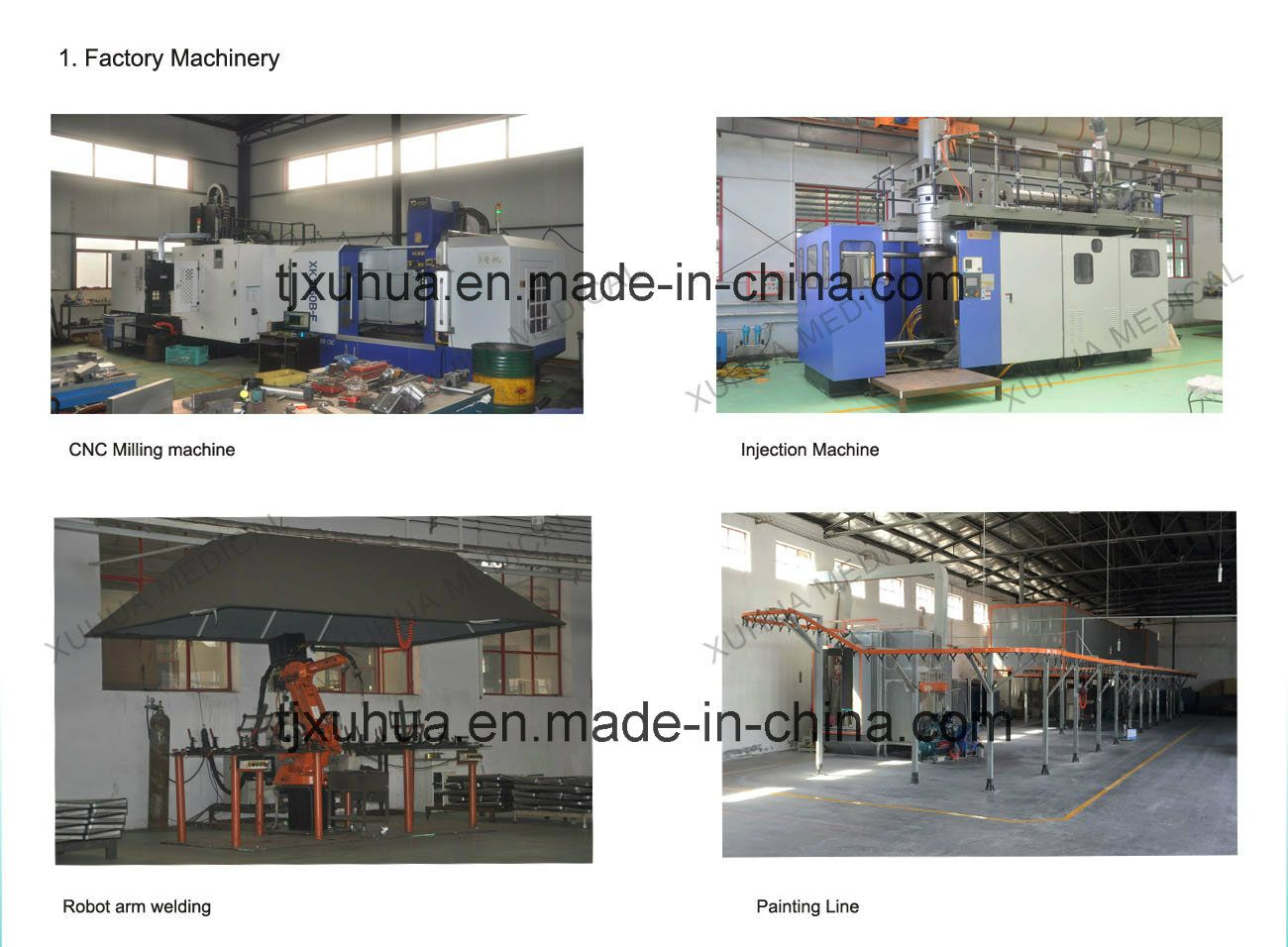

Factory Show:
As an appointed factory by Tianjin Medicine Administrative Bureau, Bazhou Xuhua Medical Equipment Co., Ltd. is a famous factory among National Medical Pharmacy and the line of Chinese medical equipment. Our factory is special in more than 180 kinds of products, such as traction beds controlled by computer software, series of sickbeds, cabinets, tables, stands, etc. Can fully satisfy the use of hospitals in different levels.
Our managing concept is:
"Quality the first, customer the uppermost Prosper the factory by science and technology, get rid of the stale and bring forth the fresh"
ISO9001 international standard is strictly carried out during the whole process of production, we have advanced technology and equipment, high technique, circumspect service and high quality goods. We will serve the customers of all over the world by reliable reputation and sincerity.
We deeply believe that the development of an enterprise is depend on the support of customers, we sincerely hope more and more customers will cooperate with us, we will provide you the best service and high quality products.
