| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20units |
| Pay Type: | L/C,T/T |
| Prod Model: | FRD-II-2001 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Light Grey Ral7032 |
| Security Level: | A1 |
| Function: | Antimagnetic |
| Certification: | UL |
| Appearance Of Height: | 701-1000mm |
| Appearance Of Width: | 461-560mm |
| Appearance Of Depth: | >500mm |
| Material: | Galvanized Steel Sheet |
| Door Type: | Drawers |
| Application: | Office |

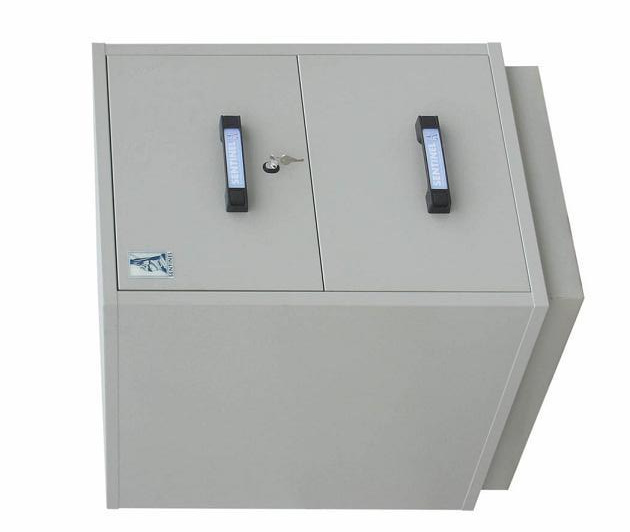

UL824FRD-II-2001
Dimension:
864(H)*551(W)*824(D)mm
34"(H)*22"(W)*32"(D)
Innner size (Paper drawer):
294(H)*388(W)*636(D)mm
12"(H)*15"(W)*25"(D)
Packing size:
984(H)*570(W)*870(D)mm
39"(H)*22"(W)*34"(D)
N.W.: 232KG G.W.: 246KG
Locking:
Standard is one push-in key lock at top drawer giving control to all drawers.Color:
Standard is light grey RAL7032. Other colors could be accepted if the order is one 20 feet container at least.
Package:
Each cabinet to be wrapped all over with PE airmat, protected with thick foam material sheet in the front and at the top of the cabinet and then covered a corrugated carton on the plywood pallet.
Standard is carton box package. Wooden crate package is available with extra charges.
| Model No. |
External Dims HXWXD(mm) |
Packing Dims HXWXD(mm) |
Weight(KG) |
Loading for 20' container (units) |
Loading for 40' container (units) |
|
| Net | Gross | |||||
| FRD-II-2001 | 864x551x824 | 984x570x870 | 232 | 246 | 52 | 108 |
