2.5m Small Vertical Wheelchair Lift Table for Disabled
| Price: | US $ 5362/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
2.5m small vertical wheelchair lift table for disabled
1. Introduce
Our wheelchair lift consists of a platform with high side walls, an upper landing gate, a
platform mounted gate, a drive system and easy-to-use operating controls.
Wheelchair lift is divided into two types according to material, which Spray type and Stainless Steel type.
Characterized by novel design, perfect stability and safety, nice appearance, low noise andso on, with 1.0-8.0m working range, 150-300kg carrying capacity. Ideal for indoor and
outdoor applications.
2. Specification
3. Detailed parts
4. Product show
5. Company Information
MORN has devoted itself to the research and development, design and manufacture, salesand service of scissor lift, cargo lift and other hydraulic equipment. As a more than 8 years
export experience supplier of hydraulic equipments supplier, Sinicmech machinery has
more than 20000 square meters producing shop and assembly shop.
That we have many advanced production equipment for cutting steel structure, machine
parts, including scissor structure, platform, hinge pin, beams, articulated boom and other
small parts. which made the precise scissor lift structure and boom lift, beams, and even
the small needed parts, this is a great improve for our products quality and user's safety.
6. After-sale service
A. We offer 12 month warranty apart from artificial faults, during warranty time, we will bearthe cost of parts and freight.
B. If it is necessary for you, our engineer are available to service machinery overseas.
C. We offer 24 hours service for technical support and any assistance.
1. Introduce
Our wheelchair lift consists of a platform with high side walls, an upper landing gate, a
platform mounted gate, a drive system and easy-to-use operating controls.
Wheelchair lift is divided into two types according to material, which Spray type and Stainless Steel type.
Characterized by novel design, perfect stability and safety, nice appearance, low noise andso on, with 1.0-8.0m working range, 150-300kg carrying capacity. Ideal for indoor and
outdoor applications.
2. Specification
Name | No. | Lift capacity (kg) | Materials | |
Wheel-chair vertical lift | WL0.25-N | 250 | Stainless steel | |
Platform size | 1430mm(L)* 900mm(W) | |||
Dimension | 1430mm(L)*1000mm(W)* [Travel height +700mm(H)] | |||
Max Platform Height | N(mm) | |||
Min Platform height | 40mm | |||
Configuration | Open through or front and side entrances | |||
Speed | 60mm/s | |||
Load capacity | 250KG | |||
Control voltage | 24V/DC | |||
Power Output | 0.75kw-2.2kw | |||
Power Input | 220V/50HZ/25A (or customized for local power supply) | |||
Drive System | Hydraulic | |||
Control Mode | Inching Switch or Automatic | |||
Drive Control | Self-resetting system | |||
Overload | Protection Over current relay | |||
Material of Platform | Spraying plastic | |||
Guard panel & drive cabinet (framework) | Spraying plastic
| |||
Automatical ramp | yes | |||
Column switch | Two column switch, one is on the ground floor, one on the first floor | |||
Operation Panel | Polished Stainless steel(up down and Emergency drop valve) | |||
Safety Wane Working Range | 75° | |||
Working Condition | Both indoors and outdoors | |||
Working temperature | From -10°~60°C | |||
Installation
| Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) | |||
Control Device
| Calling box (installed on the wall nearby) and remote controller(Extra optional) | |||
Emergency Stop
| The lifting and lowering process can be stopped immediately by pressing the emergency button. | |||

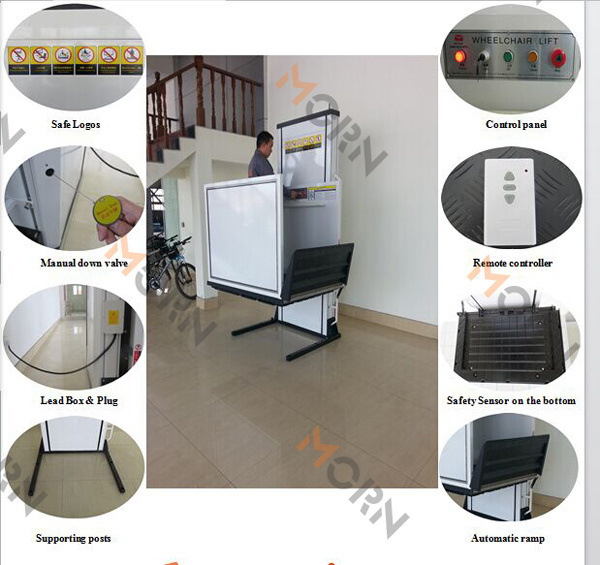

3. Detailed parts
4. Product show
5. Company Information
MORN has devoted itself to the research and development, design and manufacture, salesand service of scissor lift, cargo lift and other hydraulic equipment. As a more than 8 years
export experience supplier of hydraulic equipments supplier, Sinicmech machinery has
more than 20000 square meters producing shop and assembly shop.
That we have many advanced production equipment for cutting steel structure, machine
parts, including scissor structure, platform, hinge pin, beams, articulated boom and other
small parts. which made the precise scissor lift structure and boom lift, beams, and even
the small needed parts, this is a great improve for our products quality and user's safety.
6. After-sale service
A. We offer 12 month warranty apart from artificial faults, during warranty time, we will bearthe cost of parts and freight.
B. If it is necessary for you, our engineer are available to service machinery overseas.
C. We offer 24 hours service for technical support and any assistance.
| Prod Model: | WL0.25-2.5 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Load Capacity: | 250kg |
| Max.Lifting Height: | 2.5m |
| Platform Size: | 1430*900mm |
| Remote Control: | Optional |
| Platform: | Antiskid |
| Emergency Stop: | Manual Emergency Stop Valve |
| Material: | Spraying Plastics |
| Enter Or Exit Direction: | 90° or 180° |
| Installation: | on The Ground, No Pit |
| Warranty: | 12 Months Apart From Man Made Faults |
| Application: | Building Crane |
| Carrying Capacity: | Special Weight Level |
| Driven Type: | Hydraulic |
| Running Mode: | Stationary |
| Feature: | Insulating |
