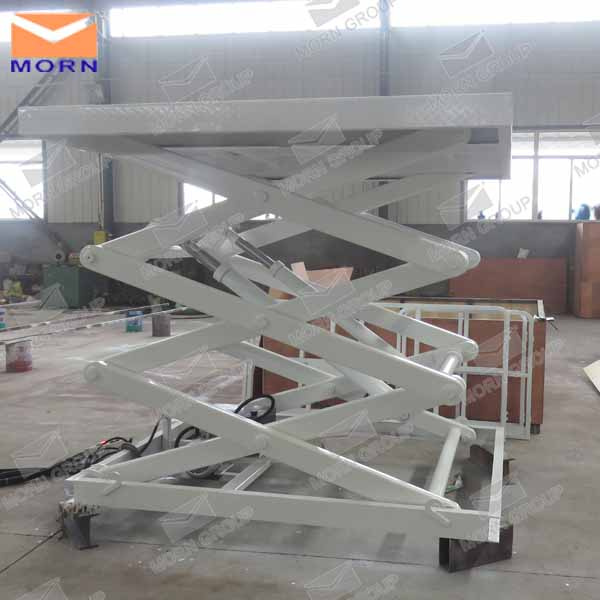

Small Hydraulic Scissor Lift Table
| Price: | US $ 3000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
small hydraulic scissor lift table
1. hydraulic scissor lift introduce
---It is used to convey the goods from one working level to another.
---The control panels are available at the designated floors and one the lift platforms.
---Heavy capacity,platform size and lifting height can be chosen according to your actual needs.
2. mini scissor lift advantages:
---Installed in the pit,do not occupy space.
---When lifting up or down, up,down and stop three buttons control the lift.
---Great load capacity, 120% capacity load test. skidproof platform.
---Sensitive overload protection devices locking device for failing protection.
3. Model list-for your reference
Pls note: The lift table is customized, so pls kindly confim the lifting height, platform size
and load capacity you need.
4. Safety Precaution:
1). Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2). Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3). Emergency decline valve: it can go down when you meet an emergency or the power off.
4). Anti-dropping device: Prevent falling of platform
5.scissor lift platform is generally used for lifting cargo and people to working place. Loading
and unloading goods from ground to underground or to other floors.
6. Compnay information:
MORN has devoted itself to the research and development, design and manufacture, sales and service of scissor lift, cargo lift and other hydraulic equipment. As a more than 6 years export experience supplier of hydraulic equipments supplier, Sinicmech machinery has more than 20000 square
meters producing shop and assembly shop.
That we have many advanced production equipment for cutting steel structure, machine parts, including scissor structure, platform, hinge pin, beams, articulated boom and other small parts. which made
the precise scissor lift structure and boom lift, beams, and even the small needed parts, this is a greatimprove for our products quality and user's safety.
7. Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
8. Main parts introduce:
1. Platform and scissor structure: 3-6mm thick anti-skid checker plate to make the platform. Scissor structure adopts high-strength rectagular steel tubes or steel plates, strong and durable.
2. Hydraulic power unit (power pack): Brand Lisheng, first class made in China. 1.5-7.5KW based on actual need.
3. Hydraulic oil tube: High pressure tube with double expanded metal.
4. The control apparatus Brand DELIXI with 24V voltage.
5. Limit switch: convert mechanical displacement into an electrical signal, first class in China.
9. Please tell us the following info and then we will send our quotation and design drawing to you ASAP.
1) Max platform height
2) Loading capacity
3) Table size (L*W)
10.Contact us:
Sales manager: Iris Yue
Cell phone : 0086-18660129636
Address: NO. 15612 Century Avenue, High-Tech Zone, Jinan, China
1. hydraulic scissor lift introduce
---It is used to convey the goods from one working level to another.
---The control panels are available at the designated floors and one the lift platforms.
---Heavy capacity,platform size and lifting height can be chosen according to your actual needs.
2. mini scissor lift advantages:
---Installed in the pit,do not occupy space.
---When lifting up or down, up,down and stop three buttons control the lift.
---Great load capacity, 120% capacity load test. skidproof platform.
---Sensitive overload protection devices locking device for failing protection.
3. Model list-for your reference
Pls note: The lift table is customized, so pls kindly confim the lifting height, platform size
and load capacity you need.
| Model | Load | Platform size | Lifting height | No-working height | Power |
| SSL3-2.4 | 3T | 2.0*2.0M | 2.4M | 660MM | 4KW/380V |
| SSL2-5.0 | 2T | 2.1*1.2M | 5.0M | 870MM | 4KW/380V |
| SSL3-6.5 | 3T | 2.2*1.9M | 6.5M | 1520MM | 5.5KW/380V |
| SSL1.5-3.8 | 1.5T | 2.2*2.0M | 3.8M | 700MM | 4KW/380V |
| SSL2-6.0 | 2T | 2.0*1.3M | 6.0M | 1200MM | 4KW/380V |
| SSL1.5-0.8 | 1.5T | 2.0*1.5M | 0.8M | 500MM | 3KW/380V |
| SSL1 -4.3 | 1T | 2.0*1.8M | 4.3M | 800MM | 4KW/380V |
4. Safety Precaution:
1). Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2). Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3). Emergency decline valve: it can go down when you meet an emergency or the power off.
4). Anti-dropping device: Prevent falling of platform
5.scissor lift platform is generally used for lifting cargo and people to working place. Loading
and unloading goods from ground to underground or to other floors.
6. Compnay information:
MORN has devoted itself to the research and development, design and manufacture, sales and service of scissor lift, cargo lift and other hydraulic equipment. As a more than 6 years export experience supplier of hydraulic equipments supplier, Sinicmech machinery has more than 20000 square
meters producing shop and assembly shop.
That we have many advanced production equipment for cutting steel structure, machine parts, including scissor structure, platform, hinge pin, beams, articulated boom and other small parts. which made
the precise scissor lift structure and boom lift, beams, and even the small needed parts, this is a greatimprove for our products quality and user's safety.
7. Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
8. Main parts introduce:
1. Platform and scissor structure: 3-6mm thick anti-skid checker plate to make the platform. Scissor structure adopts high-strength rectagular steel tubes or steel plates, strong and durable.
2. Hydraulic power unit (power pack): Brand Lisheng, first class made in China. 1.5-7.5KW based on actual need.
3. Hydraulic oil tube: High pressure tube with double expanded metal.
4. The control apparatus Brand DELIXI with 24V voltage.
5. Limit switch: convert mechanical displacement into an electrical signal, first class in China.
9. Please tell us the following info and then we will send our quotation and design drawing to you ASAP.
1) Max platform height
2) Loading capacity
3) Table size (L*W)
10.Contact us:
Sales manager: Iris Yue
Cell phone : 0086-18660129636
Address: NO. 15612 Century Avenue, High-Tech Zone, Jinan, China
| Prod Model: | SSL1-4.3 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Platform: | Antiskid |
| Max Load Capacity: | 2000kg |
| Installation: | in a Pit |
| Lifting Point: | Four Points for Easy Hoist |
| Guardrail(Optional): | 1100mm |
| Lift Speed: | 3-6m/Min |
| Surface: | Rust-Proof |
| Painting: | Epoxy Paint |
| Voltage: | 220V/380V, AC Power, 1 or 3 Phase, Can Also Be Mad |
| Color: | Yellow, Blue, Green, Black as Your Requirement |
| Application: | Work Platform |
| Carrying Capacity: | Light Level |
| Driven Type: | Hydraulic |
| Running Mode: | Stationary |
| Feature: | No |
