Abrasive Sand Blast Cabinet
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |
Abrasive Sand Blast Cabinet

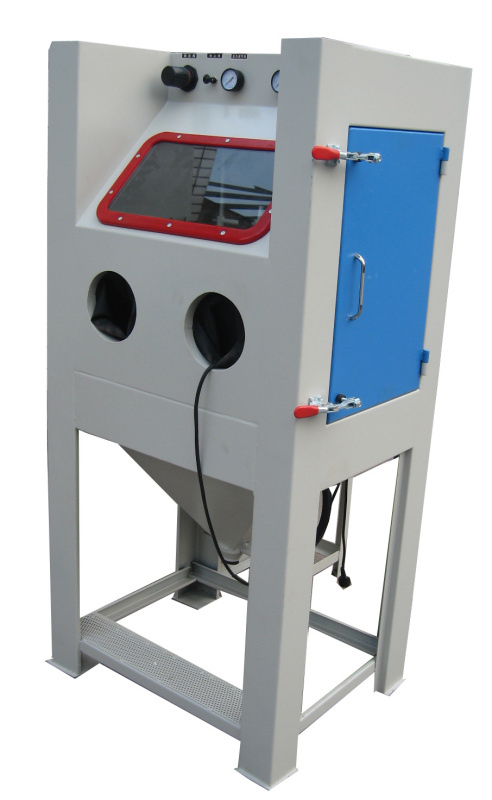

Manual box sandblasting machine COLO-9070B
dry siphon production machine uses a negative pressure dust collector to ensure a longer duty cycle, a cleaner work area, and a longer blower service life.
Pulse dust removal, air flow control
Dimensions of equipment
1130mm long X900mm wide X1650mm high
Equipment working room dimensions
700mm length X900mm width X550mm height
Dust box
Pulse dust removal, air flow control
Dust removal fan
0.37KW. 220V 50HZ
Separator size
750 high mmX250mm diameter
flashlight
18W fluorescent lamp one
The number of guns
1 pcs (aluminum alloy with boron carbide nozzle)
This sandblasting machine is based on abrasive as the medium to compressed air as the driving force on the surface of the solid type of workpiece blasting processing equipment.
This machine is suitable for the following types of workpiece surface processing:
1) for dry blasting (pill) processing;
2) for small and medium parts of the single-piece, small batch blasting (pills) processing;
3) clean up the heat treatment pieces, welding parts, castings, forgings and other surface oxide, clean-up quality can reach Sa3 level;
4) cleaning machine processing parts of the micro-burr, surface residues;
5) the workpiece spraying, electroplating before the surface pretreatment processing, available active surface, to improve spraying, plating layer in addition to focus;
6) glass surface printing, sculpture;
7) can be within a certain range to increase or decrease the surface roughness Ra value;
8) to change the stress state of the workpiece surface, can improve the wear resistance of parts and fatigue strength;
9) to improve the movement with the coupling of the lubrication conditions, can reduce the movement with the occasional movement of noise;
10) also applies to the renovation of the old parts processing.
11)
3, applicable working conditions
1) Environmental conditions: The machine should be in the ambient temperature of -10 ~ +45 ºC, relative humidity of not more than 85% of the environmental conditions of normal work;
2) Power conditions: single-phase AC power supply, 220v, 50Hz, the maximum power of the machine see Schedule -3;
3) Air source conditions: access to the compressed air gauge pressure of 0.4 ~ 0.7MPa, compressed air flow rate of not less than 1m3 / min
| Prod Model: | colo-9070B |
|---|---|
| Granularity: | 12 Month |
| Delivery Date: | 10 Working Days |
| Packing: | Wood Case |
| OEM: | Yes |
