Automatic Case Maker (lining inner paper)
| Price: | US $ 60000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

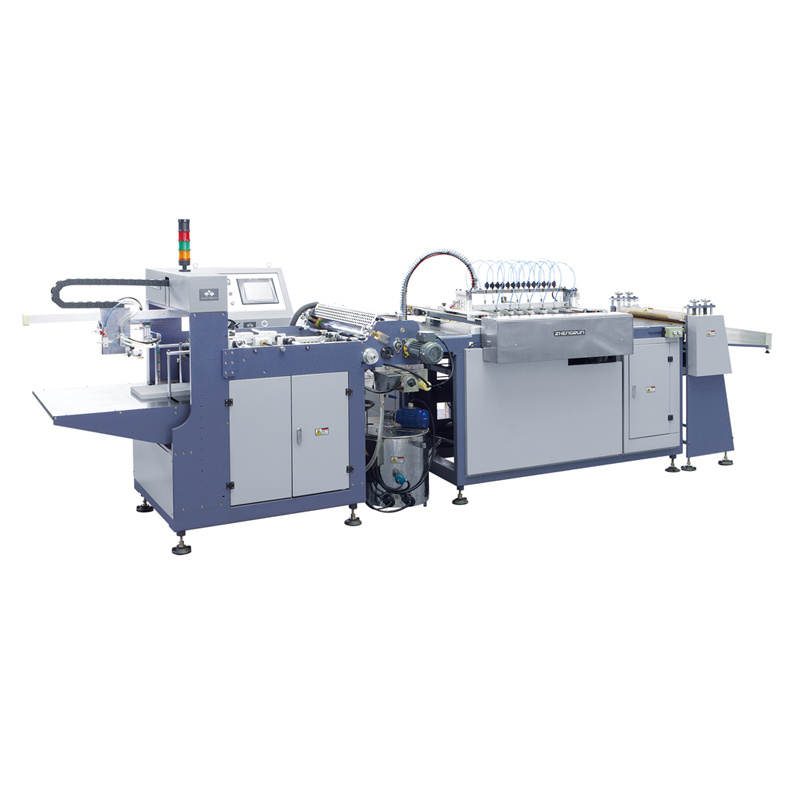

FD-AFM540S Automatic lining machine
Features:
1. The feeder in this machine adopts back-push feeding system, which is controlled pneumatically, and its structure is simple and reasonable.
2. Adopt imported ultrasonic paper tester device to keep two pieces of layered paper from entering into the machine at the same time.
3. The cardboard feeding table is controlled by linear guide line and servo motor, its location is correct and quick.
4. Cardboard table adopt non-stop feeding system which can efficiently improve working speed..
5. The whole machine adopts PLC control, featuring in simple operation. The troubles are displayed directly on the screen, which helps the operator easily remove them.
6. Optional device: glue viscosity meter
Main Technical Parameter:
*We don't provide air compressor.
Features:
1. The feeder in this machine adopts back-push feeding system, which is controlled pneumatically, and its structure is simple and reasonable.
2. Adopt imported ultrasonic paper tester device to keep two pieces of layered paper from entering into the machine at the same time.
3. The cardboard feeding table is controlled by linear guide line and servo motor, its location is correct and quick.
4. Cardboard table adopt non-stop feeding system which can efficiently improve working speed..
5. The whole machine adopts PLC control, featuring in simple operation. The troubles are displayed directly on the screen, which helps the operator easily remove them.
6. Optional device: glue viscosity meter
Main Technical Parameter:
| Model | FD-AFM540S | |
| 1 | Paper size (A×B) | MIN: 100×200mm MAX: 540×1000mm |
| 2 | Paper thickness | 100~200g/m2 |
| 3 | Cardboard thickness (T) | 1~3mm |

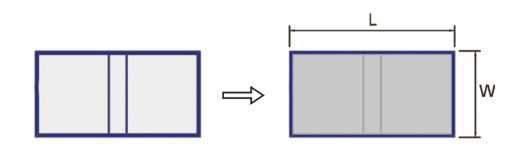

| 4 | Finished product size (W×L) | MAX: 540×1000mm MIN: 100×200mm |
| 5 | Max quantity of cardboard | 1pieces |
| 6 | Precision | ±0.50mm |
| 7 | Production speed | <=25sheets/min |
| 8 | Motor power | 4kw/380v 3phase |
| 9 | Heater power | 6kw |
| 10 | Air Supply | 10L/min 0.6Mpa |
| 11 | Machine weight | 2200kg |
| 12 | Machine dimension(L×W×H) | L5600×W1700×H1860mm |
| Prod Model: | FD-AFM540S |
|---|---|
| Automatic Grade: | Automatic Folder Gluer |
| Type: | Casemaker |
