Automatic High-Speed Case Maker for Hardcovers, Book Covers, Rigid Boxes
| Price: | US $ 300000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

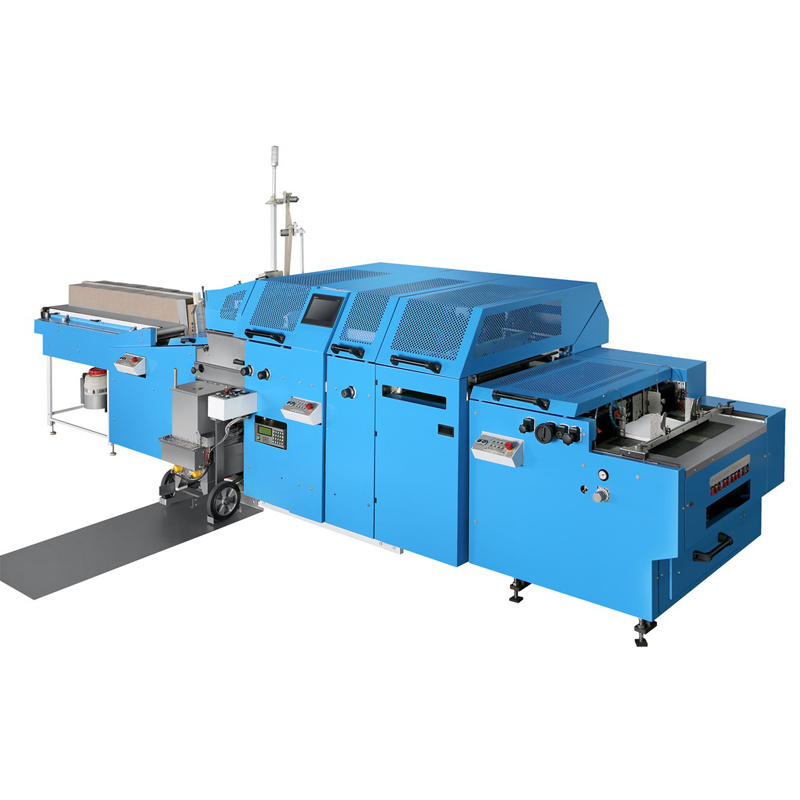

HCM390 Automatic high speed casemaker
Usage:
It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, files etc.
Main Technical Parameters:
Remark:
1. The Max. and Min. sizes of cases are subjected to the size and the quality of the paper.
2. The speed depends on the size of cases
3. We don't provide air compressor.
Usage:
It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, files etc.
Main Technical Parameters:

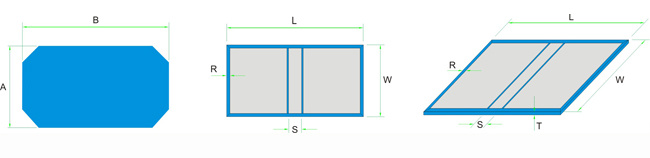

| Model | HCM390 | |
| 1 | Case size(A×B) | MIN: 140×205mm MAX: 390×670mm |
| 2 | Paper size (W×L) | MIN: 130×220mm MAX: 428×728mm |
| 3 | Paper thickness | 100~200g/m2 |
| 4 | Cardboard thickness (T) | 1~4mm |
| 5 | Spine size (S) | 8-90mm |
| 6 | Spine thickness | >200g&1-4mm |
| 7 | Folded paper size(R) | 8~15mm |
| 8 | Max. quantity of cardboard | 3pieces |
| 9 | Precision | ±0.50mm |
| 10 | Production speed | <=65sheets/min |
| 11 | Power | 8kw/380v 3phase |
| 12 | Air supply | 280L/min 0.6Mpa |
| 13 | Machine weight | 5800kg |
| 14 | Machine dimension (L×W×H) | L6200×W3000×H12450mm |
1. The Max. and Min. sizes of cases are subjected to the size and the quality of the paper.
2. The speed depends on the size of cases
3. We don't provide air compressor.
| Prod Model: | HCM390 |
|---|
Wenzhou Zhengrun Machinery Co., Ltd. Established in 1997. The plant has 22, 000 square meters modernized workshop, more than 200 employees. Zhengrun has been introduced the international advanced CNC Machining Centers and NC Lathes which has become the unique manufacturer of rigid box and hardcover machinery in the industry who's equipped with many advanced processing equipment in China. We have rights of self-managed import and export. Our company has been admitted to ISO9001 Quality Management System Certificate. The products have been admitted to Europe CE Certificate. Our products are spreading to over 70 countries and regions, such as Europe, America, Africa, Oceania, etc. The sale network can be found all over the world.
