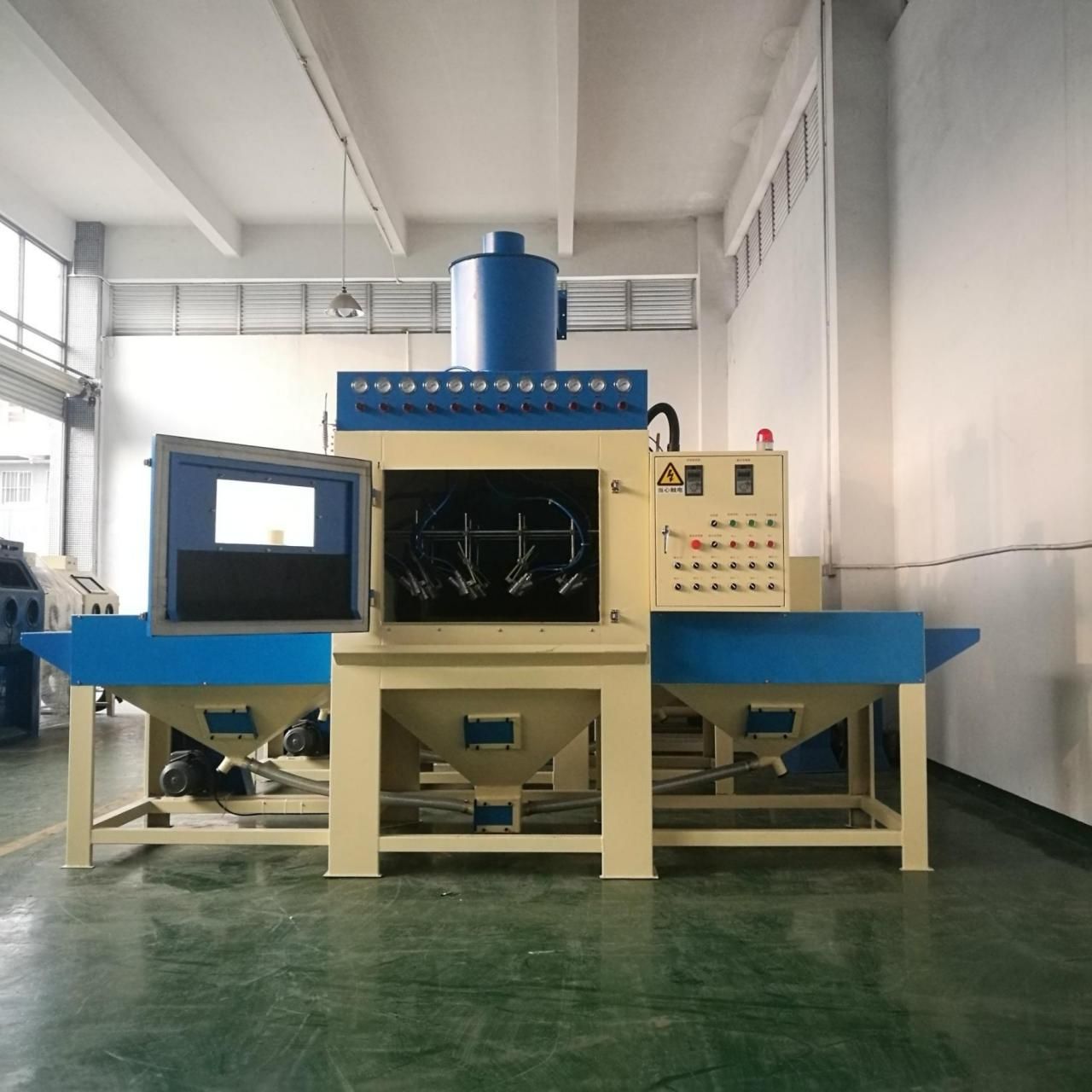

Belt Convery Transmission Sandblasting Cabinet
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |

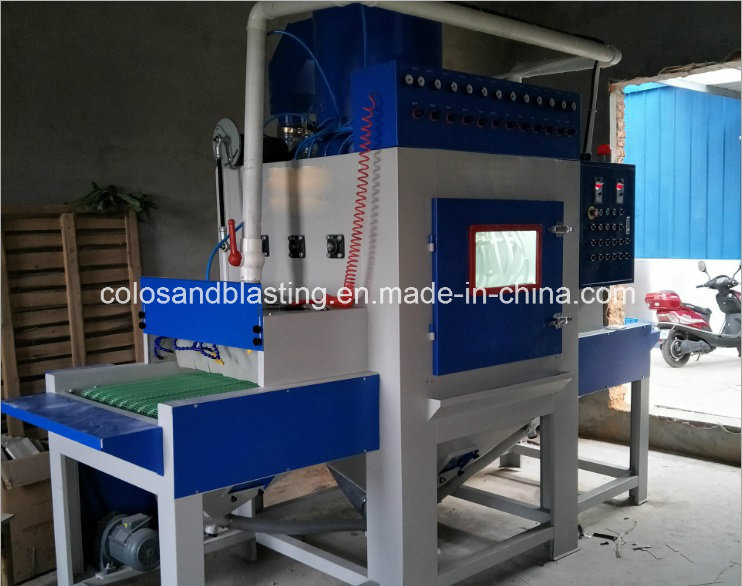

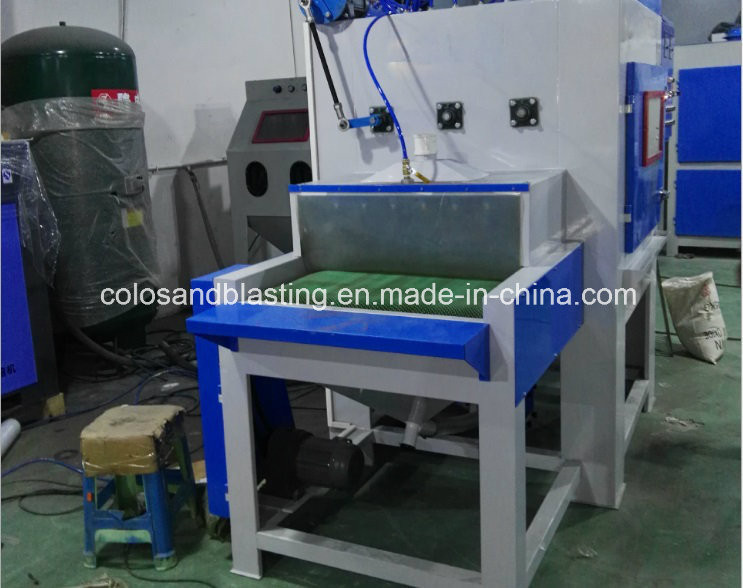

Automatic sandblaster equipment
Scope of application
Glass, tile, iron, aluminum, aluminum, computer host shell, laptop computer shell skeleton, stone and other surface blasting
Product parameters
Mainframe dimensions: 3200 * 2100 * 1850mm
Dust box size: 1200 * 1200 * 1700mm
Separation sand motor: 380V / 5.5KW
Machine lighting: 220V 13W energy-saving lamps
Separator air flow: 8.5m3 / min
Working pressure: 2-7bar (kg / cm2)
Dust removal method: an independent filter-type automatic dust removal system, pulse dust;
Air source requirements: pressure 7BAR (kg / square meter) flow 0.8-1.2 cubic meters / min
Automatic sandblasting machine features:
1. V-belt conveyor using the workpiece, will not have the phenomenon of accumulation of sand, belt speed with sandblasting process requirements can achieve frequency control;
2. The angle of each gun can be adjusted automatically gun rack automatic variable frequency swing and fixed-point sandblasting, flexibility, and wide applicability
3. The use of advanced on the cyclone system configuration, dust separation effect is good, high sandblasting efficiency;
4. Adopt PLC electrical advanced control system, high degree of automation, good stability, low failure rate;
5. Nozzle made of special wear-resistant boron carbide material, long service life;
6. Independent filter-type automatic dust removal system, pulse dust, good ventilation and ventilation; (also optional: bag-type dust)
7. Abrasive waved with a combination of spiral conveying and pneumatic recovery, recovery and stability is good
8. Wet blasting, no dust, environmental protection, sand blasting effect of precision;
9. Suitable for high-quality high-volu
me sandblasting processing;
10. Can be customized according to customer requirements and workpiece requirements

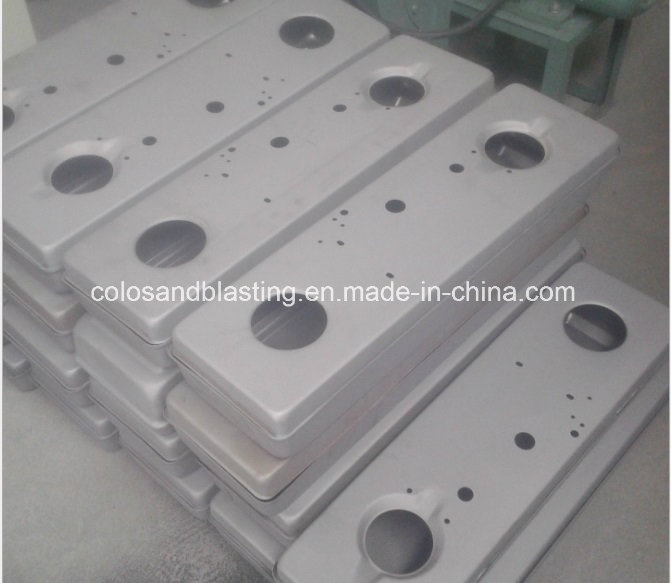

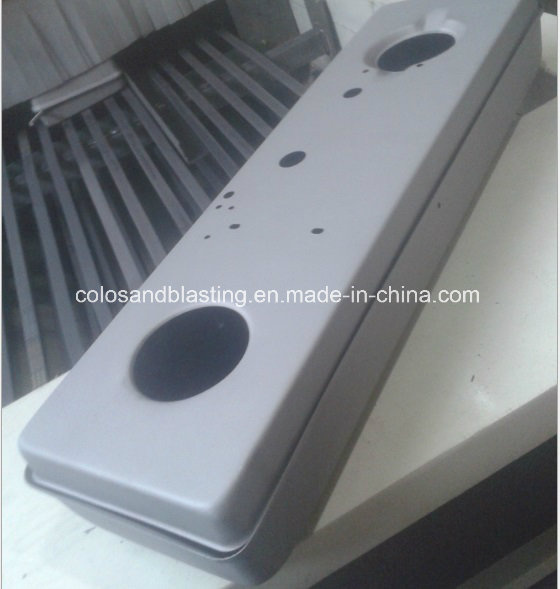

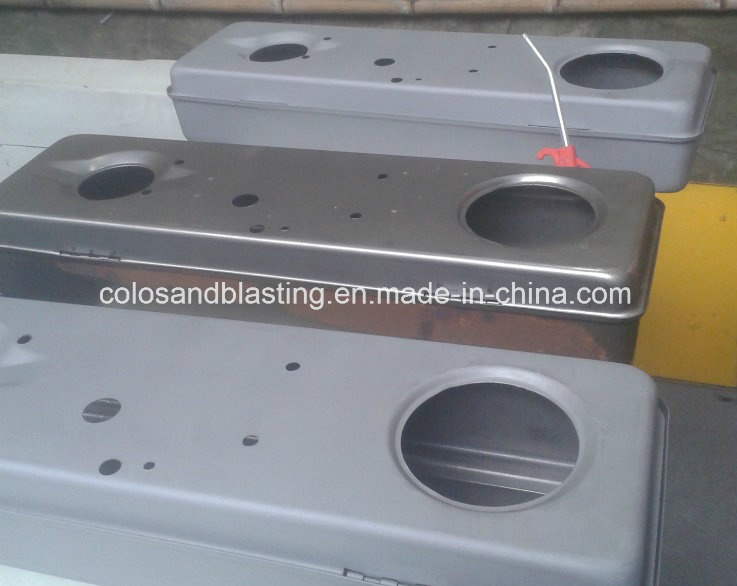

details &Sand blasting effect
Scope of application
Glass, tile, iron, aluminum, aluminum, computer host shell, laptop computer shell skeleton, stone and other surface blasting
Product parameters
Mainframe dimensions: 3200 * 2100 * 1850mm
Dust box size: 1200 * 1200 * 1700mm
Separation sand motor: 380V / 5.5KW
Machine lighting: 220V 13W energy-saving lamps
Separator air flow: 8.5m3 / min
Working pressure: 2-7bar (kg / cm2)
Dust removal method: an independent filter-type automatic dust removal system, pulse dust;
Air source requirements: pressure 7BAR (kg / square meter) flow 0.8-1.2 cubic meters / min
Automatic sandblasting machine features:
1. V-belt conveyor using the workpiece, will not have the phenomenon of accumulation of sand, belt speed with sandblasting process requirements can achieve frequency control;
2. The angle of each gun can be adjusted automatically gun rack automatic variable frequency swing and fixed-point sandblasting, flexibility, and wide applicability
3. The use of advanced on the cyclone system configuration, dust separation effect is good, high sandblasting efficiency;
4. Adopt PLC electrical advanced control system, high degree of automation, good stability, low failure rate;
5. Nozzle made of special wear-resistant boron carbide material, long service life;
6. Independent filter-type automatic dust removal system, pulse dust, good ventilation and ventilation; (also optional: bag-type dust)
7. Abrasive waved with a combination of spiral conveying and pneumatic recovery, recovery and stability is good
8. Wet blasting, no dust, environmental protection, sand blasting effect of precision;
9. Suitable for high-quality high-volu
me sandblasting processing;
10. Can be customized according to customer requirements and workpiece requirements
details &Sand blasting effect
