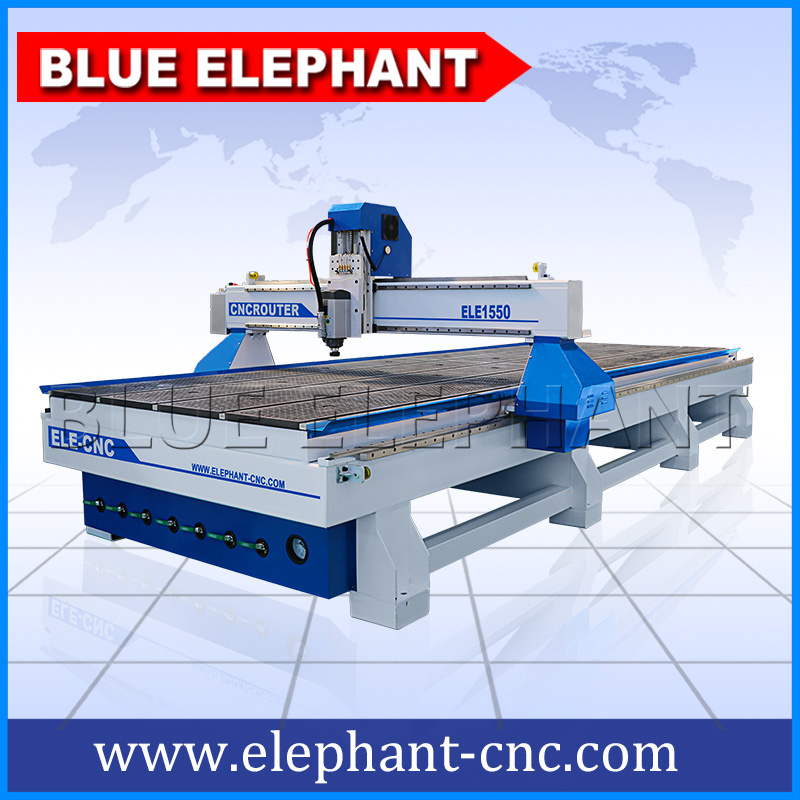

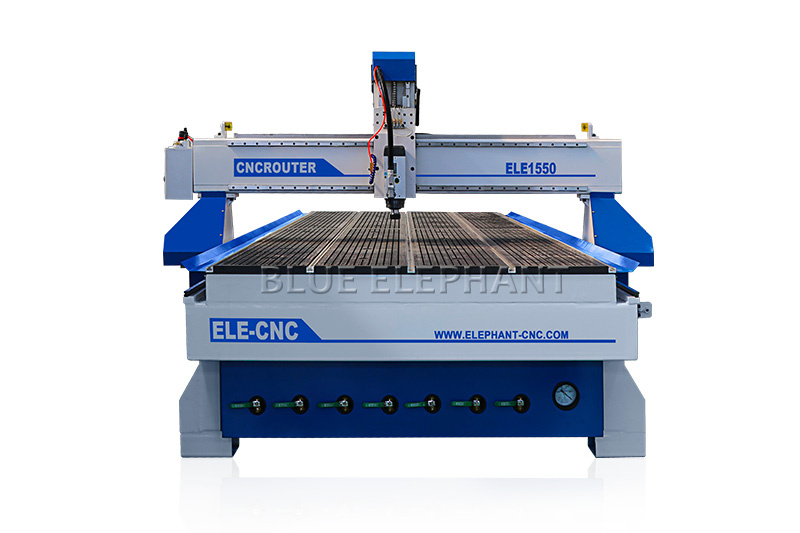

Blue Elephant MDF Cutting Machine Ele1550 CNC Router Aluminium Composite Panel Carving
| Price: | US $ 10000-13800/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
Blue Elephant Professional Manufacturer Large MDF Cutting Machine ele1550 CNC Router Aluminium Composite Panel Carving
Samples:
Packaging
Features
- 1500x5000x200mm effective working area
- Italy HSD 4.5KW Air cooling spindle, 24000RPM
- Taiwan DELTA 5.5KW inverter
- FL118 bigger stepper motor and YAKO2811 drivers
- RichAuto DSPA11 handle controller with USB port
- T-slot and vacuum working table
- 20# ABBA linear guide and rails and Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
- Japan OMRON limit switch for X, Y, Z axis
- Double bags dust collector with CE Certificate
- 4kw germany becker vacuum pump
- Artcam 2012 software for free
- Manual Lubrication system
- Manual tool sensor calibration
- Working voltage: 380V/50HZ/3PH
Advantages
- Popular design: Industrial class square tube strong machine bed and gantry
- Simple operation: lots of customer choose to use RichAuto DSPA11 control system, which support offline operation even though meet power off
- Strong powerful adsorbability: t-slot and vacuum table with 6 zones
- Customized: large table size can be customized according to your materials size
Technical parameters
Description | Parameter |
X,Y,Z Working Area | 1500x5000x200mm |
Table Surface | T-slot and vacuum working table |
Structure | Industrial class square tube strong structure |
X, Y Structure | 20#Taiwan ABBA Linear guide and helical rack |
Z Structure | Taiwan TBI Ball screw |
X,Y Resolution | <0.01mm |
Spindle Power | 4.5KW Italy HSD air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | FL118 stepper motor and YAKO2811 drive |
Inverter | 5.5 kw Taiwan Delta Inverter |
Control System | DSP A11 handle controller with USB port |
Lubrication | Manual Lubrication system |
Tool sensor | Manual tool sensor calibration |
Dust Collector | dust collector with 2 pockets |
Vacuum pump | 4kw germany becker vacuum pump |
Control box | Single Control box |
Option | Oil mist cooling system |
Limit switch | Japan OMRON limit switch for X, Y, Z axis
|
Command Language | G Code |
Computer Interface | USB |
Collet | ER32 |
Software Compatibility | ARTCAM 2012 software, (Option: Artcam Type3 Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Optional Parts
1.1 Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.
1.2 Spindle cover and Dust collector
They are designed for human operation protection and promise clean table surface, save maintenance time for you.
1.3 Pump
We can provide vacuum pump or water circulation pump for your choice.
1.4 Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.
We can also provide other optional parts according to your needs.
Product Details:

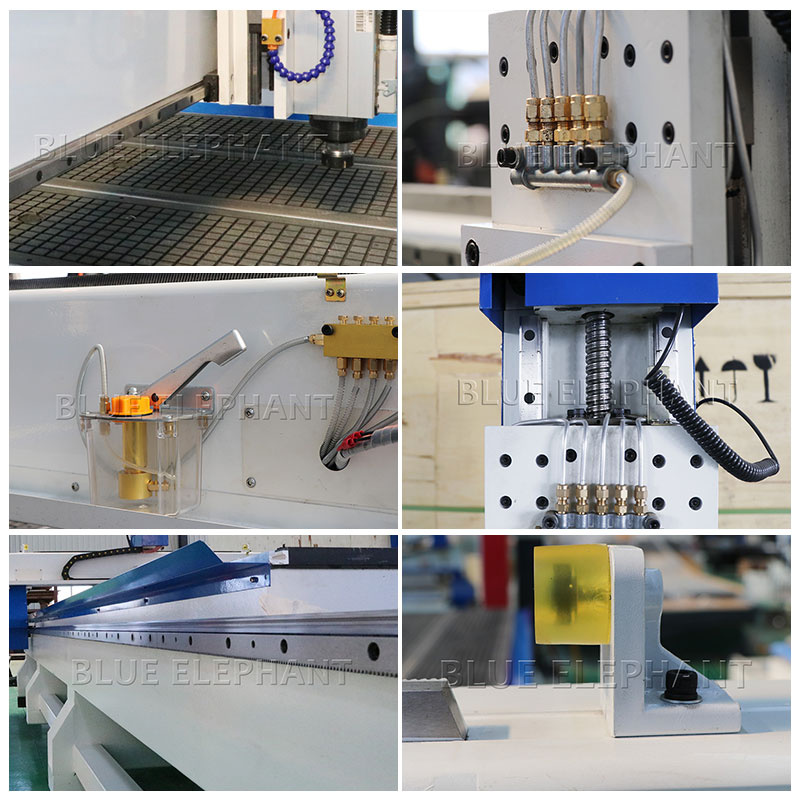

| 1. Spindle | Italy HSD Air Cooling Spindle |
| 2. Inverter | Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control. |
| 3. Motor and Drive | Stepper Motor FL118 stepper motor, big power. YAKO 2608 Drive and Leadshine 860H Drive can run with smaller noise, lower heating, smoother movement and have better performances at higher speed |
| 4. Control system | DSP A11 Control System |
| 5. Transmission system | Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN or ABBA Linear Rail |
| 6. Working table | T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place. |

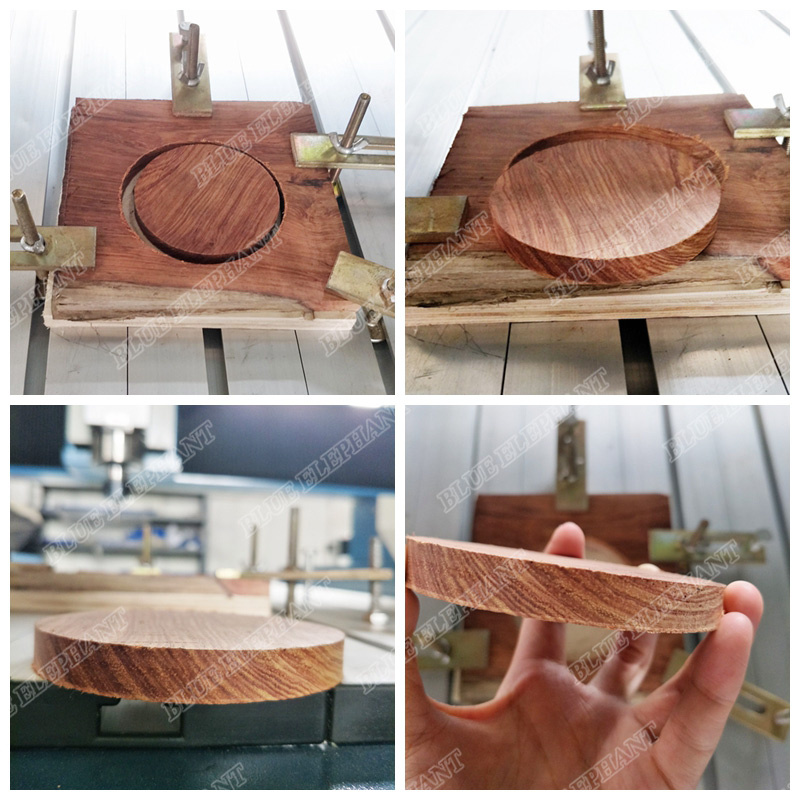

Samples:
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Feedback:Packaging
1. Delivery and Package:
Generally we will take care of your machine packages well like picture show.
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong plywood case package according to your needs.
2. Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
3. Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
4. After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc

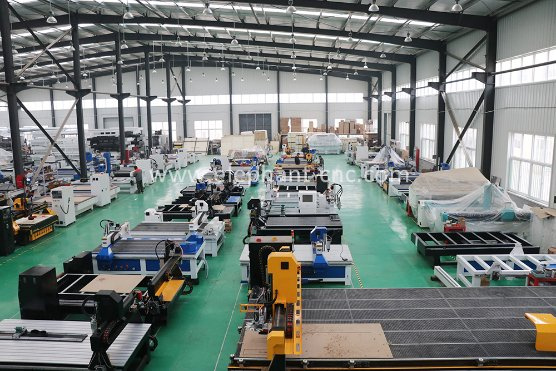

Welcome to our factory:- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: | ELE1550 |
|---|---|
| Voltage: | AC380V/50Hz |
| Power(W): | According to Your Order |
| Weight: | 1500kg |
| Control System: | Richauto Dspa11 Handle Controller with USB Port |
| Spindle: | Italy Hsd 4.5kw Air Cooling Spindle, 24000rpm |
| Motor And Drive: | FL118 Bigger Stepper Motor and Yako2811 Drivers |
| Working Area: | 1500X5000X200mm |
| Transmission: | Taiwan Tbi Ball Screw and Taiwan Hiwin Linear Guid |
| Software: | Ucancam / Artcam/Type3 |
| Inverter: | 4.5kw Taiwan Delta Inverter |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
